Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | XKP560 Rubber Crushing Mill,800mm Length Rubber Crushing Mill,75KW Waste Tire Cracker Mill |
||

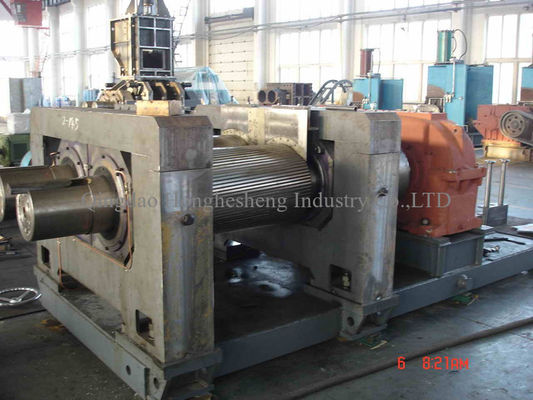

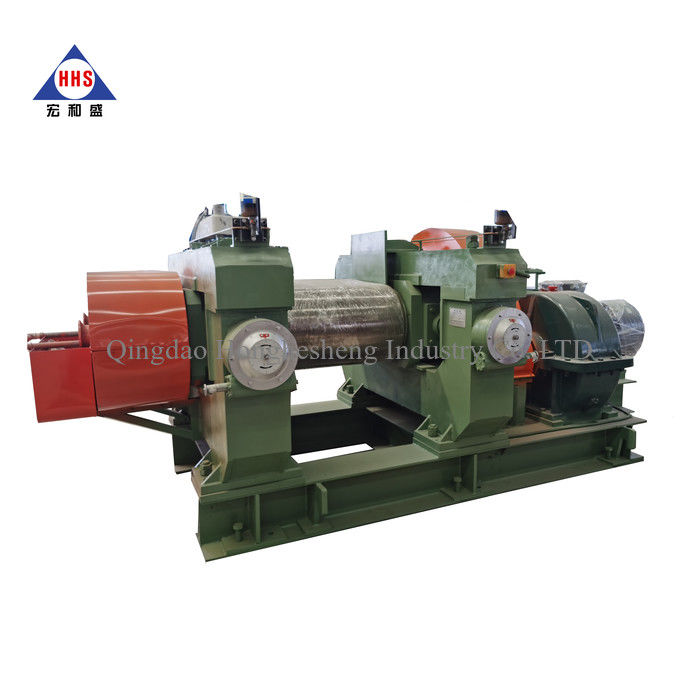

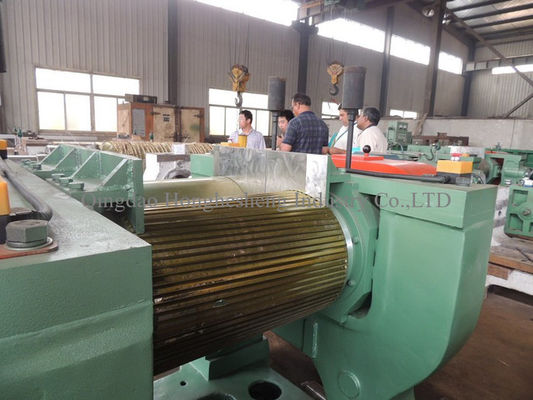

XKP560 Type Waste Tyre Cracker / Rubber Crushing Mill/Waste Tire Cracker Mill
product Introduction
Usage: the machine is mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.
Structures:It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.
features:
1. The roll is made of chilled cast iron of vanadium and titanium alloy. So the surface is hard andwearable. The internal processing can make the temperature of the roll surface well-proportioned.
2. The machine is equipped with overload protection device and emergency braking device. Thetransmission system adopts either hard booth flank dual axis reducer or new hard tooth flank planet reducer which has compact structure, low noise and high efficiency
3. The base of the machine is a complete piece of frame. That make installation more convenient.
4. Feeding is through the turning cylinder mould, so large piece of rubber can be repeatedly cracked.
5.We also can according to customers' requirement, and design the non-standard model of tyre cracker mill
Parameter of the Rubber Cracker mill:
| Parameters/version | XKP-560 |
| Front roll diameter | 560 |
| Back roll diameter | 510 |
| Roll length | 800 |
| Front roll surface speed (m/min) | 25.56 |
| Friction ratio | 1:1.30 |
| Max. nip | 8 |
| Feeding capacity per (kg) |
1500 |
| Power(kw) | 75 |
| Size(l*w*h) | 5064*2284*1978 |
| Weight(kg) | 19000 |
