Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50 | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 55KW |
| Weight: | 23000KG | Dimension(l*w*h): | 5405X1740X1790mm |
| Warranty: | 2 Year | Condition: | New |
| High Light: | 450V rubber open mill,24.2m/min rubber open mill,Used two roll mixing mill |
||
Second Hand & Used Rubber Open Two Roll Mixing Mill Machine
Rubber Mixing Mill
1. Bush:Nylon bush,ball bearing bush
2. Gear box:hardened and planet gear box
3. Cooling system:inner water cooling
Chilled Cast Iron rollers for Rbuuer Mixing Mill Machine Features
1. terials of Rolls :Cast iron alloy (LTG-H), after quenching and precision processing,hardness HS,68~75.
2. in bearing : Dual-listed rolling bearings, which reduces energy consumption by 30%.
3. ll gap adjustment : electric automatic
4. tor: Frequency control of motor speed
5. ducer: Airtight leaching oil type, ZSYE reducer (There are a variety of choice, the price is different), Almost no noise, safety
The use of Rbuuer Mixing Mill Machine safety
1. Electrical protection: When the equipment overloading, equipment parking.
2. roller safety device: when the device instantly over the pressure of the roller, the insurance for the safety film sit automatically paragraph crack. To protect the rollers and other major parts (XK-400 is no such device) to make the machine run more reliable and maintenance costs to a minimum.
3. machine equipped with a brake device, in case of emergency, pull the safety lever to immediately brake, thereby reducing the occurrence of the accident.
The technical parameters of Rubber Mixing Mill are as follows
| Type and sepecification | diameter of roller | Length of working face | linear velocity of front foller | ration of front roller to rear roller | quantityof feeding per time | motor power | L*W*H | weight |
| mm | mm | m/min | KW | t | ||||
| XK-250 | 250 | 620 | 12.53 | 01:01.3 | 10-15 | 15 | 2.8x1.12x1.55 | 3.5 |
| XK-360 | 360 | 900 | 16.25 | 01:01.3 | 20-25 | 30 | 4.1x1.77x1.75 | 6.5 |
| XK-400 | 400 | 1000 | 18 | 01:01.3 | 30-35 | 37/45 | 4.4x1.85x1.87 | ≈8 |
| XK-450 | 450 | 1200 | 24.2 | 01:01.3 | 30-50 | 55 | 4.8x1.9x1.77 | ≈11 |
| XK-550B | 550 | 1500 | 29.5 | 01:01.3 | 50-65 | 90 | 5.3x2.1x1.9 | ≈20 |
Rbuuer Mixing Mill Machine Usage
This machine is used for mixing the natural rubber, reckaimed rubber mixing powder tablet and mixing after desulfurization. And it is suitable for reclaimed rubber plant, conveyor facotry, rubber products factory, shoe factory, cable plant, seals and other rubber related industries.

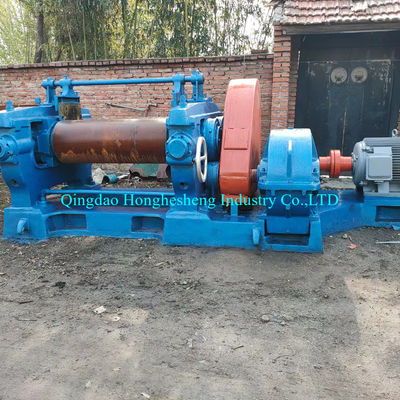

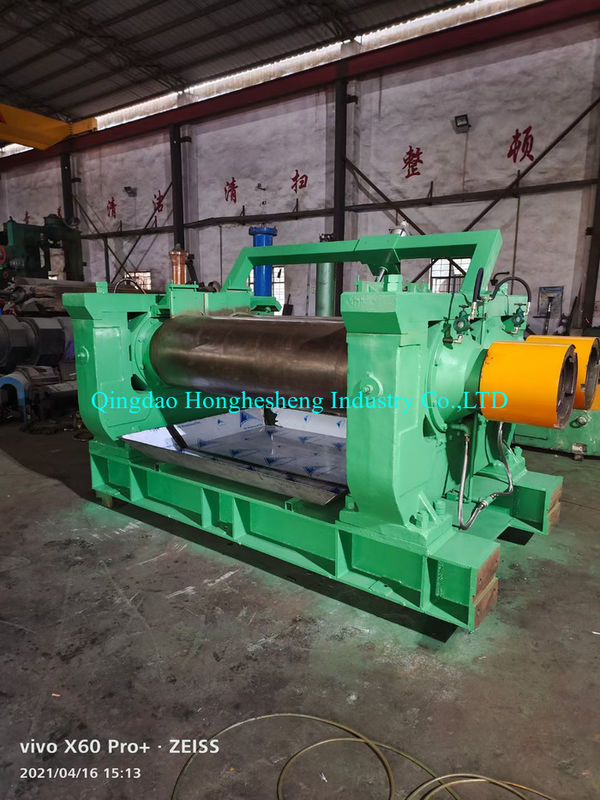

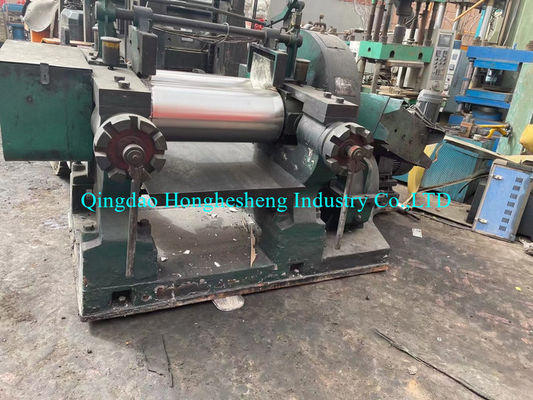

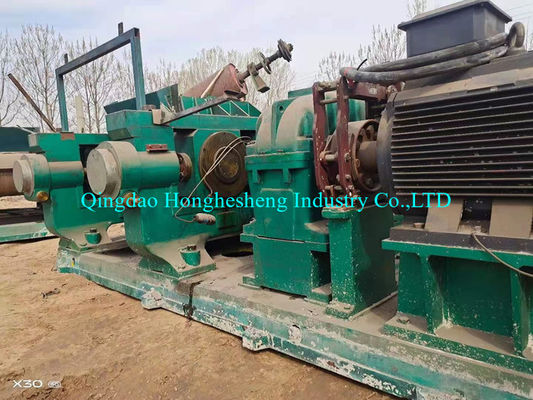

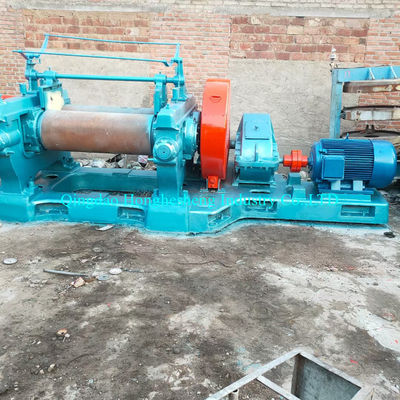

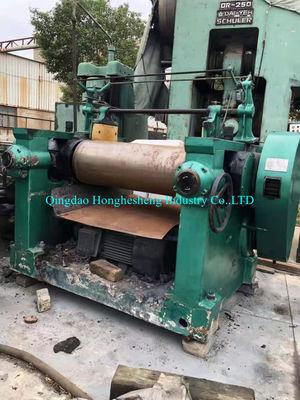

Rubber Mixing Mill large pictures and roller
Application : The mill is used for rubber plasticating, mixing, warming and sheeting.
General design:
1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.
2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.
Rubber mixing mill machine Main features:
1. The roller adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof with long service life. The internal cavity is processed to make temperature well proportioned to the roller surface.
2. The speed reducer is the hard-tooth surface gear reducer of class 4 precision, which is durable and with low noise.
3. The machine is also equipped with an emergency brake device. When an emergency arises, just push the emergency stop button, the machine will stop immediately. It is safe and reliable.
4. The machine is equipped with an overload protection device to prevent the main components from being damaged.
5. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
6. The base frame is a whole framework, which is convenient for installation.
7. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
