Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 55 L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 75KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 7200KG | Dimension(l*w*h): | 3290*1950*3020mm |
| High Light: | Reclaimed Rubber Dispersion Kneader 55L,Natural Rubber Dispersion Kneader 380V,Synthetic Rubber kneader 50HZ |
||
Dispersion Kneader For Natural Rubber, Synthetic Rubber, Reclaimed Rubber
Parameter of Popular Selling High Quality Rubber Kneader Machine/Rubber Banbury Kneader Mixer/Rubber Mixing Machine.
| Parameter/model | X(S)N-3 | X(S)N-10 | X(S)N-20 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-110 | X(S)N-150 | X(S)N-200 |
| Total volume (L) | 8 | 25 | 45 | 80 | 125 | 175 | 250 | 325 | 440 |
| Working volume (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving motor power (KW) | 7.5 | 18.5 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting motor power (KW) | 0.55 | 1.5 | 1.5 | 2.2 | 2.2 | 4.0 | 7.5 | 15 | 7.5 |
| Tilting angle | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Rotor speed (RPM) | 32/25 | 32/25 | 32/26.5 | 32/24.5 | 32/26 | 32/26 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of compressed air (MPA) | 0.7-0.9 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Capacity of compressed air (m³/min) | ≥0.3 | ≥0. 5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.3 | ≥1.6 | ≥2.0 | ≥2.0 |
| Pressure of cooling water (Mpa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| weight (kg) | 1038 | 3000 | 4437 | 6500 | 7850 | 10230 | 14200 | 19500 | 22500 |
C. Advantages:
1. Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2. Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3. No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4. Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5. Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6. Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.

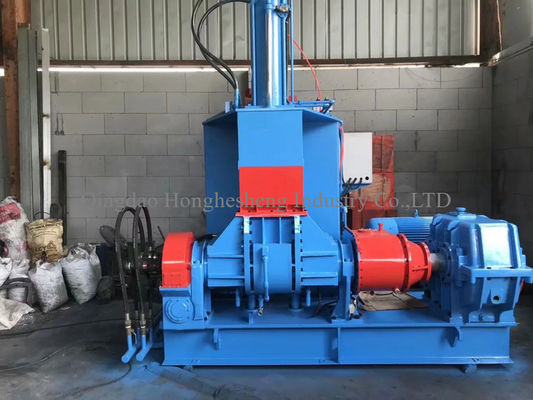

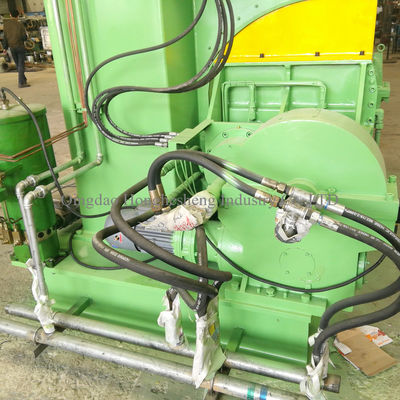

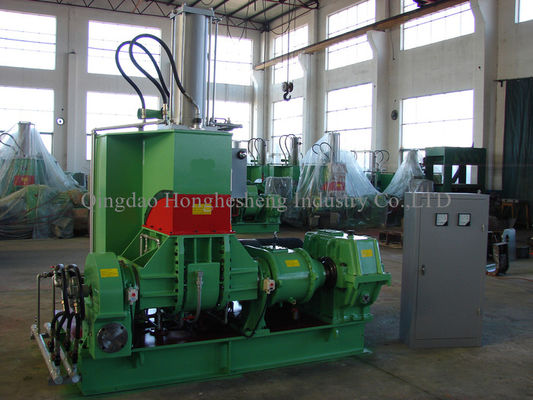

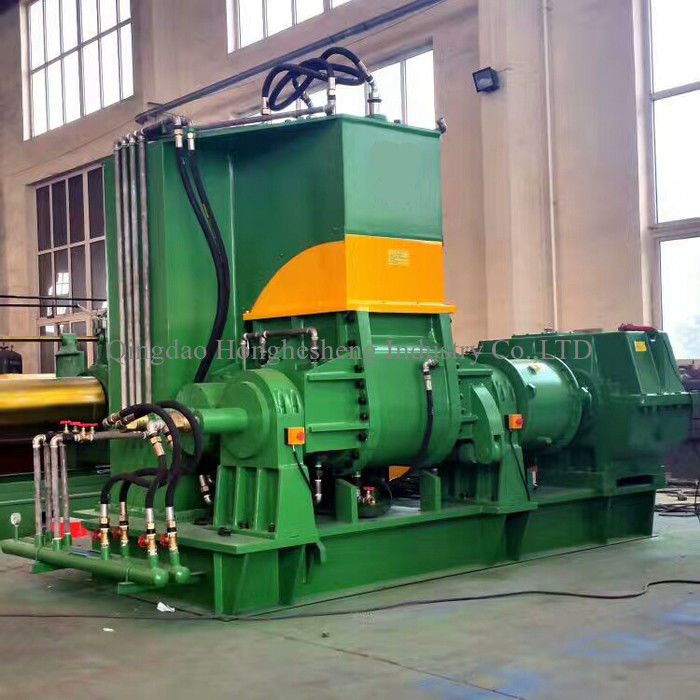

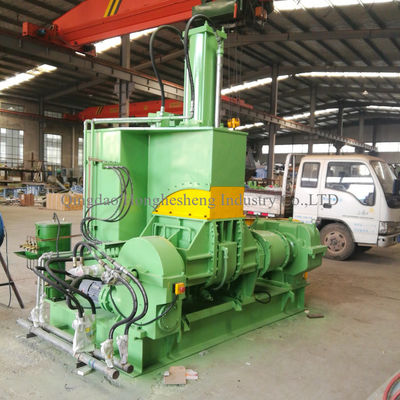

Samples of Popular Selling High Quality Rubber Kneader Machine/Rubber Banbury Kneader Mixer/Rubber Mixing Machine.
