Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 75 L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 110KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 9500KG | Dimension(l*w*h): | 3600*2280*2650mm |
| High Light: | 220KW rubber dispersion kneader,150L rubber dispersion kneader,kneader mixer rubber 140 Tilting Angle |
||
Second Hand Renewed Rubber Machine Banbury Rubber Dispersion Kneader Mixer
Main Application:
Rubber & TPR,EVA,Rubber sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord, Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile Electric Rubber Parts, Chemical Industry Compounds.
Features for rubber kneader :
1. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellentstable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.
3. Surface where is contacted with the materials are all platedwith hard chromium and polished, which is corrosion-resistantand wear-resistant.
4. Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.
5. Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the front rotors to discharge and is easy for changingpigments and cleaning the chamber.
6. Programmable logic controller(PLC) is adopted in theelectric-control system, which has reliable control function andalarm function, and interlock safety-protection function and itis provided with serial interface of net.
product Parameters
| Model |
X(S)N- 10X32 |
X(S)N- 20X32 |
X(S)N- 35X30 |
X(S)N- 55X30 |
X(S)N- 75X30 |
X(S)N- 110x30 |
X(S)N- 150x30 |
|
Total volume of mixing chamber |
25L | 45L | 75L | 125L | 180L | 250L | 325L |
|
Working volume of mixing chamber |
10L | 20L | 35L | 55L | 75L | 110L | 150L |
|
Driving motor power |
15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
|
Tilting motor power |
1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW |
| Tilting angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
|
Rotational speed of the rotor (front/rear) |
32/23.5 r/min |
32/25 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
|
Pressure of compressed air |
0.5-0.8 MPa |
0.5-0.8MPa | 0.5-0.8MPa | 0.6-0.8MPa | 0.6-08MPa | 0.6-0.8MPa | 0.6-0.8MPa |
|
Capacity of compressed air |
≥0.5m³/min | ≥0.7m³/min | ≥0.9m³/min | ≥1.0m³/min | ≥1.0m³/min | ≥1.5m³/min | ≥2.0m³/min |
|
Pressure of cooling water |
0.2-0.4 MPa |
0.2-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
|
Pressure of heating steam (plastic mixing) |
0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
|
Overall dimension |
2580X1300 X2280mm |
2630X1520 X2550mm |
3200X1900 X2950mm |
3280X1930 X3070mm |
3330X2620 X3340mm |
3930X3000 X3660mm |
4200X3300 X3900mm |
| Weight | 3300Kg | 4500Kg | 6500Kg | 7800Kg | 10500Kg | 14500Kg | 19500 |

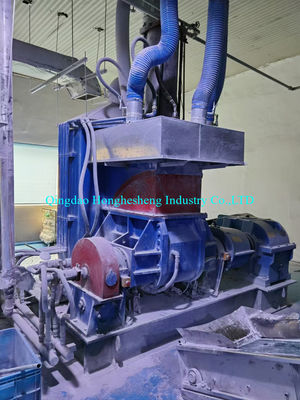

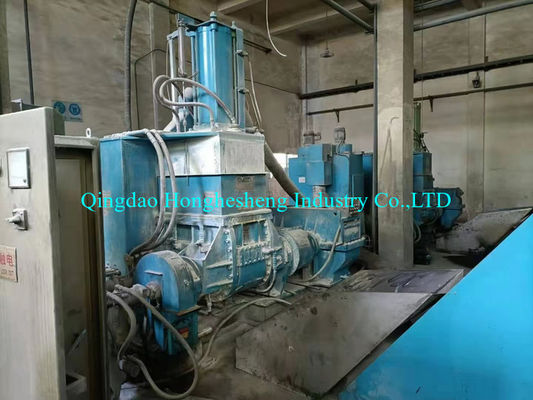

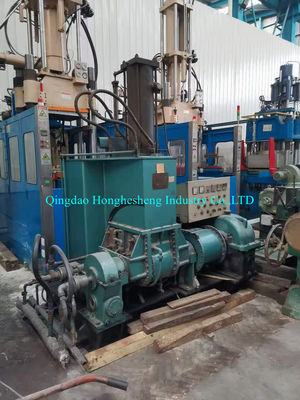

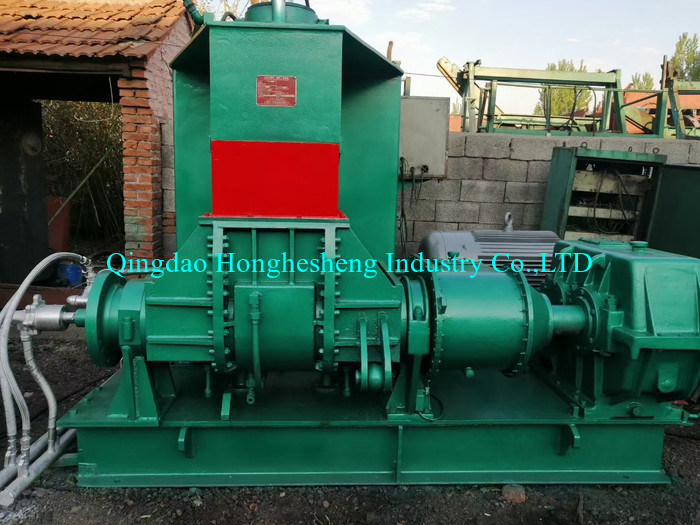

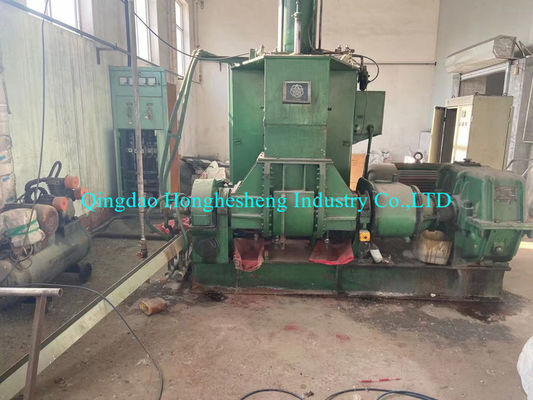

D.kneader Machine photos:
