Product Details:
|
| Type: | Vulcanizer | ||
|---|---|---|---|
| High Light: | 600T Hot Tire Vulcanizing Press,4 Layer Tire Vulcanizing Press,Jaw Type Tyre Tube Making Machine |
||
Rubber Tube Vulcanizing Tyre Making Machine
1. Structure:
♥ hot sale hydraulic cold press machine for plastic bassin is frame structure, including main machine, hydraulic station, electric controlling cabinet
♥Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
2. Operation:
♦Being a frame structure and upward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger
♦The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure
♦This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrade ability, the cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose
♦By moving the operational handle of the control value to the two different positions, the heating plate can open and close
♦ It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation
4 hot sale hydraulic cold press machine for plastic bassin Main technical specifations:
Parameter
| Product | XLB-Q3600*410*4 tyre tread vulcanizing machine | |
| Total pressure | MN | 6.00 (600T) |
| Hot plate size | MM | 3600*410*60 |
| Plate clearance | MM | 200 |
| Piston stroke | MM | 600 |
| Workig layer | layer | 4 |
| Piston number | set | 6 |
| Piston diameter | MM | 300 |

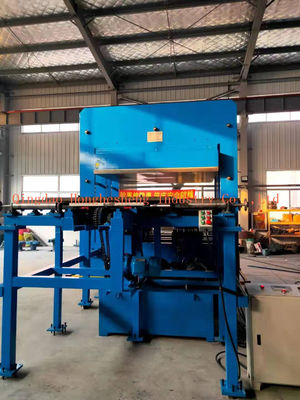

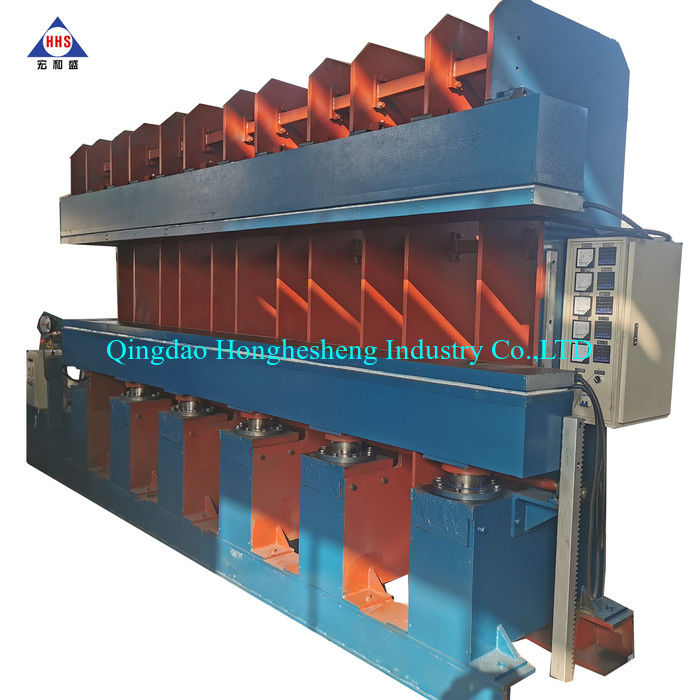

| Structure form | Jaw type (As picture) | |
| Heating mode | Oil or steam heating | |
| Operation mode | Automatic PLC system. | |
| Motor power | kw | 17kw + 5.5kw |
| Open speed | MM/S | 12-15 |
| Close speed | MM/S | 12-20 |
| Worktable pressure | Mpa |
4.06 (40.6kg/m2) |
