50kg Automatic Batching System Powder Dosing Weighing System

50kg Automatic Batching System Powder Dosing Weighing System
50kg Automatic Batching System Powder Dosing Weighing System 50kg Automatic Batching System Powder Dosing Weighing System

Large Image :  50kg Automatic Batching System Powder Dosing Weighing System

Product Details:
Place of Origin: CHINA
Brand Name: honghesheng
Certification: CE ISO
Model Number: 0-50kg
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:15000-90000 /SET
Packaging Details: wood package /20-40 container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 sets/month

50kg Automatic Batching System Powder Dosing Weighing System

Description
High Light:

200 bags /h Automatic Batching System

,

50kg Automatic Batching System

,

Powder Dosing Weighing System

Automatic Powder Dosing Batching Weighing System

INTRODUCTION

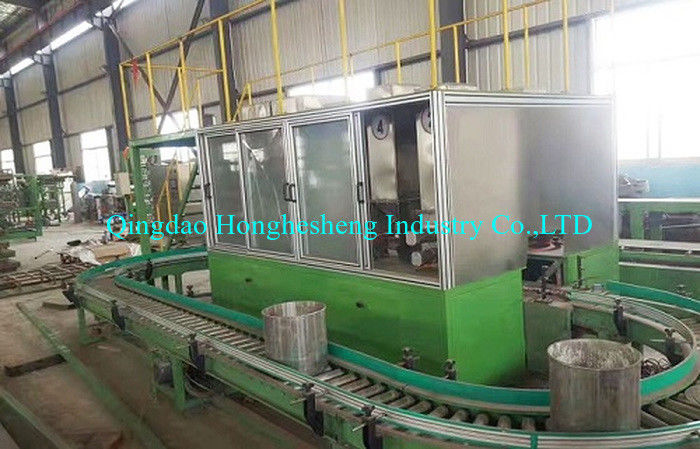

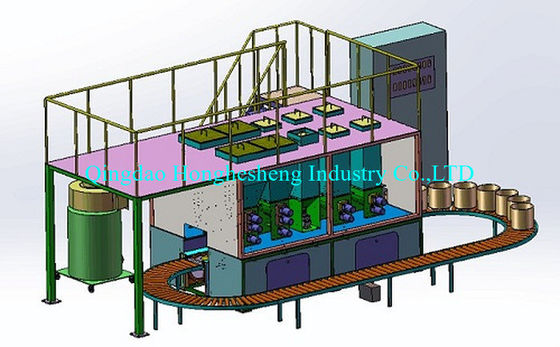

The weighting system is designed for the small tyre factory to weight the carbon black, chemical and so on powder. It can increase the weighting accuracy, improve the working environment of labors.
The machine can be suit to weight ash calcium power,water reducer, dry powder mortar, fodder, mineral salt,industry salt, lime powder, gypsum powder,buggy, faecula and so on other powder goods. It can be used to pack above powder goods.

feature:

High weighting accuracy,triple tiers screwing feeding speed, frequency control.

Easy to operate,to set the parameters on touch screen.

Compact structure, easy to install. Connecting the power and air source, the machine can be run.

Double opening, easy to clean and maintain.

Unique induce wind designing and impulse air blowing can solve the powder outleakage and connecting.

TECHNICAL PARAMETERS

1, MODEL: DCS-50WF

2. APPLICATIVE MATERIAL: POWDER

3, Rated weight: 0-50kg

4, Weighting speed: 180~200 bags /h

5, Display resolution: 10g

6, Weighting accuracy: static≤±0.1% dynamic≤±0.2%

7, Air source: pressure:0.6MP consumption: 0.5m3/h

8, Power source: AC380V/50HZ

9, Power : 0.75kw

10, Height: 4500mm

11, Temperature scope: -10~40ºC

12, Relative humidity: ≤90%RH



50kg Automatic Batching System Powder Dosing Weighing System 050kg Automatic Batching System Powder Dosing Weighing System 150kg Automatic Batching System Powder Dosing Weighing System 250kg Automatic Batching System Powder Dosing Weighing System 3



50kg Automatic Batching System Powder Dosing Weighing System 4

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line
,tyre production line, vulcanizing press, waste tyre recycling plant…

welcome to visit our factory

50kg Automatic Batching System Powder Dosing Weighing System 5

50kg Automatic Batching System Powder Dosing Weighing System 650kg Automatic Batching System Powder Dosing Weighing System 750kg Automatic Batching System Powder Dosing Weighing System 850kg Automatic Batching System Powder Dosing Weighing System 9



Q: Are you a manufacturer or traiding company?

A: We are the manufacturer. We have our own plant,worker and techniques research developing department.



2 .Q: Where is your factory located? How can I visit there?

A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.

Nearest airport is Qingdao liuting international airport

Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.



3. Q: What are your hot sale machine?

A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.



4. Q: How does your factory do regarding quality control?

A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.



5 .Q: Are the techncal parameter is fixed?

A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
