Product Details:
|
| High Light: | 4.5m3 Dynamic Desulfurization Tank,1.8Mpa Dynamic Desulfurization Tank,Dynamic Desulfurization Reclaimed Rubber Machine |
||
|---|---|---|---|

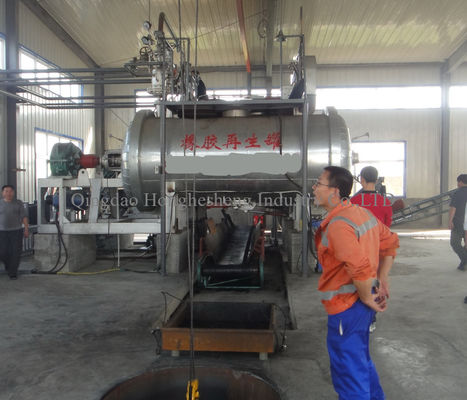

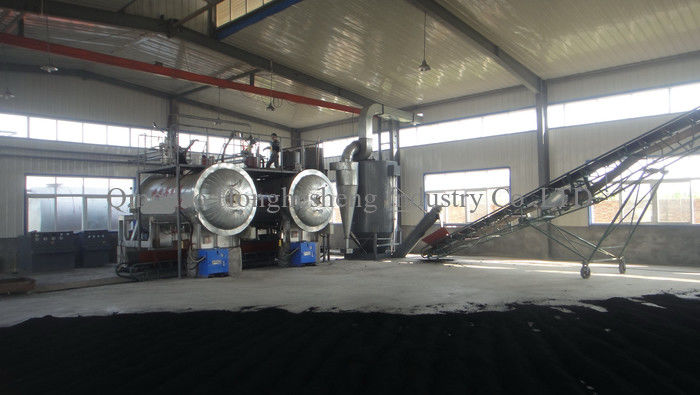

New Type Dynamic Desulfurization Tank
1-Technical details of the machine:
devulcanizer employs a hydraulic system to open, close and lock up the feeding door and the discharging door.
The devulcanizer adopts a new technology of devulcanizition. Compared with tradtional devulcanizing equipments, it is advanced in the following points.
Compared with traditional devulcanizing equipments, it is advanced in the following points:
1) The reclaim powder does not need to be ground so fine;
2) Plastifiers, reclaiming agents and rubber powder can be put together into the devulcanizer;
3) No polluted water will be let out during the devulcanization;
4) The quality is higher;
5) The devulcanizing vessel can be automatically open and close.
2-Technical Parameter:
| Parameter Content |
Model | ||||
| ZT-4.5R | ZT-6R | ZT-8R | |||
| Design Pressure | 2.1Mpa | 2.1Mpa | 2.1Mpa | ||
| Working Pressure | 1.8Mpa | 1.8Mpa | 1.8Mpa | ||
| Design Temperature | 3000C | 3000C | 3000C | ||
| Working Temperature | 2090C | 2090C | 2090C | ||
| Active Volume | 4.5m3 | 6m3 | 8m3 | ||
| Rotate Speed of Blender | 16r/min | 15r/min | 15r/min | ||
| Jacket Volume | 1.04 m3 | 1.6 m3 | 1.8 m3 | ||
| Design Pressuer of Jacket | 0.5Mpa | 0.5Mpa | 0.5Mpa | ||
| Working Pressure of Jacket | 0.3Mpa | 0.4Mpa | 0.4Mpa | ||
| Heating Method | Heat conduction oil | ||||
| Hear Exchange Area | 12.55 m2 | 15 m2 | 17 m2 | ||
| Parameter Content |
Model | ||
| ZT-4.5R | ZT-6R | ZT-8R | |
| Design Pressure | 3.0Mpa | 3.0Mpa | 3.0Mpa |
| Working Pressure | 2.85Mpa | 2.85Mpa | 2.85Mpa |
| Design Temperature | 3000C | 3000C | 3000C |
| Working Temperature | 2330C | 2330C | 2330C |
| Active Volume | 4.5 m3 | 6 m3 | 8 m3 |
| Rotate Speed of Blender | 16r/min | 15r/min | 15r/min |
| Jacket Volume | 1.04 m3 | 1.6 m3 | 1.8 m3 |
| Design Pressuer of Jacket | 0.5Mpa | 0.5Mpa | 0.5Mpa |
| Working Pressure of Jacket | 0.3Mpa | 0.4Mpa |
0.4Mpa |
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
Q: Are you a manufacturer or traiding company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
6 How to send us your enquiry? Kindly tell me answer
-1 what is your EVA sheet width ?
-2 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently
