Product Details:
|
Place Of Origin: | Shandong, China | Condition: | New |
---|---|---|---|
Video Outgoing-ins: | Provided | Warranty: | 3 Years |
Core Components: | PLC, Engine, Gearbox, Motor, Gear, Pump | Dimension(L*W*H): | 3500*3200*2800mm |
Certification: | ISO9001:2008/CE | Weight (KG):: | 8000 Kg |
Applicable Industries: | Rubber Machine | Roll Material: | Chilled Cast Iron |
High Light: | 2 3 4 Roll Rubber Calender Machine,250×720 Rubber Calender Machine,360×1120 4 Roll Calender |
Rubber Sheet Calendering Mill Cord-Rubberizing Machine 2 Roll 3 Roll 4 Roll Calender
1. Introduction
Two roll rubber calender is used for calendering of rubber or plastics, fabric fraction and coating, sheeting and composite of rubber or plastics.
2. Parameter
THREE ROLL RUBBER CALENDER | |||||||
Parameter/model | XY-3-250 | XY-3-360 | XY-3-400 | XY-3-450 | XY-3-560 | XY-3-610 | XY-3-810 |
(mm) Roll | Φ250×720 | Φ360×1120 | Φ400×1200 | Φ450×1400 | Φ560x1650 | Φ610×1730 | Φ810×2130 |
Ratio of rubber speed | 1:1:1 | 1:1:1 | 1:1:1 | 1:1.5:1 | 1:1.5:1 | 1:1.4:1 | 1:1:1 |
(m/min) Middle Roll speed | 2-15.9 | 3-20 | 3-26 | 2.62-26.2 | 3-30 | 5.4-54 | 3-30 |
(mm) Nip adjust range | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 |
KW) Motor power | 22 | 45 | 55 | 75 | 110 | 160 | 132x3 |
(kg) Weight | 5500 | 14000 | 18000 | 21000 | 35000 | 42000 | 110000 |

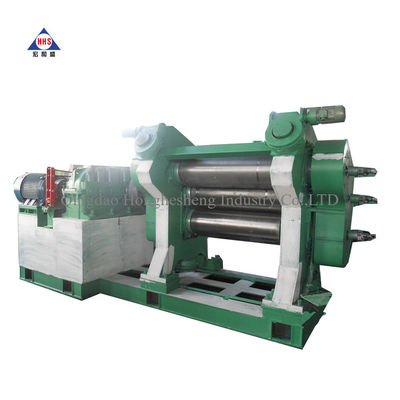

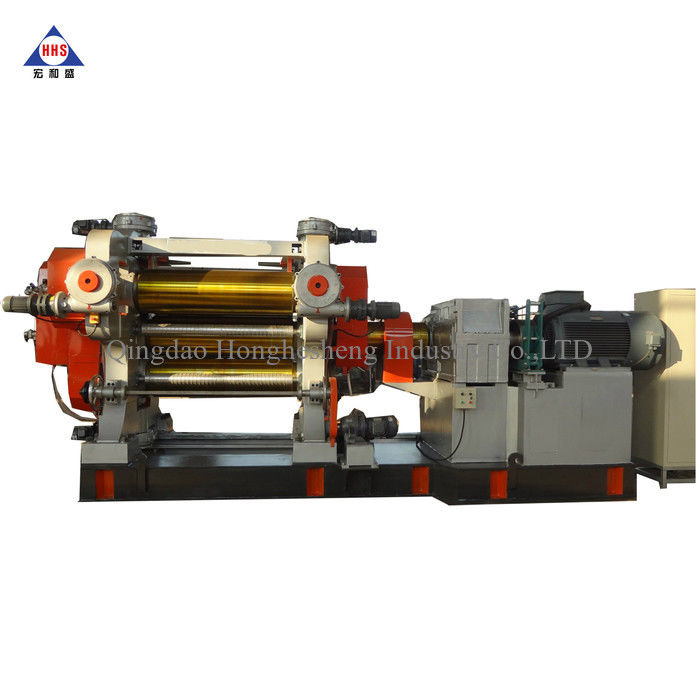

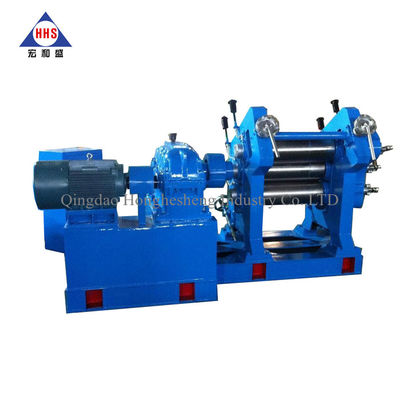

3. Product Display
