660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine

Large Image : 660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HHS
Certification:	CE
Model Number:	XK450

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD5000-40000/SET
Packaging Details:	wood package /20/40GP/HC
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS/MONTH

Contact Now

660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine

Description

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support	Type:	Open Mixing Mill
Roller Hardness:	50~60HRC	Bush:	Nylon Bush,bearing Bush,ball Bearing B
Voltage:	380V,Customer's Request,380V/50HZ,220/380V,AC380V	Power(w):	37kw,4.5KW,20KW,5KW For Lab Two Roll Mill
Weight:	5200kgs,1000kg,2T	Dimension(lwh):	450020001780mm
Warranty:	1 Year	Condition:	New
High Light:	660mm Dia Open Mill Rubber Mixing , 2130mm Length Open Mill Rubber Mixing , 2 Roll Rubber Mixing Mill Machine

Factory Price Rubber Mixing Mill/Open Mixing Mill/Two Roll Mixing Mill

1. Rubber Mixing Mill Machine

Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.

2. Machine features

For the convenience of maintenance and installation and reliable operation, the principal and auxiliary machine adopt wholly cast steel seat mixing.

Oil seal device is set in roll bearings and oil circuit lubrication adopts manual dry oil cup in to keep the lubrication well,

operation convenient and environment clean.

All drive gears are made from cast steel, and of such advantages as high strength material, stable running, high wearability and long working life, etc.

Equipped with emergency brake equipment. When emergency accidents occur, it will brake automatically with reliability and safety.

Using hard-tooth surface gearbox to drive the rollers, which has lower noise and longer life.

In order to save labor and operate conveniently, roll gap adopts worm wheel and worm adjustment.

3. Technical Parameters:

Version	XK-400	XK-450	XK-560	XK-660
Roll diameter(mm)	400	450	560	660
Working length of rolls(mm)	1000	1200	1530	2130
Front roll surface speed(m/min)	18.65	24.32	27.72	28.6
Friction ratio	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip (mm)	10	15	15	15
Capacity per.batch (kg)	18-35	25-50	35-50	165
Motor power (kw)	37	55	90	245
Overall dimensions(mm)	43501850 1780	56702390 1670	58452284 1978	74653662 2080
Weight(kg)	7600	12000	23000	49000

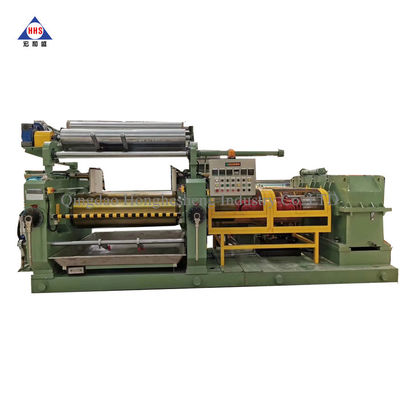

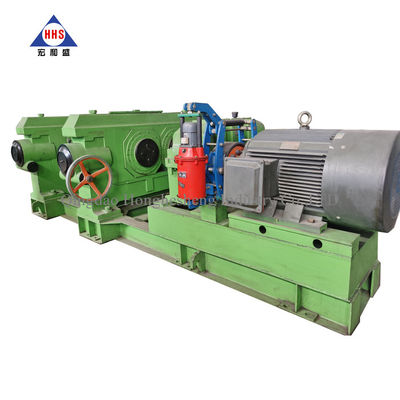

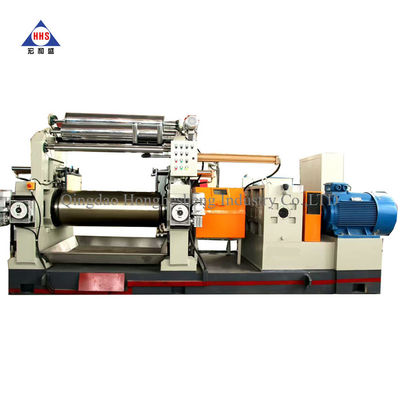

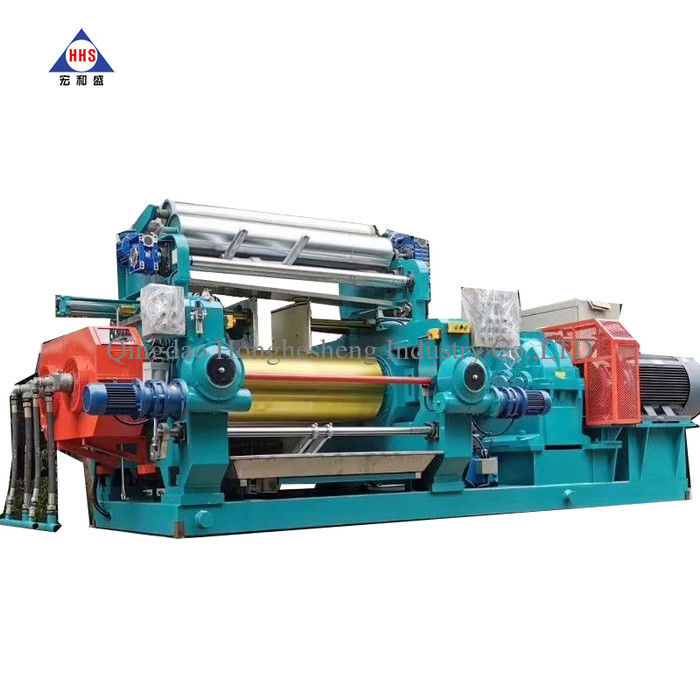

4. Photo

660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine 0

660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine 6

660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine 7

660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine 8

660mm Dia 2130mm Length 2 Roll Open Mill Rubber Mixing Mill Machine 11
