Product Details:
|
| Total Pressure: | 200-1350t | Plates Size: | 500-1600mm |
|---|---|---|---|
| Product: | Eva Pp | Distance: | 150-200mm |
| Cylinder: | 380-1016 | Dimension(L*W*H): | 1880*780*1660 |
| Voltage: | Request | Warranty: | 2 Years |
| Power: | 15kw | Application: | EVA Slipper Making |
| High Light: | 50T Eva Sheet Making Machine,800*1000mm Eva Sheet Making Machine,EVA Foaming Machine 4 Layer |
||
EVA Foaming Machine Is Used For Foaming EVA, Eva Sheet Making Machine
EVA foaming machine is used for foaming EVA, PE rubber, which are widely used in shoe material manufacturing, foaming floor, EVA mat, EVA puzzle, thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material, etc.
Features:
1. Auto PLC or electric relay control, auto bumping.
2. Fast plate closing speed, long time pressure retaining, back pressure retaining for better product quality.
3. Quick release valve make the opening speed very fast.
4. Plate is designed specially, which make temperature uniform on the plate.
5. Pressure relief when opening mould satisfy the technical for high, middle and low level products.
Below is our conventional products technical parameters:
| Type | XLB-D780*600 | XLB-D800*1000 | XLB-D900*1100 | XLB-D1000*1200 | XLB-D1350*1500 |
| Total pressure (T) | 160 | 250 | 300 | 500 | 1000 |
| Plate size (mm) | 780*600 | 800*1000 | 900*1100 | 1000*1200 | 1350*1500 |
| Plate clearance (mm) | 200 | 140 | 150 | 150 | 150 |
| Layer number | 2 | 4 | 4 | 4 | 6 |
| Motor power (kw) | 5.5 | 7.5 | 7.5 | 11 | 22 |

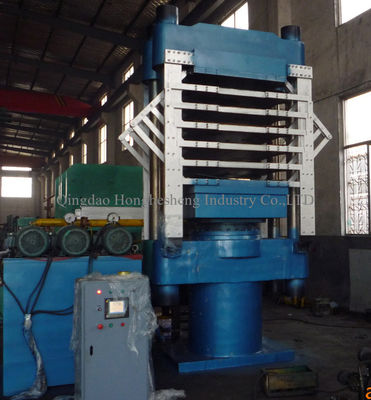

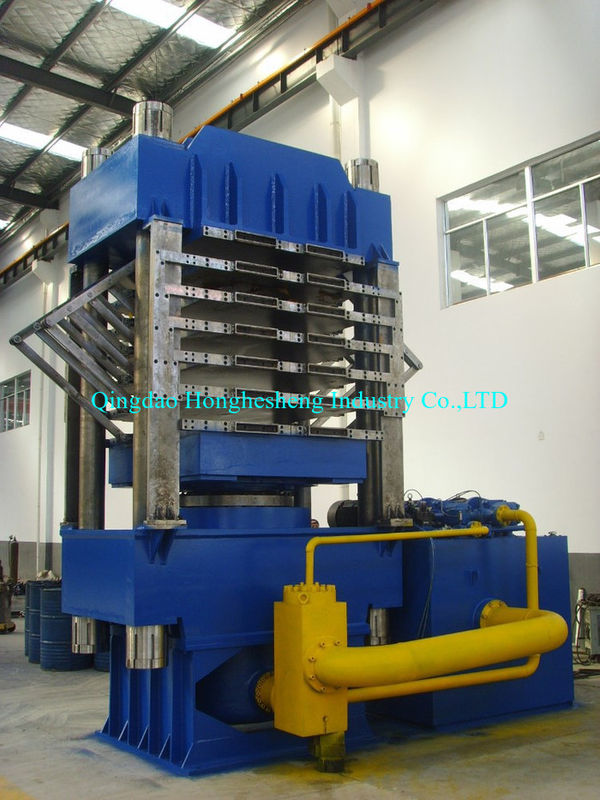

Pictures:
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory
. Q: Are you a manufacturer or traiding company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
