Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 380V,Customer's Request,380V/50HZ,220/380V,AC380V | Power(w): | 37kw,4.5KW,20KW,5KW For Lab Two Roll Mill |
| Weight: | 5200kgs,1000kg,2T | Dimension(l*w*h): | 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm |
| Warranty: | 1 Year | Condition: | New |
| High Light: | 500mm Open Mill Rubber Mixing,2.2kw Open Mill Rubber Mixing,Electric Heating Two Roll Rubber Mill |
||

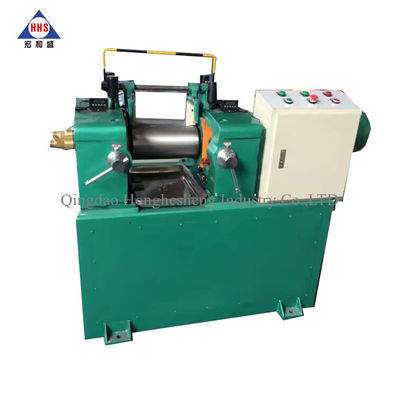

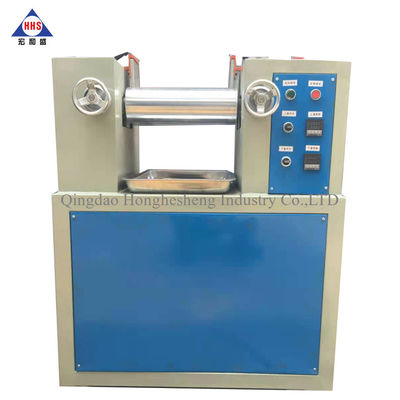

Silicone Open Mill Rubber Mixing Machine
Application:
It is mainly used for mixing equipment of silica gel and rubber. It has the characteristics of fine structure, safety and convenience, wide applicability and high efficiency.
Technical parameters:
| Roller diameter | 160mm |
| Roller length | 500mm |
| Front roller linear speed | 15~20r / min |
| Roller space adjustable | 0~10mm |
| Roller speed ratio | 1:1.25 |
| One time feeding | 1-5 kg |
| Main motor power | 2.2kw 6.8A |
| Heating mode | electric heating |
| Temperature range | RT~350℃ |
| Temperature accuracy | ±3℃ |
| Power supply | AC 380V 20A |
| Total weight | About 500kg |
| Machine size | 1400 * 800 * 1350mm |

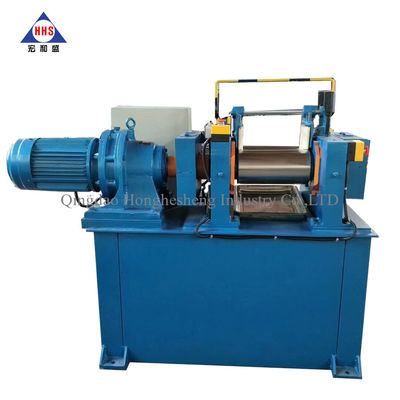

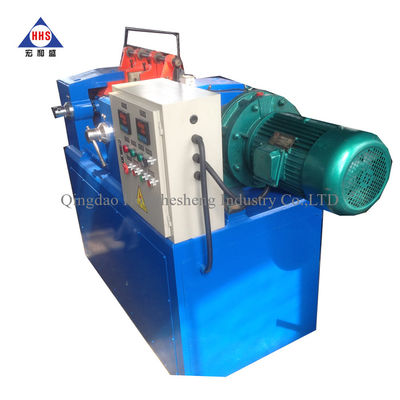

Introduction to the structure of rubber mixing machine
1. The machine is mainly composed of a body-shaped frame, frame, roller, transmission gear, gear reducer, motor and other parts. The roller is made of chilled cast iron. The surface of workpiece is grinded and has high hardness and wear resistance. The roller is hollow and filled with water but water system. The worm gear reducer is installed next to the base, and the roller and frame are arranged on the upper part of the machine to make it compact. Easy to operate
2. The transmission part of the machine is driven by the motor of the hard tooth surface reducer set outside the frame. The rear roller is driven to rotate by the transmission gear, and then the front roller is driven by a pair of speed ratio gears installed at the left end of the roller to make the front and rear rollers rotate at different speeds in relative directions.
3. The transmission gear is equipped with closed protection device, and the machine is equipped with electric braking device. When emergency stop is required, press the emergency stop switch to brake immediately, which makes the safety performance more reliable.
open mixing mill
