Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50 | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 55KW |
| Weight: | 23000KG | Dimension(l*w*h): | 5405X1740X1790mm |
| Warranty: | 2 Year | Condition: | New |
| High Light: | Copper Sleeve Rubber Open Mixing Mill,XK450 Rubber Open Mixing Mill,Auto Stock Blender Rubber Mixing Mill |
||

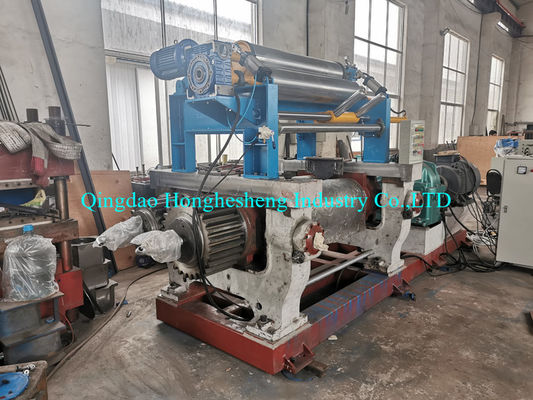

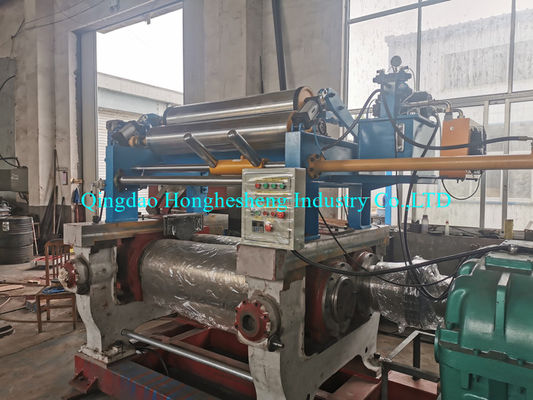

XK-450 Automatic stock blender two roll open mixing mill / rubber mixing mill / open mixer
1. rollers,chilled cast iron
2. water or steam cooling system
3. hardened reducer ,bearing bush
4. welded or casting base
5. HS of rollers:75-80
The open mixing mill is mainly used for plasticating,mixing and sheeting rubber materials. It is the general equipment in rubber and related industries.
1. Gap Adjustment Mode:Manual or Electrical (by motor)
2. Lubricating Method:Manual or Auto;Grease or Thin oil
3. Emergency stop device:Pull Rod and Emergency button
4. Roller bearings: Nylon Bushing or Copper Sleeve or Spherical Roller Bearing
5. Reducer(gear box) type:ZQ type reducer or hard-teeth(hardened) reducer or planetary reducer.
Technical Parameters
| Version | XK-450 |
| Roll diameter(mm) | 450 |
| Working length of rolls(mm) | 1200 |
| Front roll surface speed(m/min) | 21.8 |
| Friction ratio | 1:1.27 |
| Max.nip (mm) | 12 |
| Capacity per.batch (kg) | 50 |
| Motor power (kw) | 55 |
| Overall dimensions(mm) |
5405*1740*1790 |
| Weight(kg) | 23000 |
