360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill

Large Image : 360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill

Product Details:

Place of Origin:	CHINA
Brand Name:	honghesheng
Certification:	CE
Model Number:	XK450

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD25000-6000/SET
Packaging Details:	wood package /20/40GP/HC
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS/MONTH

Contact Now

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill

Description

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support	Type:	Open Mixing Mill
Roller Hardness:	50~60HRC	Bush:	Nylon Bush,bearing Bush,ball Bearing B
Voltage:	380V,Customer's Request,380V/50HZ,220/380V,AC380V	Power(w):	37kw,4.5KW,20KW,5KW For Lab Two Roll Mill
Weight:	5200kgs,1000kg,2T	Dimension(lwh):	11007001200mm,1226x830x1295mm,11.11.4(M),11006501500,1160920 1370mm
Warranty:	1 Year	Condition:	New
High Light:	360x900mm Open Mill Rubber Mixing , Cast Iron rubber refiner mill , 6900kg two roll rubber mill

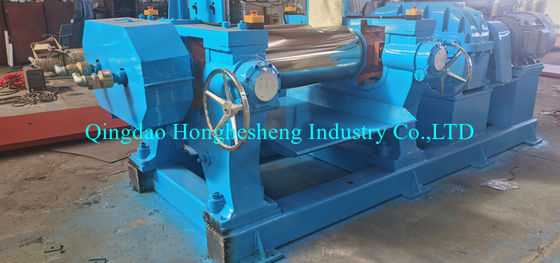

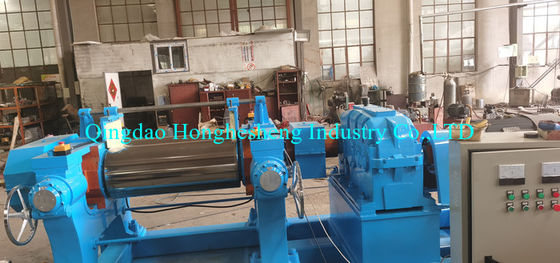

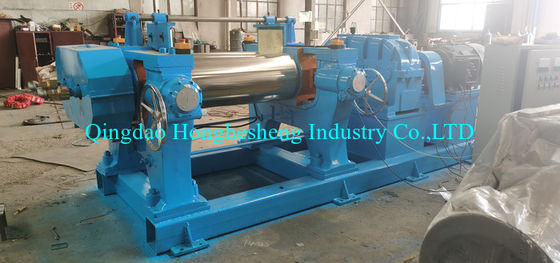

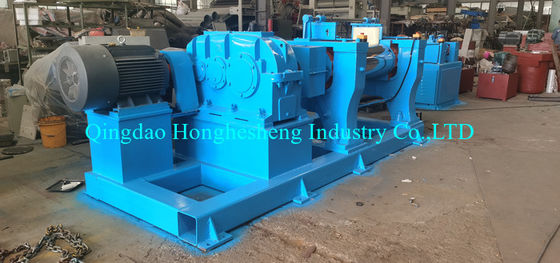

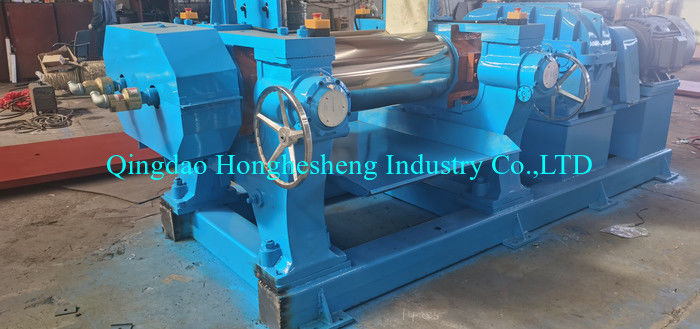

Cast Iron Rubber Sheet Open Roll Mill/Rubber Refiner/Rubber Mixing Mill

Application

Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products

Model	XK-160	XK-250	XK-360	XK-400
Roll diameter	160	250	360	400
roll length	320	620	900	1000
batch capacity	4	15	30	40
front roll speed	10	16.96	16.22	18.78
roll speed ratio	1:1.21	1:1.08	1:1.22	1:1.17
motor	7.5	22	37	45
weight	1100kg	3200kg	6900kg	9500kg

model	xk-450	xk-560	xk-610	xk-660
roller diameter	450	560	610	660
roller length	1200	1530	2000	2130
batch capacity	55	90	150	210
front roll speed	21.1	25.8	28.4	29.8
roll speed ratio	1:1.17	1:1.17	1:1.18	1:1.09
motor	55	110	160	250
weight	12000kg	20000kg	26000kg	42000 kg

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 0

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 4

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 7

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 12

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 13

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 7

360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill 10
