Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50 | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 55KW |
| Weight: | 23000KG | Warranty: | 2 Year |
| Condition: | New | ||
| High Light: | XK160 Open Mill Rubber Mixing,2T Open Mill Rubber Mixing Drilled,160mm two roll mill machine |
||
Rubber open mixer is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing (plasticizing), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet. Two roll mixing mill is also the main machine to make reclaimed rubber.
1. Rubber open mixer is used to mixing rubber or press rubber sheet.
2. Rubber open mixer can be followed by batch off plant, or plate vulcanizing press depends on what you make next step.
3. The rubber open mixer has hollowed structure or drilled structure which ensures good cooling effect.
4. The rubber open mixer can add a head for easy stock turning.
5. ISO, CE, GOST certificate for any market exporting.
Technical Parameters
| Version | XK-160 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-660 |
| Roll diameter(mm) | 160 | 250 | 360 | 400 | 450 | 550 | 560-510 | 660 |
| Working length of rolls(mm) | 320 | 620 | 900 | 1000 | 1200 | 1500 | 1530 | 2130 |
| Front roll surface speed(m/min) | 9 | 16.3 | 16.7 | 19.3 | 21.8 | 22.5 | 27.2 | 28 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.2 | 1:1.24 |
| Max.nip (mm) | 4.5 | 8 | 10 | 10 | 12 | 16 | 15 | 0.5-15 |
| Capacity per.batch (kg) | 1-2 | 10-15 | 20-25 | 18-35 | 50 | 50-65 | 50-65 | 165 |
| Motor power (kw) | 5.5 | 18.5 | 30 | 45 | 55 | 110 | 90 | 240 |
| Overall dimensions(mm) | 1133*920*1394 | 2722*1115*1345 | 4200*1780*1760 | 4920*1780*1800 |
5405*1740*1790 |
6646*2736*2105 | 6270*2282*2000 | 7280*3400*2530 |
| Weight(T) | 2 | 3.2 | 6.5 | 8 | 11.4 | 22 | 22.5 | 49 |

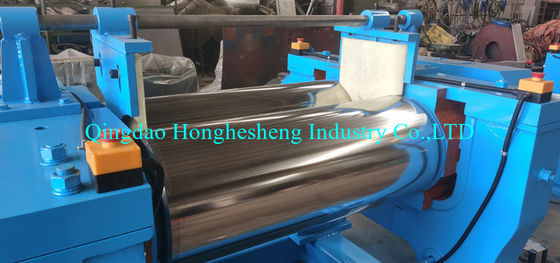

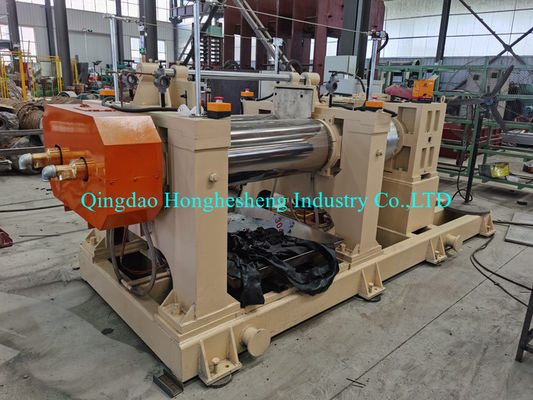

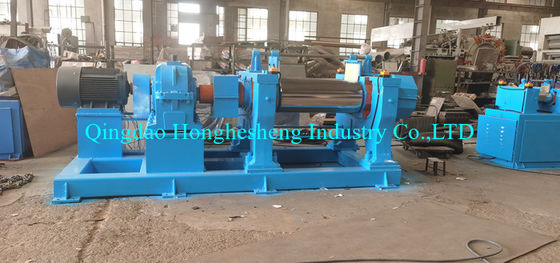

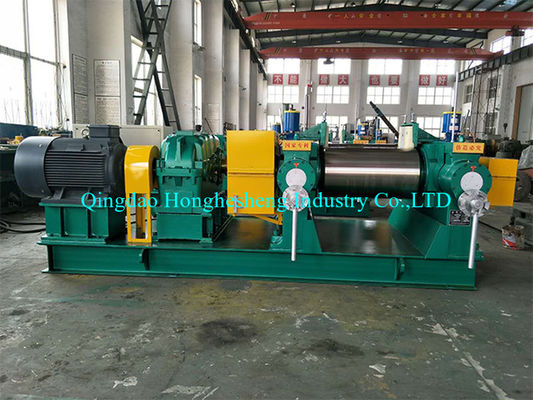

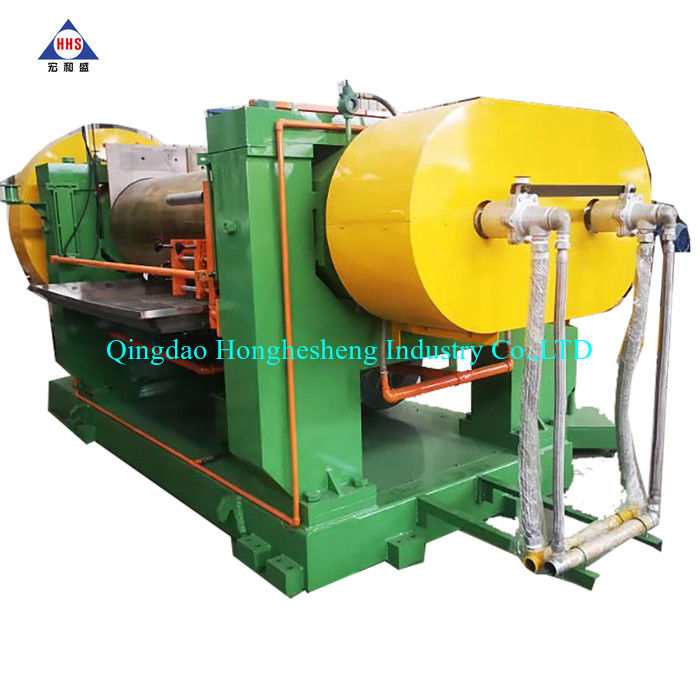

product picture
