Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 380V,Customer's Request,380V/50HZ,220/380V,AC380V | Power(w): | 37kw,4.5KW,20KW,5KW For Lab Two Roll Mill |
| Weight: | 5200kgs,1000kg,2T | Dimension(l*w*h): | 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm |
| Warranty: | 1 Year | Condition: | New |
| High Light: | 65L Open Mill Rubber Mixing,14 Inches Open Mill Rubber Mixing,4000KG Adjustable rubber milling machine |
||

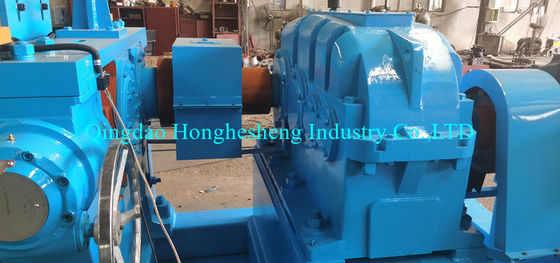

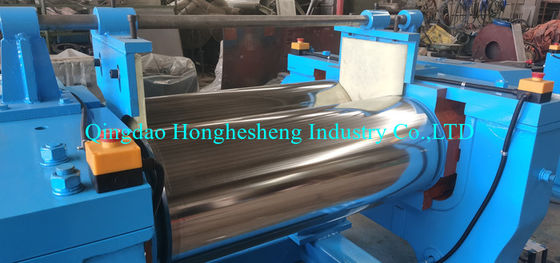

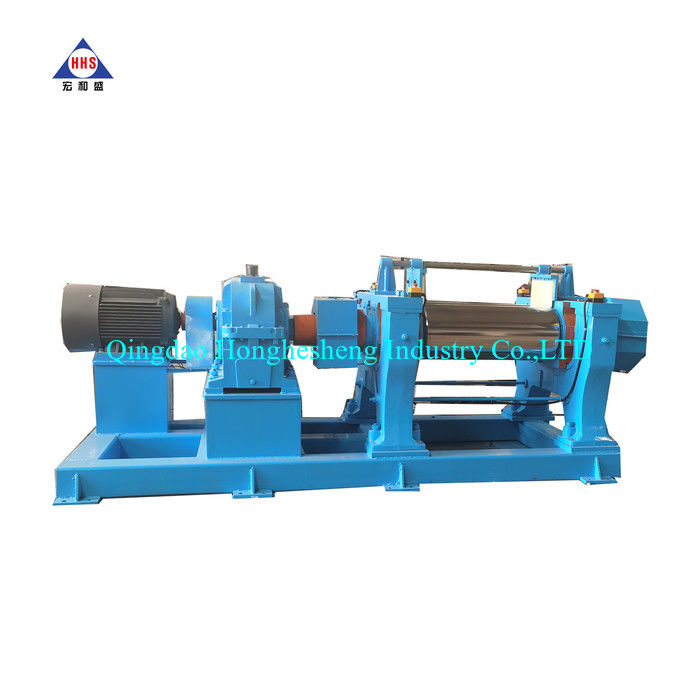

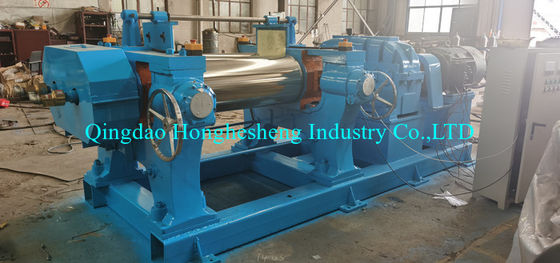

Roll open rubber mixing milling machine rubber mixing mill
Instrument introduction: The open mixer is a kind of mixing plastic equipment that was used earlier in the plastic product production plant. On the calender production line, the open mill is in front of the calender and after the mixer. Its function is to mix and plasticize the uniformly mixed raw materials to provide a more uniformly mixed and plasticized melt for the calendered plastic products. When producing cable materials, the open mill can directly smelt and plasticize the powdery materials mixed according to the formula into molten materials, and then press and mold them into sheet-like tapes, so that the pelletizer can cut them into pellets. On the floor leather production line, it can directly provide a primer coating that is uniformly mixed and plasticized for cloth leather. The recycled waste plastic film (sheet) can also be re-plasticized on an open mill.
The main technical parameters:
1. Size: 14 inches
2. Type: open mixer
3. Working volume: 65L
4. Screw speed: 21r/min
5. Production capacity: 160KG/H
6. Drum spacing: 0-10mm
7. Alias: Rubber mixing machine open mixing machine color matching machine
8. Scope of application: color matching of silicone rubber mixed with silicone rubber 9.Screw diameter: 360
10. Screw length to diameter ratio: 930
11. Main motor power: 30KW
12. Overall dimensions: about 3.1*1.5*1.8M
13. Weight: about 4000KG
product description:
1. Drum material: alloy hard steel
2. Drum speed: fixed speed
3. Roller speed ratio: 1:1.25
4. Roller treatment: hard chrome plating mirror treatment on the surface of high hardness, no sticky material, no delamination
5. Roller spacing: 0.02~20mm adjustable
6. Safety device: 4 touch-type emergency stop devices (with reverse function, safety first, humanized design, operating workers will always be safe and free of work injuries) 7.Motor: 1 set of 30KW 6 poles.
8. Power: 30KW
9. Volume: (W×D×H)3100*1200*1600mm, under the same function, the volume is smaller than the traditional process, reducing the waste of area
10. Roller lubrication: The wear-resistant bearing has a large contact area and prolongs its service life.
11. Mixing capacity: according to material
12. Whole machine weight: 4500kg Technical scheme of precision instrument testing equipment
13. Roller temperature: water cooling
14. Reducer: ZQ250
