Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50 | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 5.5KW |
| Weight: | 23000KG | Dimension(l*w*h): | 1120x920 X1295mm |
| Warranty: | 2 Year | Condition: | New |
| High Light: | Dia 160mm Rubber Open Mixing Mill,5.5KW Rubber Open Mixing Mill,1440r/m Second Hand Rolling Mill |
||

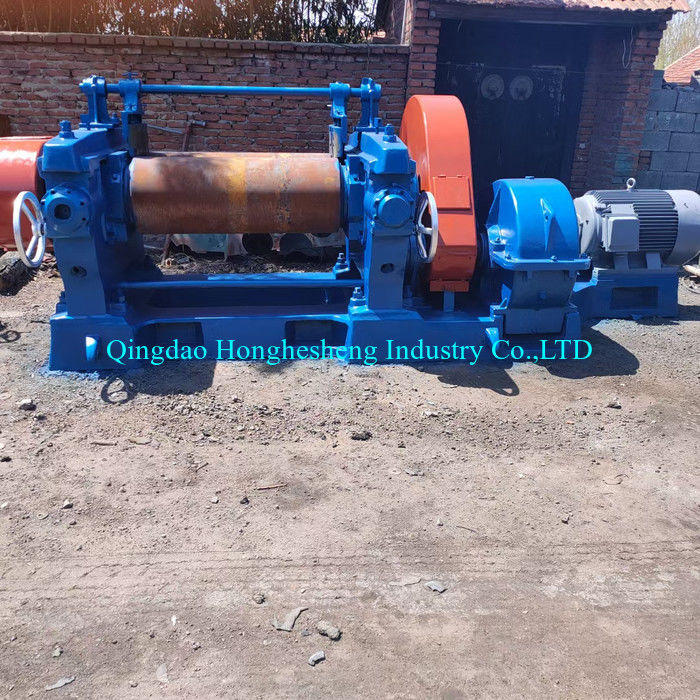

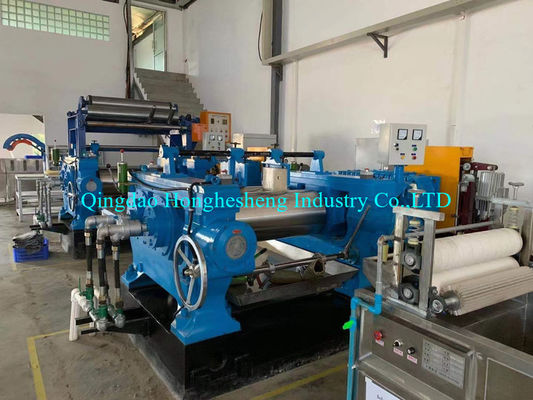

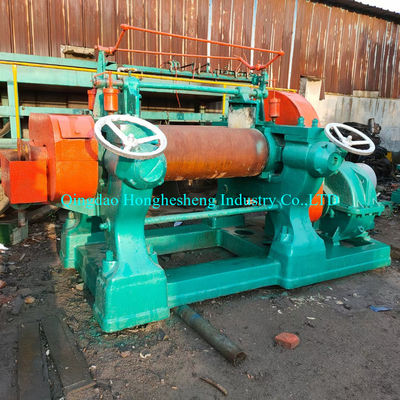

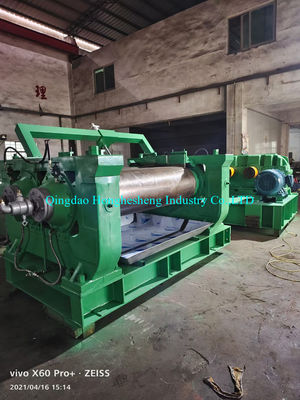

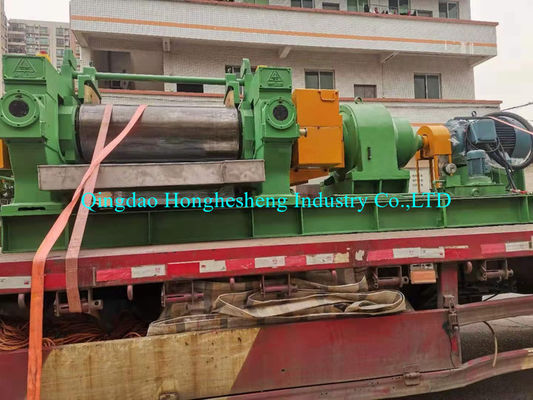

Used for rubber&plastic mixing,sheeting.
| Model | X(S)K-160 | X(S)K -250 | X(S)K -360 | X(S)K -400 | X(S)K -450 | X(S)K -550 | X(S)K-660 | |
| Diameter of rolls | 160 | 250 | 360 | 400 | 450 | 550 | 660 | |
| Working length of roll | 320 | 620 | 900 | 1000 | 1200 | 1500 | 2130 | |
| Working speed of front roll | 8.95 | 14.9 | 17.4 | 19.3 | 23.1 | 28.6 | 30 | |
| Fraction ratio of rolls | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.05 | |
| Max.gap(mm) | 5 | 8 | 10 | 10 | 10 | 15 | 15 | |
| Nip regulating mode | Manual | Manual | Manual | Manual or Electric | Manual or Electric | Manual or Electric | Electric | |
| Batch capacity(Kg) | 1-2 | 10-15 | 20-15 | 25-35 | 30-50 | 50-60 | 120-140 | |
| Motor | Power | 5.5 | 15 | 30 | 45 | 55 | 90/110 | 180 |
| Motor speed(r/m) | 1440 | 730 | 980 | 740 | 980 | 740 | 740 | |
| Reducer | Full closed type hardened gear speed reducer | |||||||
| Reduction ratio | 43 | 35 | 49.7 | 38 | 47.2 | 35.6 | 126.2 | |
| Overall dimension (mm) | 1120x920 X1295 | 3400x1270 X1620 | 4140x1770 X1700 | 4490x1700 X1750 | 5570x1900 X1750 | 6290x2330 X1780 | 7500x 2630x2060 | |
| Weight (kg) | 1100 | 4200 | 7600 | 9000 | 11500 | 20000 | 26500 | |
Others Details:
1-- Arrangement for Cooling and Heating
1) Circulation of steam and cooling water for heating and cooling the rolls is provided through the rolls to control the temperature by Rotating Joint.
2) Display the current temperature of each rollers onto the digital readout thermometer by the sensor.
2-- Nip Guard Adjustment:Provision for opening of Nip Guard is provided for the purpose of cleaning of rolls and nip
3-- Safety Switch:Hand Operated Safety Switch(Emergency Stop Button) is provided
4-- Overload Safety:Machine will be tripped off if overload to protect valuable electrical circuit
5-- Driving Motor Power:Motor and gear box with sufficient power is provided for smooth running
6-- Noise:Noise is as minimum as possible
7-- Electrical Connection:All electrical connections is that short circuit is not possible by any means
8-- Safety Guard:Safety Guards for all rotating and movable parts of the machine is provid
