Product Details:
|
| Heating Platen Size: | 550X550 | Mold Closing ForceF: | 50T |
|---|---|---|---|
| Plate Clearance: | 150mm | Working Layers: | 1 |
| Motor Power: | 2.2KW | Overall Dimension: | 2400*2100*3200mm |
| Weight: | 3500KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | High Speed Press Machine |
| High Light: | Rubber Vulcanizing Equipment 1100*1100mm,Rubber Vulcanizing Equipment 12kW,Outdoor Playground rubber vulcanizing machine |
||
Be Friendly in Use Rubber Outdoor Playground Vulcanizing Equipment Machine
NAME : Be Friendly in Use Rubber Outdoor Playground Vulcanizing Equipment Machine.
MODEL : XLB-Q 1100*1100mm, Custmoized
Parameter of Be Friendly in Use Rubber Outdoor Playground Vulcanizing Equipment Machine.
| Item | XLB-D(Y)1000*1000*1 | XLB-D(Y)1200*1200*1 | XLB-D(Y)1500*1500*1 |
| Nominal molding power | 1.60-2.00MN | 3.15MN | 4.00-5.00MN |
| Working layer number | 1 | 1 | 1 |
| Piston stroke | 250-500mm | 250-500mm | 250-500mm |
| Main motor power | 3.0kW | 3.0kW | 3.0kW |
| Plate clearance | 125-500mm | 125-500mm | 125-500mm |
| Heating method | Steam,ecectricity | Steam,ecectricity | Steam,ecectricity |
| Configuration | Frame | Frame | Frame |
| Electric pipr heating power | 12kW | 15.6kW | 27kW |
Features of Be Friendly in Use Rubber Outdoor Playground Vulcanizing Equipment Machine.
• High-performance oil hydraulic system with automatic pressure compensation function can preset the time and pressure between two pressurizations and automatically conduct pressurization and depressurization supplemented with high-precision cylinder.
•High-precision and abration-resistance guide pillar features strong loading force and stable lifting.
•Imported KDB electric board features high-temperature resistance,abrasion resistance,fast thermal transmision and strength against deformation.
•High-precison temperature sensor,together with LED temperature controller,built-in dense-point heating wire and tubular condenser,has the temperature range from normal temperature to 300°C.
•Single heating can be designed according to the requirements.
•Oil hydraulic system:the pressure range:30 ton,the maximum stroke of the cylinder:140mm.

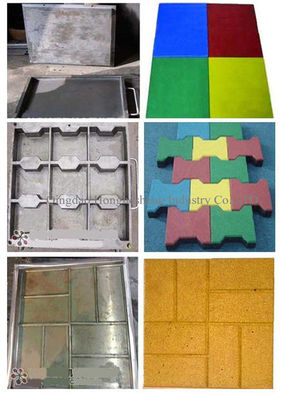

Samples pictures of Be Friendly in Use Rubber Outdoor Playground Vulcanizing Equipment Machine.

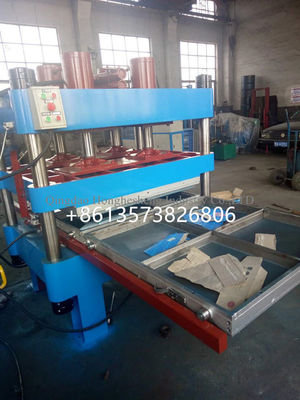

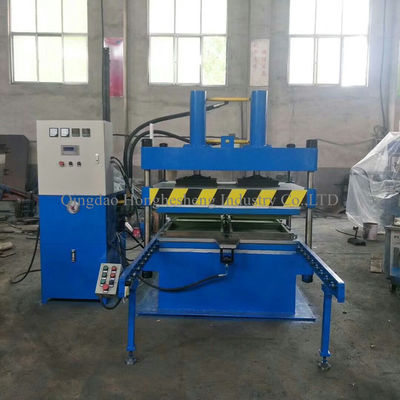

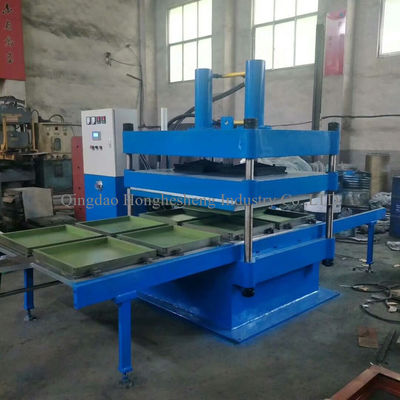

2. Machine Picture Show:
