Product Details:
|
| High Light: | 220V Mooney Viscometer,50HZ Mooney Viscometer,50HZ Rubber Rheometer |
||
|---|---|---|---|

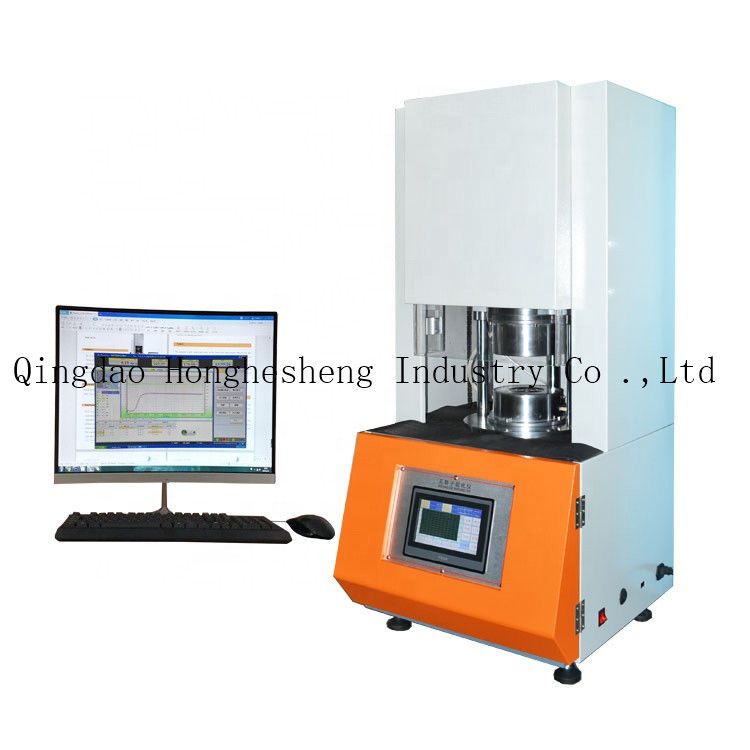

Mooney Viscometer Rubber Rheometer Rubber Rheometer Mooney Viscometer
Standards: ASTM-D2084,ASTM-D5289,ISO-6502, ASTM-D1646
Technical parameter:
| Control temperature range | Normal temperature~200℃ |
| Temperature display resolution | 0.01℃(0.1 ℃ common type of imported temperature controller temperature) |
| Temperature control accuracy | ±0.3℃ |
| Calibration accuracy | Mooney value ±0.5 |
| Rotor speed | 2 rotation/ min ±0.02rotation/ min |
| Torque range | Mooney value 0~200 |
| Torque resolution | Mooney value 0.1 |
| Print content | Date, time, temperature, Mooney scorch curve and MV,T5,T35,T3,T18,@15,@30 |
| Power | 50HZ, ~220V±10% |
Introduction:
Rubber rotor rheometer Measurement of vulcanization characteristics,
requirements, ISO6502 requirements and Italian standards require T10, T30, T50, T60, T90 data.
Feature:
1.the strong data function can support the drawing,storage
and output printing of multiple curves under the same interface.
2.it support the data query in many forms and output of excel queries and reports
3.it has many analysis function like statics, deviation setting,standards curve
setting ,and CPK statistical calculation
4.it has such function as interface query,local zoom and curve comparison.
5.selection of any any vulcanization time,range selection and screen capture.
6.analyzed the past test data once again,and increase or modify the reports,to
avoid the loss of data.
7.the test data are stored in the way of database,which is scientist
the multiple data sequencing ways are convince for data retrieval and query.
8.the machine will get the characteristic curve and data by measuring
the strength of rubber.
9.good reproducible and stasis tics.
Test Results
Measure of Mooney viscosity (Large rotor):
MI -- initial Mooney viscosity.
ML – The minimum Mooney value in the last 30 seconds before the motor stopped.
Mx-t - Mooney value relating to time t.
x-the time of preheat, t-Mooney test time
Stress Relaxation
MRe - Mooney value at the end of stress relaxation.
TRx - time needed for x% torque stress relaxation.
Xy% - % of Viscosity decay after motor stopped y sec.
The value of exponent a, the constant k, the correlation coefficient r, and the area A .
Graph ( with Viscosity-Time curve and Test temperature curve)
Mooney viscosity graph; Relaxation graph; log Mooney units Versus Log time graph.
Scorch Data testing sample results:
-Scorch time curve
-Temperature curve
-Curve index ( Input small or Large Rotor test
MI - initial Mooney viscosity
ML - Minimum Mooney viscosit
MF - Maximum Mooney viscosity in the end of the test
Mx-t - Mooney value relating to time t.
x-the time of preheat, t-Mooney test time
M5/M3 - ML+5/3 Mooney
M35/M18 - ML+35/18 Mooney
t5/t3 - Mooney burning time, M5/M3 corresponding time, Unit: min.
t35/t18 - Mooney vulcanizing time, ML+35/18 corresponding time, unit: min.
Standard Configure of MV-C3 Mooney Viscometer :
1 Machine Complete 1 Unit
2 O-ring 50 piece
3 Software operate 1 Unit
4 Large Rotor 1 Unit
5 Small Rotor 1 Unit
6 Warranty 1 Year(in China or free parts providing for out of Country)
7 Manual operator 1 Unit

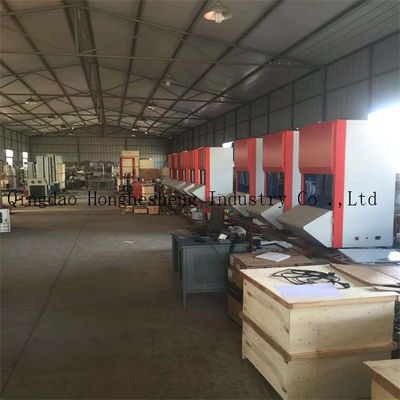

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.

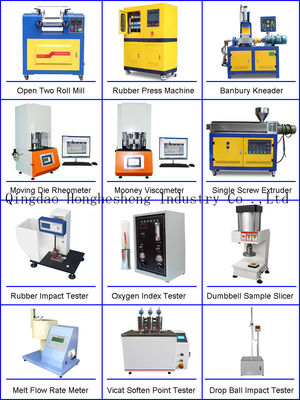

The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
Q: Are you a manufacturer or traiding company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
