Product Details:
|
| High Light: | HHS Tensile Testing Machine,50KN Tensile Testing Machine,Electronic Universal Testing Machine |
||
|---|---|---|---|

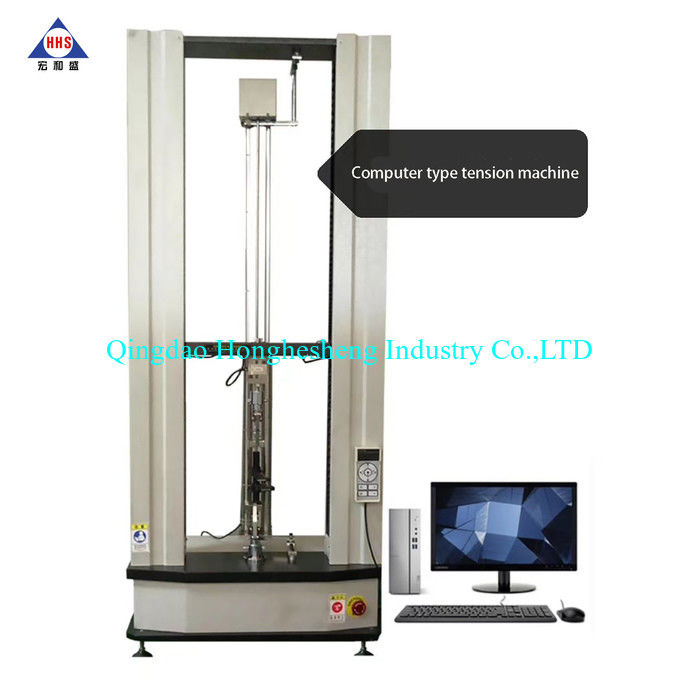

WDW-50 Electronic Universal Testing Machine Tensile Testing Machine Price Lab Equipment Price
1 Application:
WDW series computerized electronic universal testing machines are designed and manufacture according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2 speicification
| Model | WDW-50 | WDW-50E | WDW-100 | WDW-100E |
| Max. Load(KN) | 50 | 50 | 100 | 100 |
| Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 |
| Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S |
| Structure |
Four-column floor or desk model, (upper is compression and lower is tensile) |
|||
| Cover | All aluminum alloy | |||
| Control method | Computer control | |||
| Load resolution | 1/300000 | |||
| Rang of deformation | 4%-100%FS | |||
| Resolution of deformation | 0.04um | |||
| Accuracy of displacement | Within±0.5%of indicating load | |||
| Resolution of displacement | 0.01mm | |||
| Test speed(mm/min) | 0.05-500 stepless arbitrary setting | |||
| Tensile space(mm) | 700(can be customized) | |||
| Compression space(mm) | 700(can be customized) | |||
| Test width(mm) | 500(can be customized) | 550(can be customized) | ||
| Workbench thickness(mm) | 58 | 68 | ||
| Base height(mm) | 435 | 460 | ||
| Working environment | Room temperature 10℃~30℃,relative humidity≤80% | |||
| Power supply | AC220V±10%,50Hz/60Hz(can be customized) | |||
| Grips |
Wedge type, plate type and other grips as consumer’s demand
|
|||
| Dimension(mm) | 850*480*1865 |
1000*550*2076 |
||
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
Q: Are you a manufacturer or traiding company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
