Product Details:
|
| Cutting Force: | 30-40t | Product: | Eva Pp |
|---|---|---|---|
| Dimension(L*W*H): | 2330*1320*1260mm | Voltage: | 380v/415v Or Customized As Customer Requirement |
| Warranty: | 2 Years | Main Motor Power: | 2.2kw |
| Application: | EVA Slipper Making | Area Of Work Table: | 610*1600mm |
| Stroke Control Range: | 50-160mm | ||
| High Light: | 30T Hydraulic Envelope Cutting Machine,4kw Envelope Cutting Machine |
||

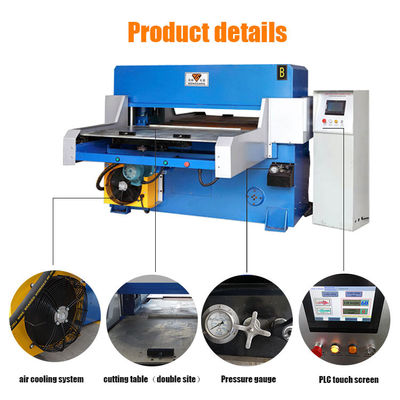

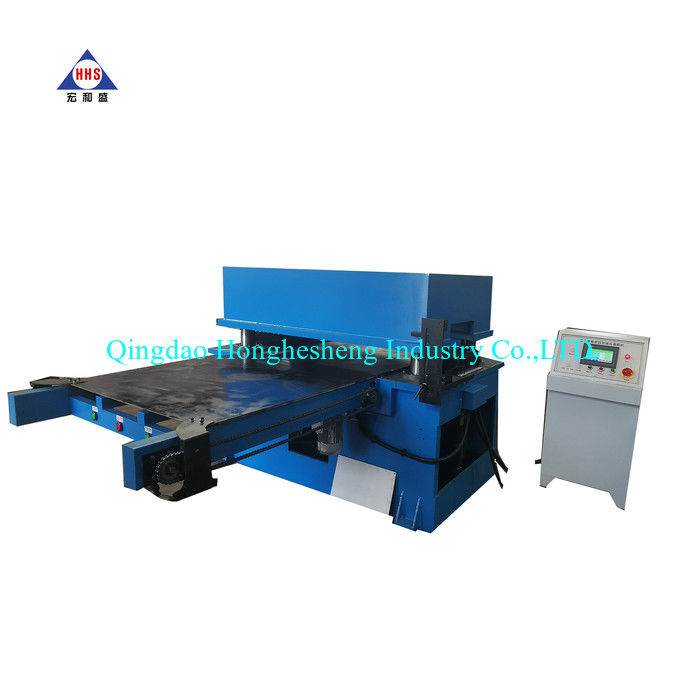

HG-A30T Precision Hydraulic Paper Red Envelope Cutting Machine
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies /molds.
1.The cutting machine Cutting-Force:25ton--200Ton.
2. Hydraulic, manual simple operated, material precision 0.01mm, no burned.
3.Two Cylinders, Four Column.
4.Suitable to die cut all non-metal soft /half-soft materials.From manual to fully automatic type.
5.Can make a big cutting area: 2.3*1.3m or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.
| Product Specification | ||||||
| Model.No~ | Cutting Force |
Dimension (L*W*H) |
Area of Work Table | Main Motor Power | Stroke Control Range | Net Weight |
| HG-a30T/63" | 30 T | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
| HG-B30T/63" | 30 T | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-240mm | 2000kg |
| HG-B30T/48" | 30 T | 1950*1320*1260mm | 610*1220mm | 2.2kw | 50-240mm | 1900kg |
| HG-a40T/63" | 40 T | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2500kg |
| HG-B40T/48" | 40 T | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2400kg |
| HG-a50T/63" | 50 T | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2900kg |
| HG-B50T/48" | 50 T | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2800kg |
| Features and Advantages | ||||||
| 1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area. | ||||||
| 2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials. hydraulic cut eva foam / plastic / paper die cutting machine | ||||||
| 3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials. | ||||||
| 4.Central automatic lubrication system, increases machine durability, prolong the working time. | ||||||
| 5.Suitable for single-layer or multi-layer sheet or roll materials. | ||||||
| 6.More economical and 2 or 3 times improving producting capacity. die cutting machine | ||||||
