Product Details:
|
| Cutting Force: | 30-40t | Product: | Eva Pp |
|---|---|---|---|
| Dimension(L*W*H): | 2330*1320*1260mm | Voltage: | 380v/415v Or Customized As Customer Requirement |
| Warranty: | 2 Years | Main Motor Power: | 2.2kw |
| Application: | EVA Slipper Making | Area Of Work Table: | 610*1600mm |
| Stroke Control Range: | 50-160mm | ||
| High Light: | 4kw EVA Sheet Making Machine,Double Cylinder EVA Sheet Making Machine |
||
1, The working principle:
Hydraulic cutting machine is down press to the mould.
And it cut material by cutting moulds or cutting dies.
2. The machine can be used for die cutting roll material such as :
EVA foam, car interior material, flooring mat, and luggage, bags making materials.
3. Applicable to all non-metallic materials, irregular shape of the cutting.
| Product Specification | ||||||
| Model.No~ | Cutting Force |
Dimension (L*W*H) |
Area of Work Table | Main Motor Power | Stroke Control Range | Net Weight |
| HG-a30T/63" | 30 T | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
| HG-B30T/63" | 30 T | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-240mm | 2000kg |
| HG-B30T/48" | 30 T | 1950*1320*1260mm | 610*1220mm | 2.2kw | 50-240mm | 1900kg |
| HG-a40T/63" | 40 T | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2500kg |
| HG-B40T/48" | 40 T | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2400kg |
| HG-a50T/63" | 50 T | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2900kg |
| HG-B50T/48" | 50 T | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2800kg |
| Features and Advantages | ||||||
| 1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area. | ||||||
| 2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials. hydraulic cut eva foam / plastic / paper die cutting machine | ||||||
| 3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials. | ||||||
| 4.Central automatic lubrication system, increases machine durability, prolong the working time. | ||||||
| 5.Suitable for single-layer or multi-layer sheet or roll materials. | ||||||
| 6.More economical and 2 or 3 times improving producting capacity. die cutting | ||||||
We can according to your material,requirements,design the mould for you.

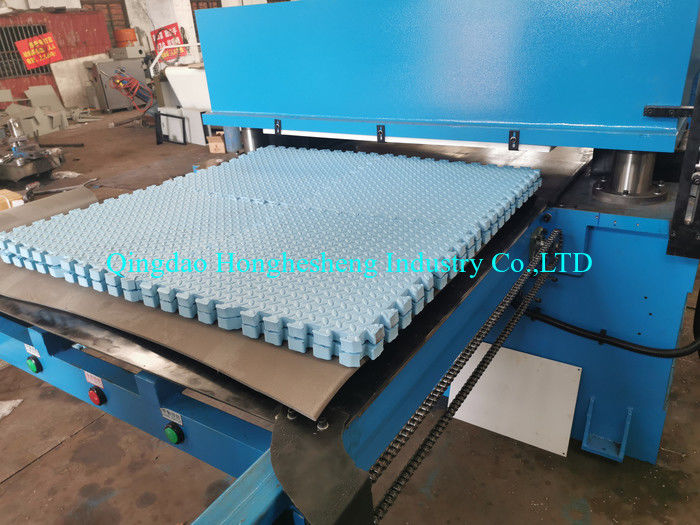

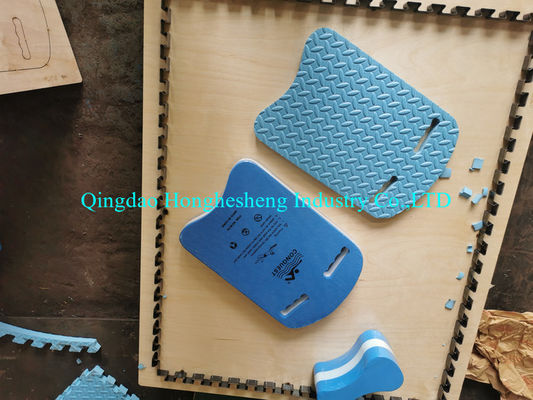

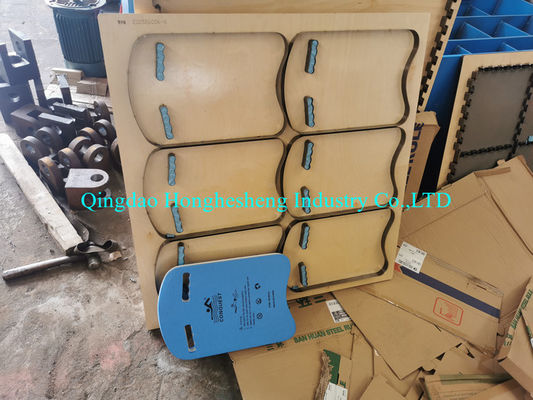

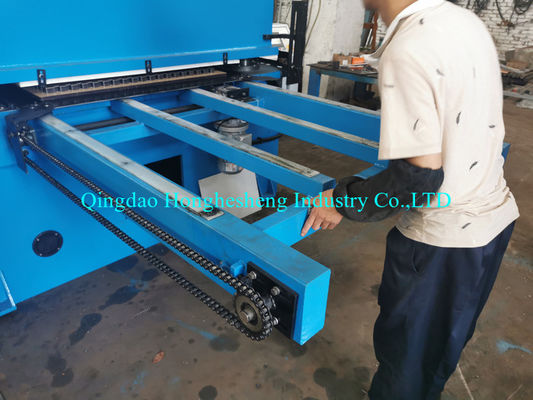

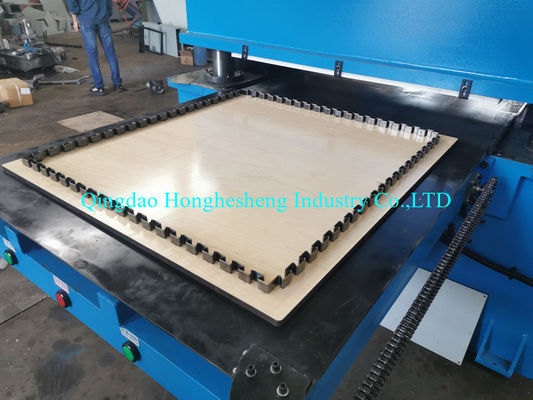

picture show
About us
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory
