Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing Bush |
| Voltage: | 380V,Customer's Request,380V/50HZ,220/380V,AC380V | Power(w): | 37kw,4.5KW,20KW,5KW For Lab Two Roll Mill |
| Weight: | 5200kgs,1000kg,2T | Dimension(l*w*h): | 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm |
| Warranty: | 1 Year | Condition: | New |
| High Light: | CE Manual Open Mill Rubber Mixing,10in Roller Open Mill Rubber Mixing |
||
Two Rolls Open Mixing Mill Machine XK-250 10 Inches Mixing Roller
This machine can automatically collect the both side materials to mix again. Front roller speed is faster, motor power is lower than other mixing mill to save electricity.
Structual Features of Mixing roller
1, The rollers are made of vanadium-titanium alloy chilled cast iron. The surface is hard and wearable. The internal cavity is processed for a more even temperature on roller surface.
2, The machine is designed with an overload protection device to prevent the main parts from damage due to overload.
3, the machine is designed with an emergency brake. In case of emergency, pull the rod to stop the machine. It is safe and reliable.
4, The driving system is designed with NGW planetary hardened-gear speed reducer or dual-output hardened-gear speed reducer, featuring compact structure, low noise, high efficiency and long service life.
5, The machine has an integrated base for easier installation.
| No. | Model | Unit | XK-250 |
| 1 | Diamter of roller | mm | 250 |
| 2 | Working length of roller | mm | 680 |
| 3 | Working speed of front roller | m/min | 14.2 |
| 4 | Speed ratio of gront and back rollers | 1:1.21 | |
| 5 | Max. gap. | mm | 8 |
| 6 | Roller adjustment method | Manual | |
| 7 | Batching capacity | kg | 10-15 |
| 8 | Main motor Power | kw | 15 |
| 9 | Main motor ratate speed | r/min | 980 |
| 10 | Speed reducer | Cycloidalpin gear speed reducer | |
| 11 | Speed ratio | 45 | |
| 12 | Dimension | mm | 3400*1300*1600 |
| 13 | Weight | kg | 4200 |

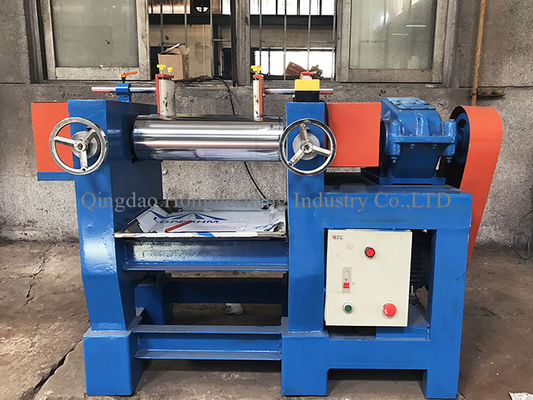

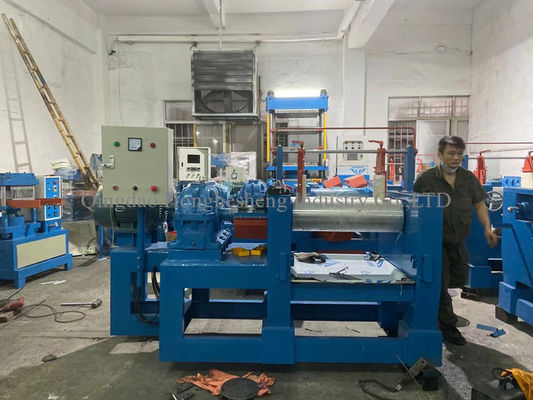

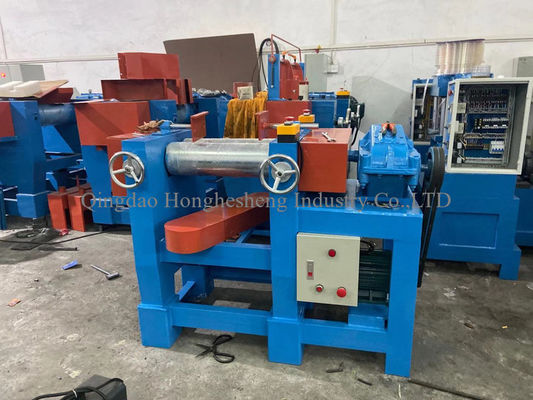

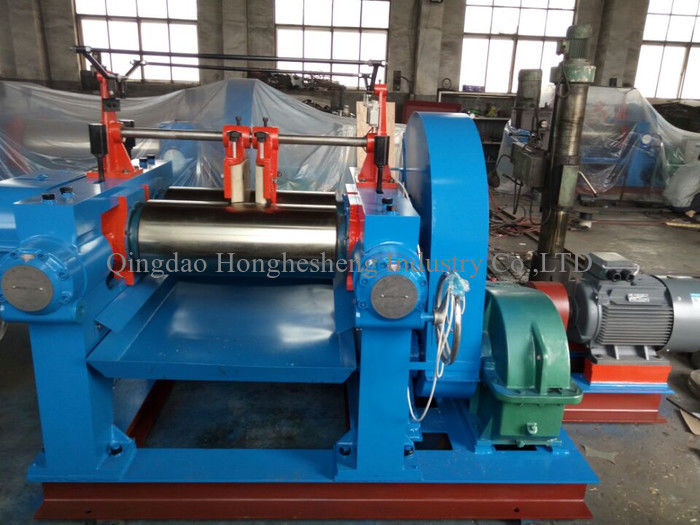

detailed pictures
Detailed pictures
