Product Details:
|
| Roll Diameter: | 400mm | Roll Working Length: | 1000mm |
|---|---|---|---|
| Compound Feeding Capacity: | 18-35KG | Max Rolld Space: | 10mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V, Customer's Request | Power(w): | 45KW |
| Weight: | 8000KG | Dimension(l*w*h): | 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm |
| Warranty: | 3 Year | Condition: | New |
| High Light: | 65kg Capacity Open Mill Rubber Mixing,220V Open Mill Rubber Mixing,OEM Nylon Bush Rubber Open Mill |
||
1.Technical spec.:
| Model | XK-400 | XK-450 | XK-550 | XK-560 |
|
Working diameter of rolls(mm) |
400 | 450 | 550 | 560/510 |
| Working length of rolls(mm) | 1000 | 1200 | 1530 | 1530 |
|
Working linear speed of front roll(m/min) |
18.65 | 24.5 | 22.5 | |
|
Speed ratio of front and rear roll |
1:1.27 | 1:1.27 | 1:1.2 | 1:1.2 |
| Max. gap (mm) | 10 | 10 | 15 | 15 |
| Max. Capacity per batch(kg) | 18-35 | 25-50 | 50-65 | 50-65 |
| Driving motor power(kw) | 45 | 55 | 110 | 90 |
| Overall size(L*W*H) mm | 4200*1850*1870 | 5200*2380*1770 | 6500*2180*1880 | 6500*2300*2000 |
| Around weight(ton) | 7.9 | 11.4 | 22 | 22.5 |
2.Features:
1).Hardened gears reducer ,low noise ,high quality ,competitive price
2).The machine main uses are following in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating, mixing and rubber tab letting.

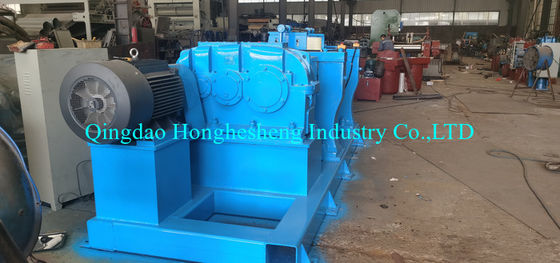

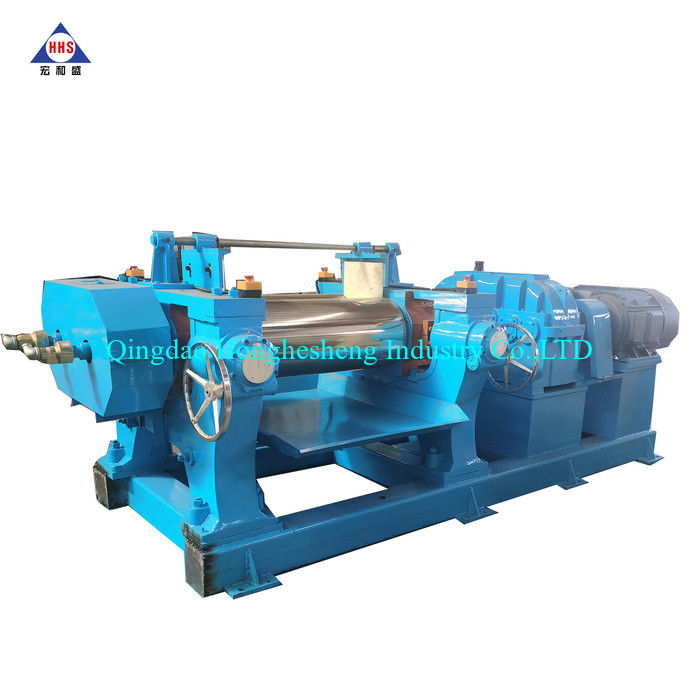

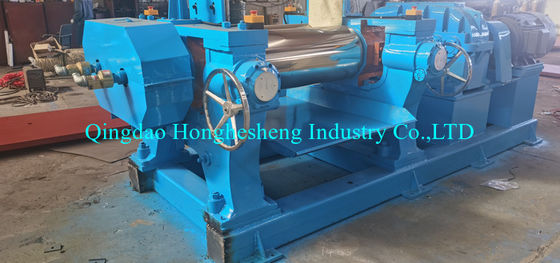

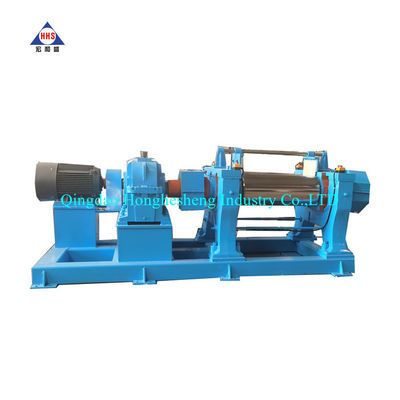

3).This machine is double roller opening to be used for rubber mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake, Motor and reducer, etc.

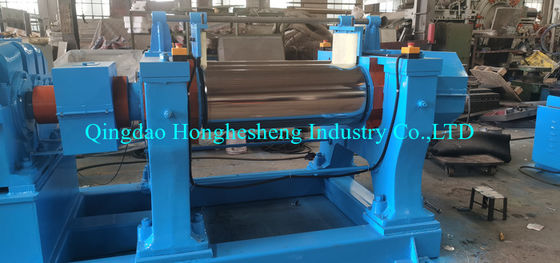

4).The roller is made from safety cooled and hard cast steel, smooth surface is polished. in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust speed of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber
3.Optional device.:
1.Electric regulating nip
2.Automatic stock blender
3.Double extension shafts and universal coupling for transmission.
