Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton

Large Image : Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton

Product Details:

Place of Origin:	CHINA
Brand Name:	honghesheng
Certification:	CE
Model Number:	XK450

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD25000-6000/SET
Packaging Details:	wood package /20/40GP/HC
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS/MONTH

Contact Now

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton

Description

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support	Type:	Open Mixing Mill
Roller Hardness:	50~60HRC	Bush:	Nylon Bush,bearing Bush,ball Bearing B
Voltage:	380V,Customer's Request,380V/50HZ,220/380V,AC380V	Power(w):	37kw,4.5KW,20KW,5KW For Lab Two Roll Mill
Weight:	5200kgs,1000kg,2T	Dimension(lwh):	11007001200mm,1226x830x1295mm,11.11.4(M),11006501500,1160920 1370mm
Warranty:	1 Year	Condition:	New
High Light:	Computerized Tensile Strength Testing Machine , Tensile Strength Testing Machine 10kn , 10T Tension Tester

Computerized 10kn 20kn 30kn 50kn 10 Ton Tension Tester Tensile strength Testing Machine

1.Application

Microcomputer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling and tearing.

2.Features

1) Computer + Software control and display 6 kinds test curves:

Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time

2) Can be installed extensometer to test deformation of rubber or metal material

3) Can do high temperature test by high temperature oven and furnace

4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures

5) Can be customized height, width, and follow any test standard or customer request

3.Technical Parameters

Model	ETM-10kN	ETM-20kN	ETM-30kN	ETM-50kN	ETM-100kN
Capacity/ Load force	10kn	20kn	30kn	50kn	100kn
Load accuracy	Class 1 (class 0.5 optional)
Load range	1% - 100% FS (0.4% - 100% FS optional)
Testing Speed	0.001 - 1000 mm/min
Crosshead travel	1000mm	1000mm	1000mm	1000mm	1000mm
Effective tensil space	700mm	700mm	700mm	700 mm	700mm
Effective test width	400mm	400mm	450mm	450 mm	500mm
Load Resolution	1/300000
Deformation Measure Range	1%~100% FS
Deformation accuracy	≤±0.5%
Power Supply	AC 220V±10%, 50Hz (can be customized as customer request)

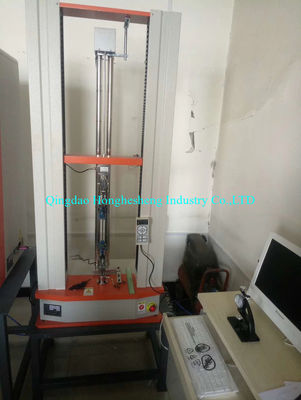

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton 0

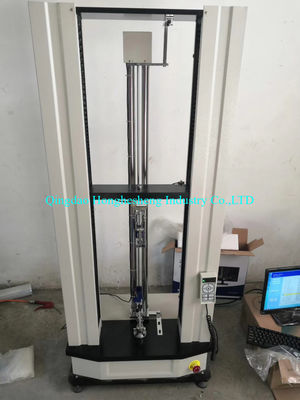

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton 5

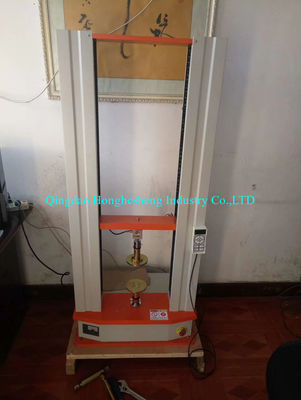

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton 6

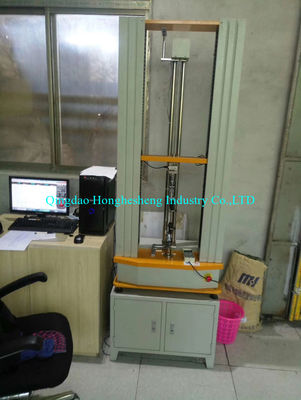

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton 7

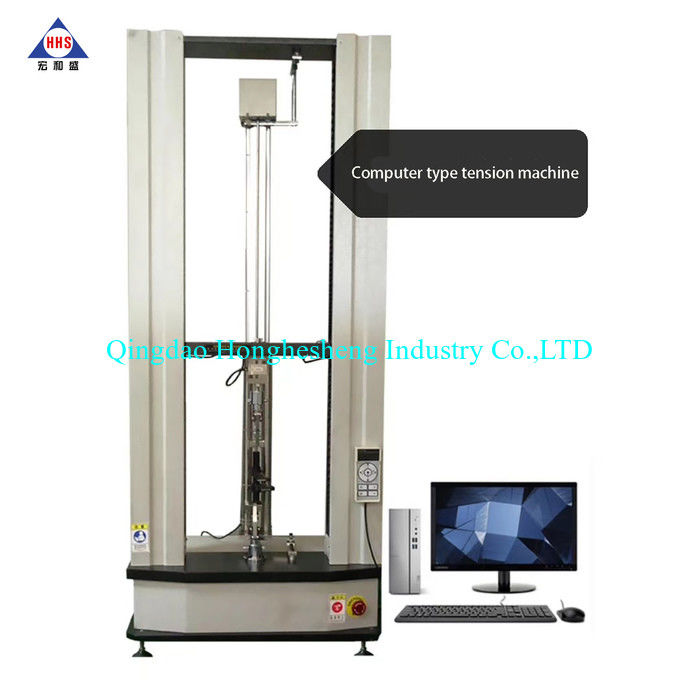

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton 8

Computerized Tensile Strength Testing Machine 10kn 20kn 30kn 50kn 10 Ton 11
