Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 30KW |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
1. Structure:
♥ This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet
♥Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device.
2 Technical Parameters:
|
Parameters/version
|
XLB1200*1200*2 | XLB1600*1600*2 | XLB2000*2000*2 | XLB2200*2200*2 |
| Mould closing force | 0.5MN | 0.5MN | 0.8MN | 0.4MN |
| Hot plate spacing | 80mm | 80mm | 80mm | 80mm |
| Hot plate layer | 2 | 2 | 2 | 2 |
| Plunger stroke | 250mm | 250mm | 250mm | 250/500mm |
| Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream |
| Main motor power | 11kw | 11kw | 11kw | 11kw |
| The thermal power | 5.5kw/board | 5.5kw/board | 5.5kw | 7.5kw/board |
| Size(L*W*H)mm | 2000*1400*1400 | 2000*1550*1800 | 3700*1700*2400 | 4000*2000*2900 |
| Weight(kg) | 25000 | 30000 | 36000 | 45000 |
why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity

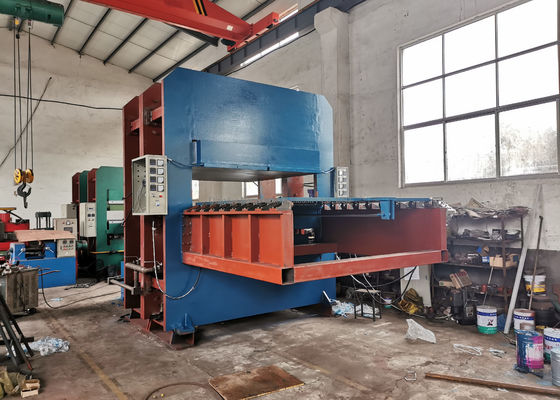

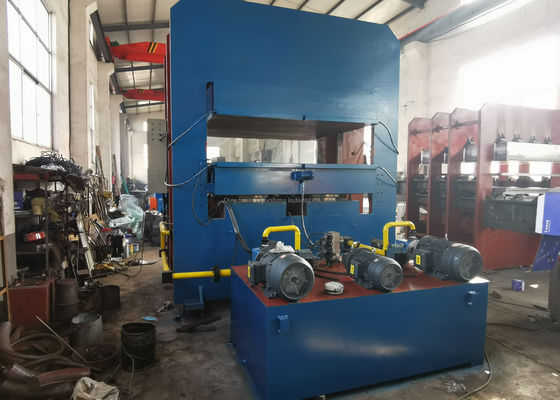

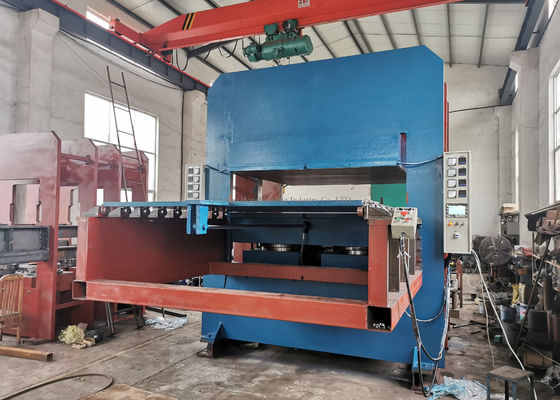

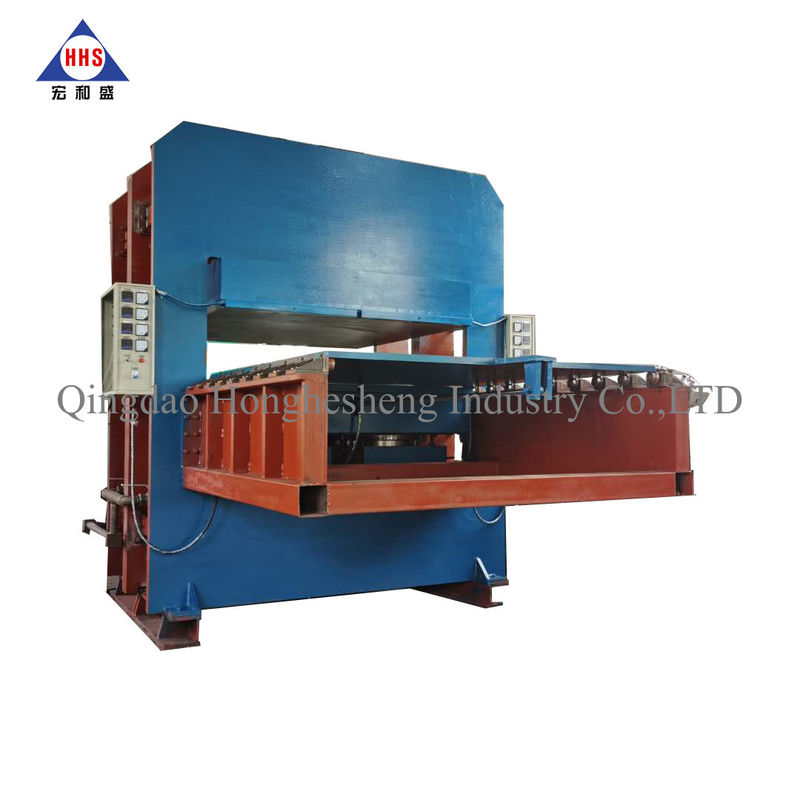

3 product picture:
