Product Details:
|
| High Light: | Rubber Testing No Rotor Rheometer,ISO6502 No Rotor Rheometer,GBT16584 rubber rheometer |
||
|---|---|---|---|

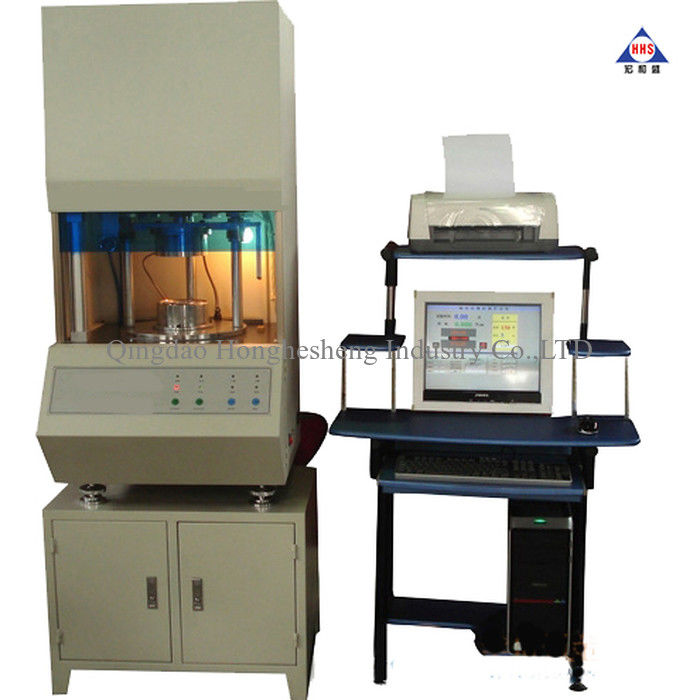

Rubber Testing No Rotor Rheometer
The software interface is consists of five parts (Shown above)
1) The menu panel
Include of File(new data,save data ,load data ),Control(start test ,stop test ,start heat, stop heat,start motor ,stop motor ,multicurve, torque clear, delete data ),Setting(input ,refercurve ,curvecolor ,aotorun, standard, system ),Report and About.
2) The data panel
Display the practice data (torque, time, heat, connections), As well as unit conversion.
3) The curve panel
Display real-time display to read the curve and test curve.
4) The action panel
Shortcut keys, set the test number, material number, test time, test temperature, curvilinear coordinates, curves, color (including test number, material number, test time, test temperature, the curvilinear coordinates the Enter key to enter the settings to save the settings.
5) The results panel
1.2 Technical
Applicable industry:
Widely used in rubber products industries.
Technical parameters:
| Model | ZL-3001 No Rotor rheometer |
| Meet standard | GB/T16584, ISO6502:1991 and ASTMD5289-95 |
| Temperature tester | Room temperature to 200°C |
| Heating speed | room temperature—200℃,about 10 min |
| Temperature accuracy | ≤ ±0.1°C |
| Temperature resolution | 0.1°C |
| Torque range | 0-5N.M,0-10N.M,0-20N.M (option) |
| Torque resolution: | 0.001NM |
| Motor rotating speed | 100 times / min |
| Rotor type | Rotor less |
| Die body pendulum | 1.7Hz±0.1Hz(100r/min) |
| Rotor pendulum angle | ±0.5°, ±1°, ±3° |
| Testing time setting | 3min--120min,choose freely |
| Air compression | 0.5Mpa--0.65MPa |
| Ambient temperature | 0-35°C |
| Test result | Printing:date,time,temperature,vulcanization curve,temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2. |
| Consumption power | 800 w |
| Dimension | 640mm×580mm×1300mm |
| Power | Single phase, 220V±10%, 50Hz |
| Display | Windows 7 + software |
| Weight | 260kg |
3 Equipment
main machine+computer+printer,English software
other rubber lab equipment you need
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
Q: Are you a manufacturer or traiding company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
6 How to send us your enquiry? Kindly tell me answer
-1 what is your EVA sheet width ?
-2 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently
Contact Sophie for quotation NOW:
Skype: sophie.xiao3
Cell: +8613573826806 (whatsApp and viber)
Contact Person: Miss. Sophie
Tel: +8613573826806
