Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 30KW |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
we make high quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent aftersale service, we hope to be one reliable factory for you!
. special manufacturer that has professional producing team and technical support
Technical parameters:
| Type | 100T | 150T | 200T | 250T | 300T | 300T XL | 400T | 500T |
| Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 300 | 400 | 500 |
| Stroke(mm) | 250 | 250 | 280 | 300 | 300 | 300 | 300 | 300 |
| Heating plate size(mm) | 400*400 448*460 |
420*420 460*460 |
503*508 545*560 |
600*600 600*650 |
600*600 650*650 |
700*700 700*700 |
700*700 800*800 |
800*800 850*850 |
| Diameter of cylinder(mm) | ∅250 | ∅310 | ∅355 | ∅400 | ∅450 | ∅450 | ∅500 | ∅560 |
| Horsepower(HP) | 7.5*2 | 7.5*2 | 10*2 | 10*2 | 10*2 | 10*2 | 15*2 | 15*2 |
| Type of mold opening | 2RT/3RT/4RT UP-DOWN IN-OUT 2RT/3RT/4RT | |||||||
| Double shaft thermal electricity(kw) | 14 | 22.5 | 27 | 34.5 | 36 | 45.5 | 46.5 | 48 |
| Total power(kw) | 19.5 | 33.5 | 42 | 49.5 | 51 | 60.5 | 68.5 | 70 |
| Gross weight(kg) | 6000 | 7500 | 8500 | 11000 | 13000 | 15000 | 19500 | 24000 |
| Machine size(cm) | 270*230*227 | 300*230*235 | 320*260*250 | 360*295*265 | 365*295*270 | 380*300*290 | 385*315*300 | 410*320*310 |

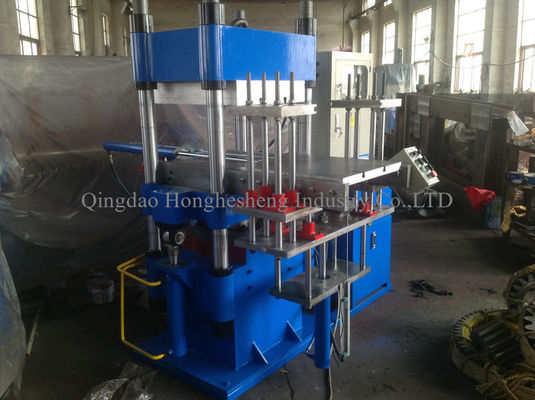

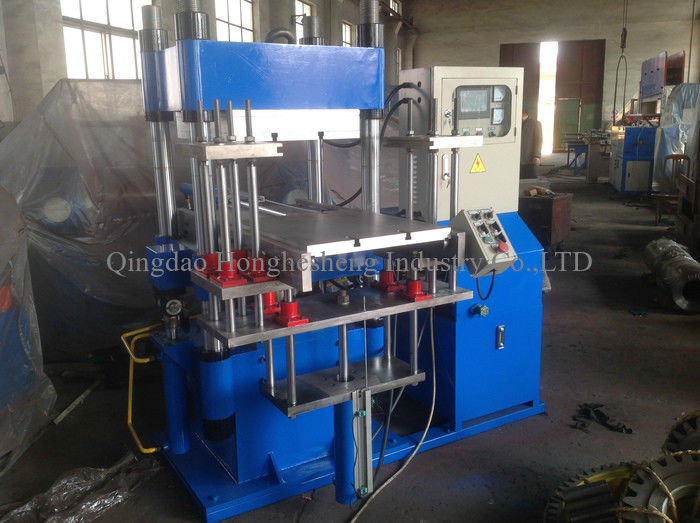

4 Detailed pictures
