Laboratory Press Machine/Compression Moulding Lab Press/Mini Hydraulic Lab Press

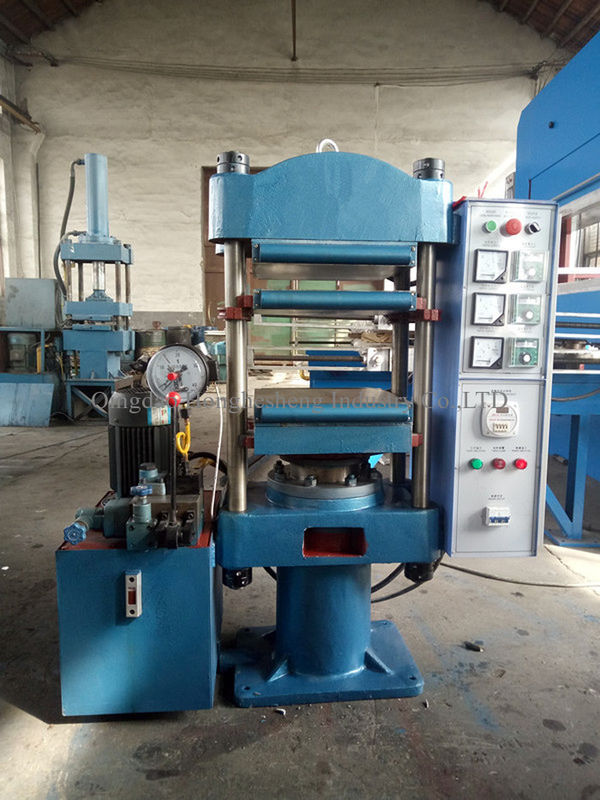

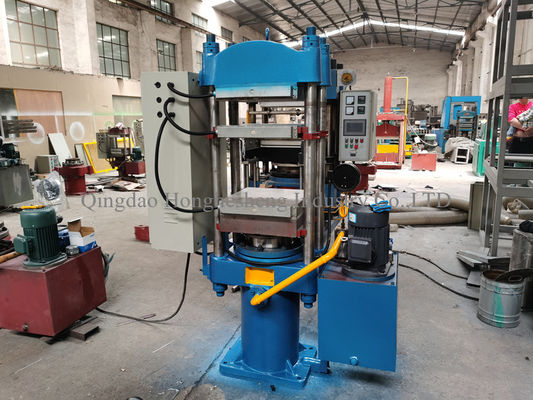

Large Image : Laboratory Press Machine/Compression Moulding Lab Press/Mini Hydraulic Lab Press

Product Details:

Place of Origin:	Qingdao Shangdong
Brand Name:	HHS
Certification:	CE
Model Number:	XLB350-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2000-3000
Packaging Details:	standard wood package or based on clients request
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	60sets/Year

Contact Now

Laboratory Press Machine/Compression Moulding Lab Press/Mini Hydraulic Lab Press

Description

Type:	Vulcanizer	Colour:	All Colour
Voltage:	Customized	Power(W):	30KW
Temperature:	Max 300 Degree	Working Layers:	1-4layers
Plates:	300-2100mm	Hot Plates Material:	Q-235 Material.
Heating:	Electricity , Steam Heating , Conduction Oil Heating .

Product Application

Rubber vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as

non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

Machine feature


The machine adopts the semi-automatic control . The working program can be set in the cabinet and machine will work according to this program

Most spare parts for hydraulic system are imported from Taiwan

Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation

The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58

The cartridge heater adopts three stages winding, nichrome wire , non-rusty

Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight

Main electrical elements are from Schneider France ,which can stabilize machine performance

PRODUCT SPECIFICATIONS

Model	XLB-50T	XLB-100T	XLB-150T	XLB-200T
Clamping force	50t	100T	150T	200T
Max system pressure	21Mpa	21Mpa	21Mpa	21Mpa
Stroke	250mm	250mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	380*380mm 400/400mm	400400mm 450450mm 500*500mm	500*500mm	510540mm 600550mm
Daylight	350mm	350mm	350mm	350mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	3kw	4kw	5kw	7.5 kw
control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

Model	XLB-250T	XLB-300T	XLB-350T	XLB-500T
Clamping force	250T	300T	350T	500T
Max system pressure	21MPA	21MPA	21MPA	21MPA
Stroke	300mm	300mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	650*650mm	600600mm 700700mm	700*700mm	800800mm 1000850mm
Daylight	300mm	300mm	300mm	300mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	7.5kw	7.5kw	11kw	13kw
Control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM
