Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
First Introduction
1. Detailed informations:

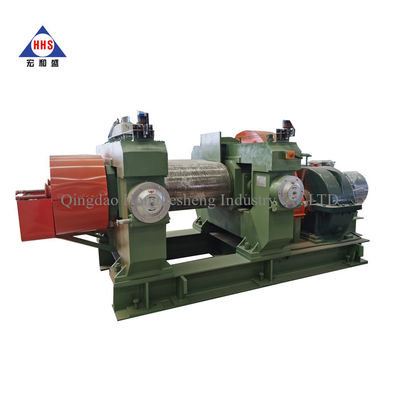

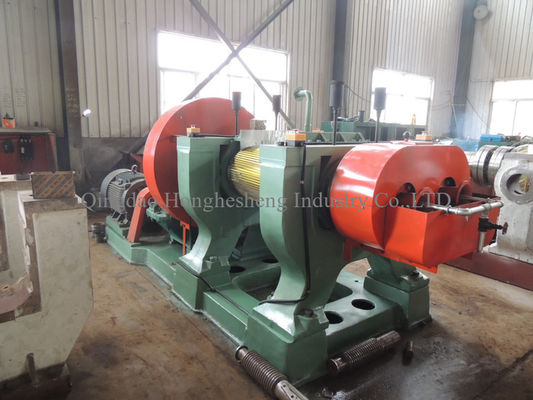

This machine is made up of one base, frame, front rollers, transmission gears, deceleration machine, adjustable from device, the temperature adjusting device, cutting knife components, the winder structure, safety switch and electric control system composition.
The rollers material for cold hard alloy iron, has high hardness &abrasion resistances. The temperature adjusting device, may to the general rollers within the steam and cooling water adjust the temperature to meet the technological requirements.
Turn the handwheel recoiler constitutive winding roller, can adjust the desired.
The machine is equipped with an braking brakes, emergencies, pull the security lever can immediately brake, which reduces the personal accident.
2. Chracteristics:
1.Transmission with quality.
2.The rolls are made of chilled cast iron with wear-resistance hard surface.
3.The rollers are grooved.
4.The bored rolls can be cooled through inputting the steam and colling water.
5.The two rollers rotate with different speed ,so that rubber material can be processed
6.The Excellent crushing structure is open gear transmissions
7.The product has ISO9001 CE standard and SGS certification .
3. Parameter of the Rubber Cracker mill:
| Parameters/version | XKP-400 | XKP-450 | XKP-560 |
| Front roll diameter | 400 | 450 | 560 |
| Back roll diameter | 400 | 450 | 510 |
| Roll length | 600 | 650 | 800 |
| Front roll surface speed (m/min) | 17.32 | 23.2 | 25.56 |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
| Max. nip | 8 | 8 | 8 |
| Feeding capacity per (kg) |
200-300 |
600-800 |
1500 |
| Power(kw) | 45 | 60 | 75 |
| Size(l*w*h) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
| Weight(kg) | 7000 | 12000 | 19000 |
