Kneader Rubber Mixing Mill Conveyor Lifter Bucket Elevator For Rubber

Kneader Rubber Mixing Mill Conveyor Lifter Bucket Elevator For Rubber

1. Usage:

This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Structure:
This machine consists of Base,Rack,Gland,Rollers,Bearing,Transmission device,Lubrication device,Decelerator,Adjustment device of the roller temperature,Emergency shutdown device and brake rigging and etc.

1. The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of hollowed roll is machined. The hollowed roll surface can be smooth or grooved. The grooved roll has full grooved surface, partial grooved surface and so on.

2. The roll is supported by roller bearing so it has low noise and long service life.

3. The roll bearing adopts grease lubricating and oil lubricating.

4. The pressure transducer system is available for directly displaying the working pressure and control the feed. When over pressure, it will automatically stops and save or print the pressure value.

5. The product is complied with nation-established safety standard (this standard is identical with Europe standard.

2. Working Principle and Structural Feature:

This machine consists of Motor,Reducer, Machine Driven System of china transmission,Guide Frame,Hopper,Electrial Control parts,etc.The hopper move up and down on the guide frame and turnover driven by the transmission system,two limits switch are on the top and at starting position,to control the hopper.

3. Lubrication:

(1). Reducer,No.18 hypoid gear oil and almost.Firstly change oil after two months,lator on change oil once each 6-12 months

(2). Filling lithium lubricating grease when overhaul each bearings

(3). Shelling-out the chains with No.30 machine oil once each month.

4. Installation and Testing Run:

(1). The machine should be fixed as the foundation drawing and filled foundation bolt;

(2). Check the degree of tightness of the chains and adjust them appropriately.The Chains driving hopper should be tensioned appropriately.

(3). During testing run,assure each parts to run stable,no JAM.If not,adjust it timely.

5 Specification and Performance

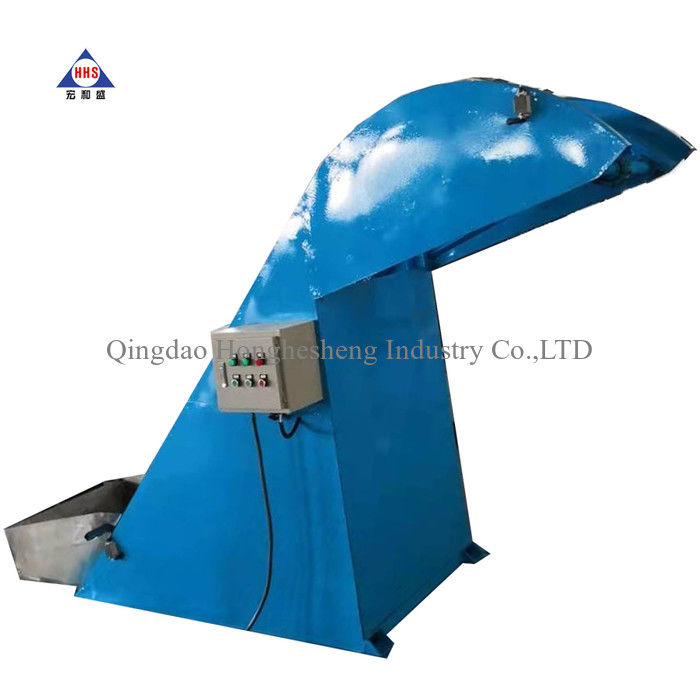

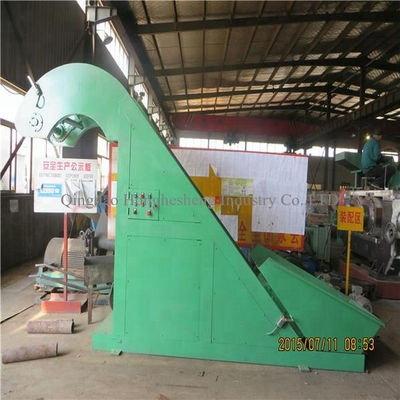

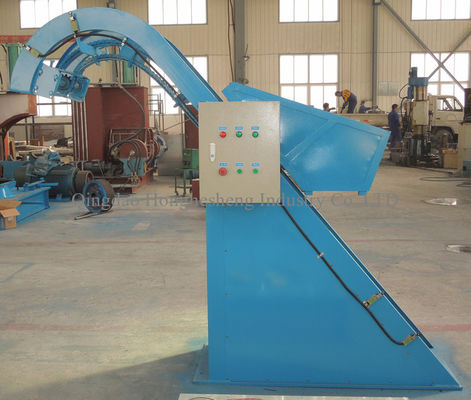

6.Photos:
