Product Details:
|
| Voltage: | 220V/380/450V | Power(w): | 1.5KW |
|---|---|---|---|
| Color: | Orange,Blue Or Green,customized | Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet |
| Warranty: | 2 Year | Lift Speed: | 9.5m/min |
| Capacity: | 130KG/batch | Condition: | New |
| Weight: | 600kg | Dimension(l*w*h): | 3780*875*2260mm |
| High Light: | Rubber Mixing Mil Appending Machine,1.5KW Appending Machine,Bucket Elevator Z Bucket Conveyor |
||

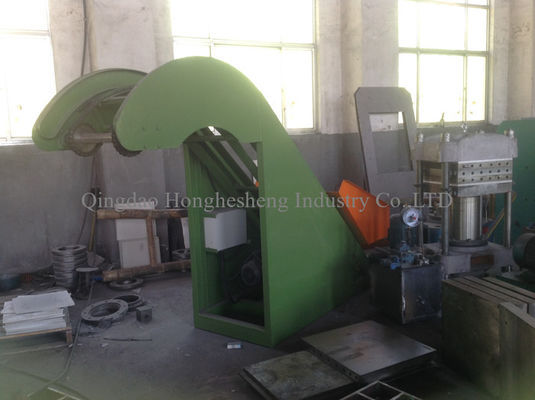

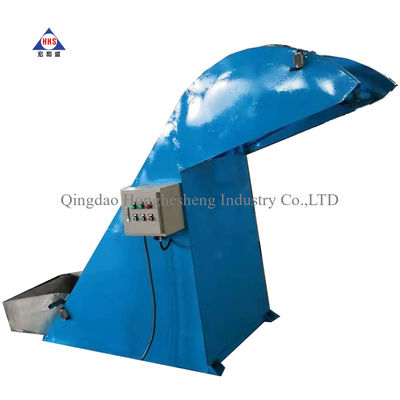

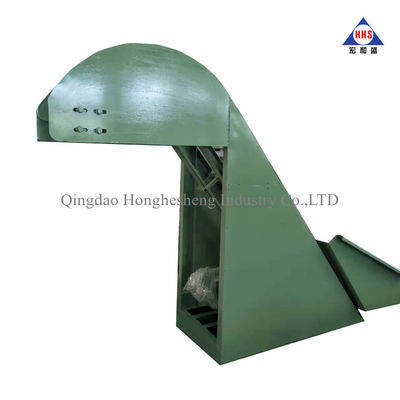

Appending Machine For Mixing Mill China Bucket Elevator Z Bucket Conveyor Rubber Mixing Mil
1. Main Application:
As an ancillary equipment under the dispersion mixer machine, this elevator is a kind of carrying machinery, utilized to carry the goods unloaded from mixer to open mill, extruder and sheeter or other machines to process., also it is a section of rubber and plastic mixing production line.
2. Specification and features:
2.1 This series bucket elevator includes 6 specifications given as follows:
TS55---------Equipped with 35L / 55L Mixer, Kneader
TS75 --------Equipped with 75L Mixer, Kneader
TS110------ Equipped with 110L Mixer, Kneader
Number before marked “×” means equipped mixer has a larger working capacity. And number after marked “×” means conveying distance that is, horizontal distance from front of foundation for dispersion mixer to the rolling centerline for open mill, unit is (m). “A” means the first time of design changing for this equipment.
2.2 Motor Power : 1.5kW(YD100L-8/4)
2.3 Velocity of hopper :200mm/s (high speed),100mm/s(low speed)
2.4 weight : ~600kg
