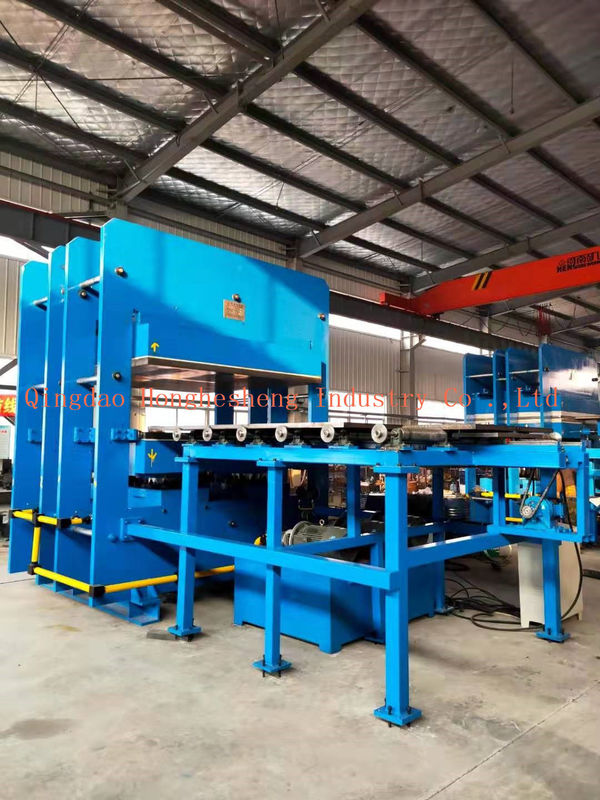

Rubber Mat Vulcanizing Press With Guid Rail

Rubber Mat Vulcanizing Press With Guid Rail
Rubber Mat Vulcanizing Press With Guid Rail

Large Image :  Rubber Mat Vulcanizing Press With Guid Rail

Product Details:
Place of Origin: Qingdao Shangdong
Brand Name: HHS
Certification: CE
Model Number: XLB800-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50000
Packaging Details: Wooden cases / Containers, etc
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year
Contact Now

Rubber Mat Vulcanizing Press With Guid Rail

Description
Type: Vulcanizer Colour: All Colour
Voltage: Customized Power(W): 11KW*2
Temperature: Max 300 Degree Working Layers: 1-4layers
Plates: 300-2100mm Hot Plates Material: Q-235 Material.
Heating: Electricity , Steam Heating , Conduction Oil Heating . Weight: 30000 Kg

1. Product Application

Rubber vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as
non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

2. Product Paramenters



Model
XLB-800*800
XLB-1000*1000
XLB-1200*1200
mold closing force
160 ton
200 ton
250 ton
plate size
800*800mm
1000*1000mm
1200*1200mm
quantity of cylinder
1 set
1 set
1 set
piston diameter
300mm
380mm
380mm
working layer
1
1
1
daylight
300mm
300mm
300mm
unit area pressure
2.5 Mpa
2.0Mpa
1.8Mpa
Main motor
3 kw
5.5 kw
8 kw
machine weight
about 4000 kg
about 5800kg
about 6800 kg


Rubber Mat Vulcanizing Press With Guid Rail 0Rubber Mat Vulcanizing Press With Guid Rail 1

Rubber Mat Vulcanizing Press With Guid Rail 2





Rubber Mat Vulcanizing Press With Guid Rail 3













Rubber Mat Vulcanizing Press With Guid Rail 4Rubber Mat Vulcanizing Press With Guid Rail 5Rubber Mat Vulcanizing Press With Guid Rail 6Rubber Mat Vulcanizing Press With Guid Rail 7
