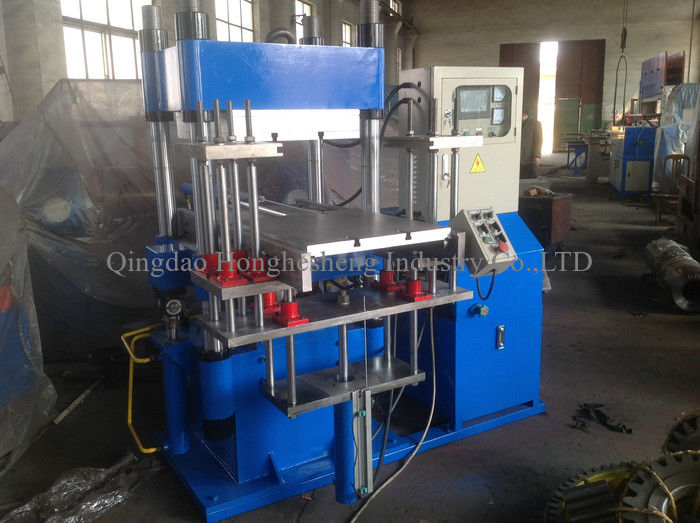

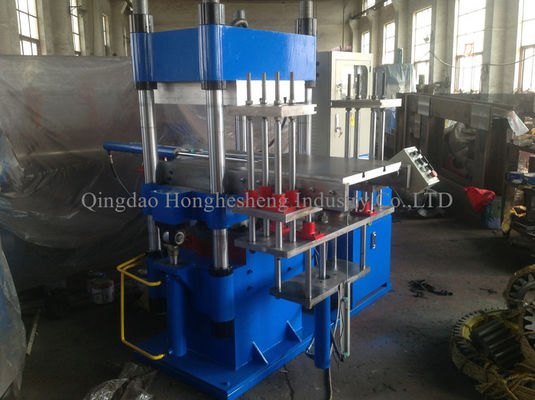

Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T

Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T
Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T

Large Image :  Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T

Product Details:
Place of Origin: Qingdao Shangdong
Brand Name: HHS
Certification: CE
Model Number: XLB800-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50000
Packaging Details: Wooden cases / Containers, etc
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year
Contact Now

Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T

Description
Type: Vulcanizer Colour: All Colour
Voltage: Customized Power(W): 11KW*2
Temperature: Max 300 Degree Working Layers: 1-4layers
Plates: 300-2100mm Hot Plates Material: Q-235 Material.
Heating: Electricity , Steam Heating , Conduction Oil Heating . Weight: 30000 Kg

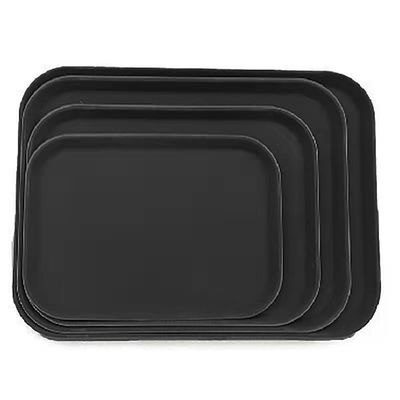

1. Product Application

Rubber vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as
non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

2. Product Paramenters



Model
XLB-800*800
XLB-1000*1000
XLB-1200*1200
mold closing force
160 ton
200 ton
250 ton
plate size
800*800mm
1000*1000mm
1200*1200mm
quantity of cylinder
1 set
1 set
1 set
piston diameter
300mm
380mm
380mm
working layer
1
1
1
daylight
300mm
300mm
300mm
unit area pressure
2.5 Mpa
2.0Mpa
1.8Mpa
Main motor
3 kw
5.5 kw
8 kw
machine weight
about 4000 kg
about 5800kg
about 6800 kg




Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 0

Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 1Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 2Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 3Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 4





















Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 5Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 6Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 7Rubber Tray Making Machine Rubber Pallet Curing Press Rubber Shallow Vulcanizing Machine 400T 8
