Product Details:
|
| Place Of Origin: | Shandong, China | Brand Name: | HHS |
|---|---|---|---|
| Model Number: | XQL-160 | Voltage: | 220V /380V /440V |
| Dimension(L*W*H): | 2240X720X2580 | Certification: | CE, ISO9001 |
| Warranty: | 1 Year | Type: | Rubber Cutting Machine |
| Weight: | 1500kg | Power(W): | 5.5 KW |
| Product Name: | High Quality Vertical Rubber Bale Cutter | Time Of Blade Cutting: | 13-16 |
| High Light: | Hydraulic Press Bale Cutter,Single Knife Bale Cutter,Bale Cutter Rubber Cutting Machine |
||

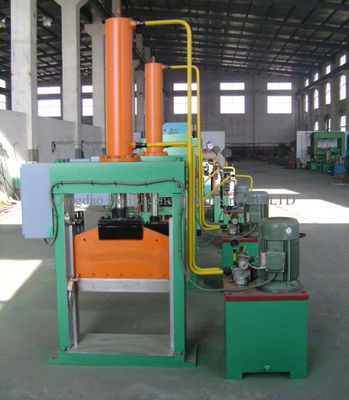

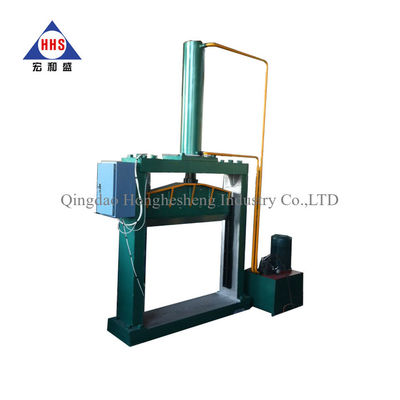

Single Knife Hydraulic Press Bale Cutter / Rubber Cutting Machine
1. Main Application
1.This machine is mainly used for cutting the natural rubber,synthetic rubber or other plastics materials into pieces.
2.The machine is a frame structure, and the cutter is directly mounted on the piston rod of the upper cylinder, and has a simple structure and is easy to operate.
3. Using high hardness and high precision circular knife cutting, pneumatic feed, pneumatic the tailstock (the tailstock has owe pressure protection device);
4. Cutting spindle replaceable steering, satisfy customer's different way to cut,
5. According to the customer's need to increase the feeding diameter to ø 300mm, at circular knife parts increase drive motor and reducer, knife seat installs the precision linear guide bearing, make cutting more stable, cutting out of finished edge is more beautiful, especially suitable for cutting large diameter of bubble surface materials;
6. Can increase the sword type flat knife slitting structure (manual cutting machine slitting functions), can be manual pushing flat blade for cutting, more convenient, meanwhile slitting flat end face, Cutting spindle domains on PE hose protect knife, prevent blade bruising,Operation is very simple,
7. Slitting length by hexagon positioning shaft decision, can set up six basic slitting width,also in six basic width of cutting, multiple cutting width accurate location
2. Technical Parameter
| Type | XQL-80 | XQL-160 |
| Blade width(mm) | 660 | 1000 |
| Stroke(mm) | 680 | 680 |
| Diamater of the cylinder(mm) | Φ150 | Φ200 |
| Motor power(kw) | 5.5 | 5.5 |
| Overall dimension(mm) | 1900x720x2580 | 2240x720x2580 |
| Weight(kg) | 1200 | 1500 |
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
