Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product

Large Image : Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product

Product Details:

Place of Origin:	Qingdao Shangdong
Brand Name:	HHS
Certification:	CE
Model Number:	XLB800-2200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 50000
Packaging Details:	Wooden cases / Containers, etc
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	60 sets/Year

Contact Now

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product

Description

Type:	Vulcanizer	Colour:	All Colour
Voltage:	Customized	Power(W):	11KW*2
Temperature:	Max 300 Degree	Working Layers:	1-4layers
Plates:	300-2100mm	Hot Plates Material:	Q-235 Material.
Heating:	Electricity , Steam Heating , Conduction Oil Heating .	Weight:	30000 Kg

1. Product Application

Rubber vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as

non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

2. Product Paramenters

Model	XLB-800*800	XLB-1000*1000	XLB-1200*1200
mold closing force	160 ton	200 ton	250 ton
plate size	800*800mm	1000*1000mm	1200*1200mm
quantity of cylinder	1 set	1 set	1 set
piston diameter	300mm	380mm	380mm
working layer	1	1	1
daylight	300mm	300mm	300mm
unit area pressure	2.5 Mpa	2.0Mpa	1.8Mpa
Main motor	3 kw	5.5 kw	8 kw
machine weight	about 4000 kg	about 5800kg	about 6800 kg

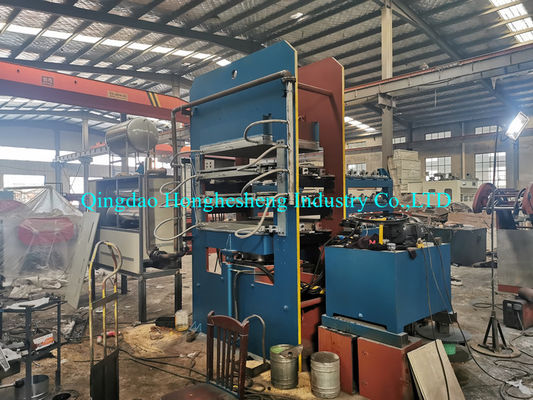

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 0

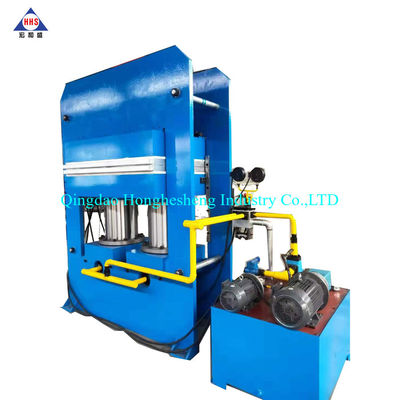

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 1

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 3

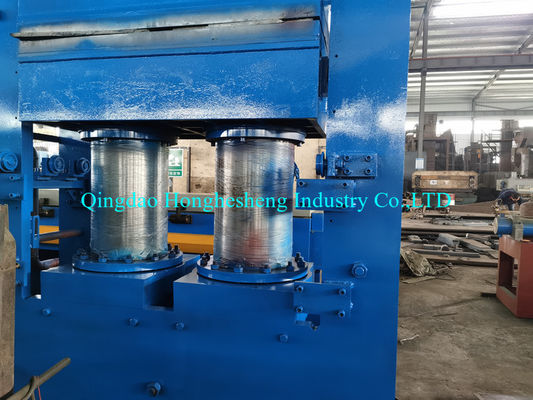

some detailed about the machine

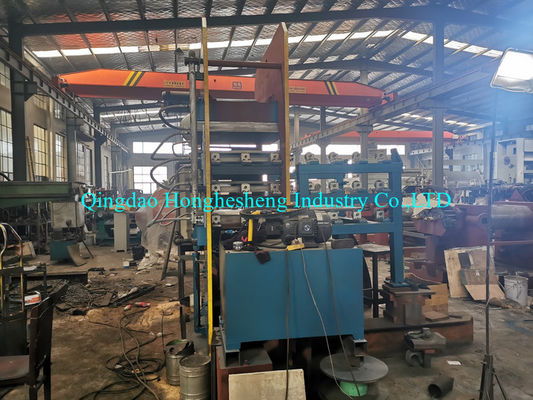

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 4

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 9

product

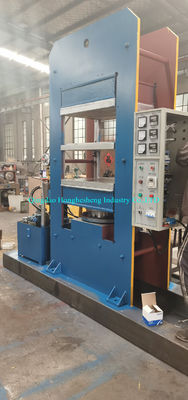

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 12

Frame Type Large Platen Rubber Vulcanizer/rubber Curing Press/hydraulic Type Curing Press Of Rubber Product 13
