plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T

Large Image : plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T

Product Details:

Place of Origin:	Qingdao Shangdong
Brand Name:	HHS
Certification:	CE
Model Number:	XLB200-1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 4000-10000
Packaging Details:	standard wood package or based on clients request
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	60 sets/Year

Contact Now

plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T

Description

Type:	Vulcanizer	Colour:	Blue White
Voltage:	Customized	Power(W):	5.5KW
Temperature:	300 Degree	Working Layers:	1-4layers
Plates:	300-2100mm	Hot Plates Material:	Q-235 Material.
Heating:	Electricity , Steam Heating , Conduction Oil Heating .	Weight:	2000 Kg
Advantage:	High Production

1. Product Application

rubber product plate vulcanizing press tonne from 25 tons to 5000 tons

we are one of the biggest manufacturer and exporter of all various of vulcanizing press.in north of CHINA. plate vulcanizer used

to make all various of rubber product, such as rubber sealing, conveyor belt, rubber mat.......features :

1. structure: frame / 4-6-8 pillars / JAW/ structure

2.total pressure: 25-5000 tons

3. any size of hot plate according to customer's request.

2. Product Paramenters

odel	XLB-650X650	XLB-600X600	XLB-700X700	XLB-800X800/1000
Clamping force	250T	300T	350T	500T
Max system pressure	21MPA	21MPA	21MPA	21MPA
Stroke	300mm	300mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	650*650mm	600600mm 700700mm	700*700mm	800800mm 1000850mm
Daylight	300mm	300mm	300mm	300mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	7.5kw	7.5kw	11kw	13kw
Control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

Model	XLB-50T	XLB-100T	XLB-150T	XLB-200T
Clamping force	50t	100T	150T	200T
Max system pressure	21Mpa	21Mpa	21Mpa	21Mpa
Stroke	250mm	250mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	380*380mm 400/400mm	400400mm 450450mm 500*500mm	500*500mm	510540mm 600550mm
Daylight	350mm	350mm	350mm	350mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	3kw	4kw	5kw	7.5 kw
control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

3. Picture

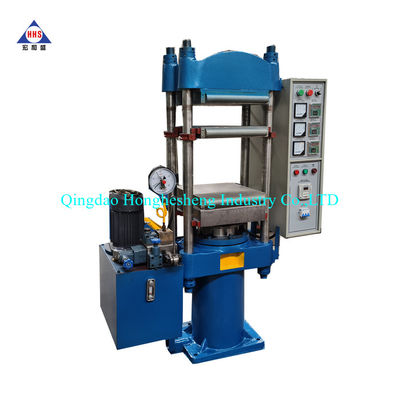

plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T 2

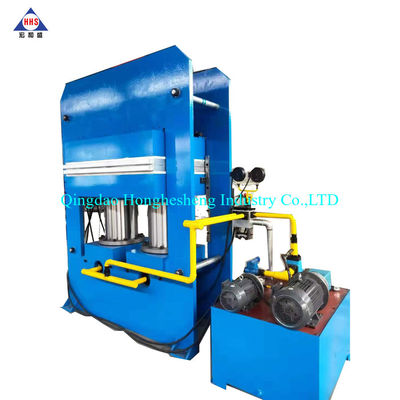

plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T 3

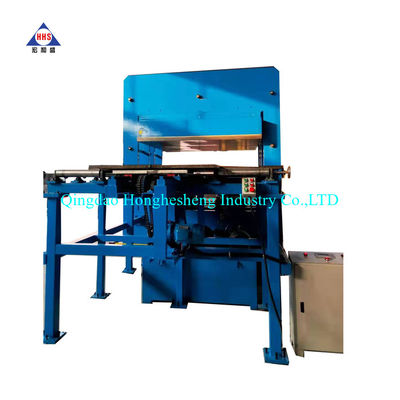

plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T 4

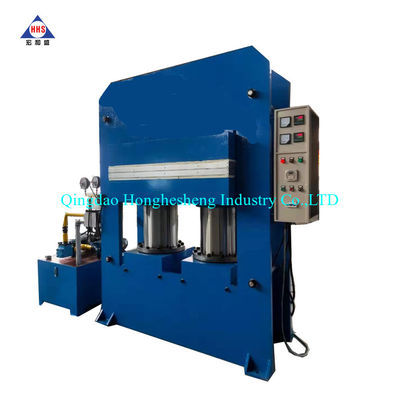

plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T 6

plate vulcanizing press for rubber products ,total pressure from 25 T to 10000 T 9
