Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | Effective |
1. Structure:
♥ This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet
♥Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
1 Technical Parameters
|
Parameters/version
|
XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 | XLB750*850*2 | XLB1000*1000*2 |
| Mould closing force | 0.25MN | 0.5MN | 0.8MN | 1.0MN | 1.6MN | 2.5MN |
| Hot plate spacing | 125mm | 125mm | 125mm | 125mm | 125mm | 200mm |
| Hot plate layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Plunger stroke | 250mm | 250mm | 250mm | 250/500mm | 250mm | 400mm |
| Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/Stream | Electricity/stream |
| Main motor power | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 3kw | 5.5kw |
| The thermal power | 2.4kw/board | 3kw/board | 3kw | 7.5kw/board | 9kw/board | 10.8kw/board |
| Size(L*W*H)mm | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660 | 2100*1010*1900 | 2400*960*2500 |
| Weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |
if you make nonstandard machine, kindly confirm me below ,so that we can make precise quotation.
-1 what is your rubber plate size ? 500*500mm?1000*1000mm?
-2 pressure? 25T ,50T,80T.100T?
-3 How many layers? 2 plates,1 layer?3 plates ,2 layers?.........
-4 distance between hot plates? 125mm? or other?
-5 what is the plunger stroke? 250mm? 500mm?
-6 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently.
3 why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity

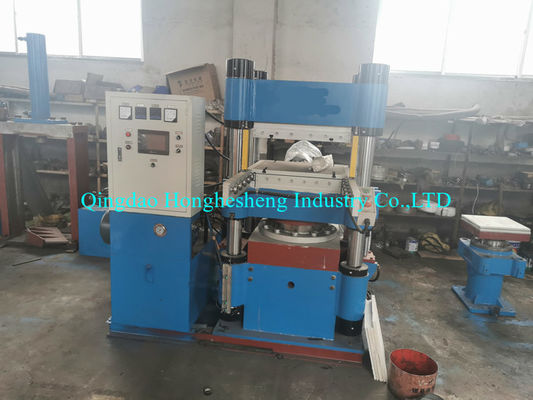

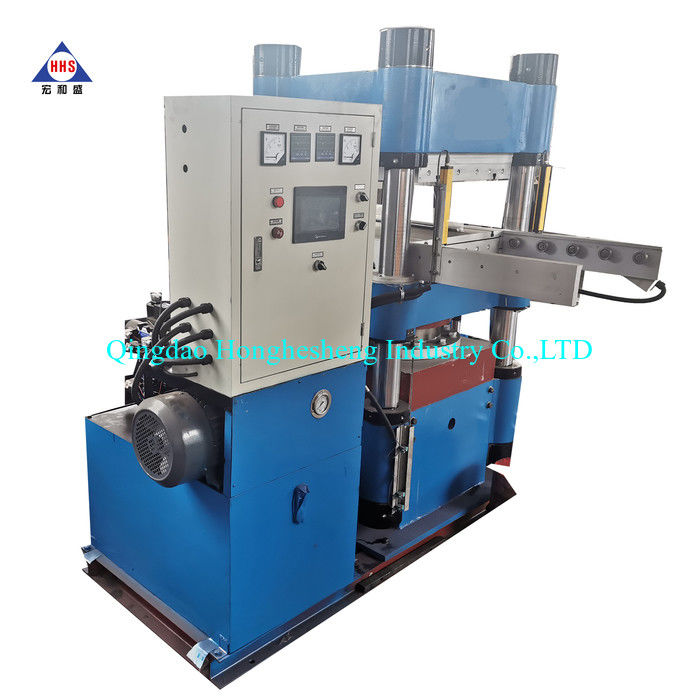

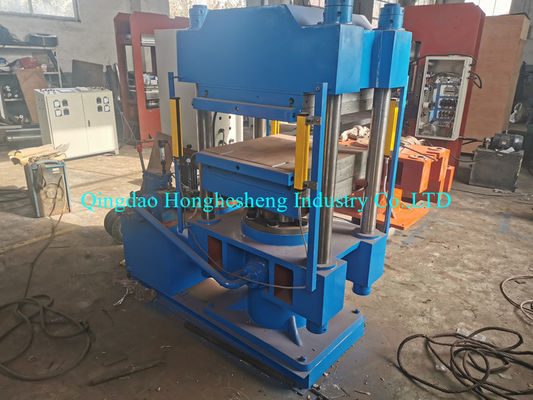

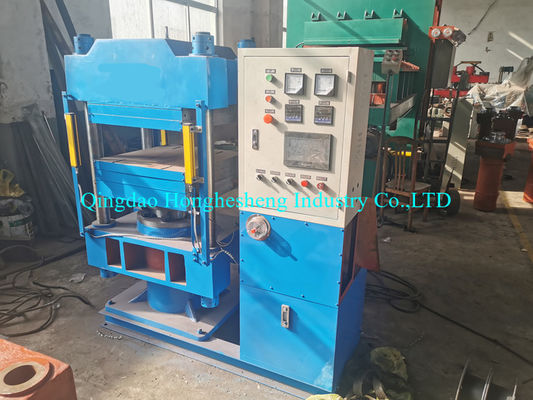

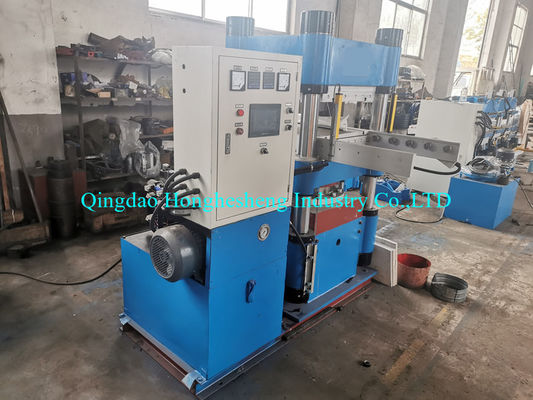

4 detailed pictures
