Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 11KW*2 |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 30000 Kg |
rubber plate vulcanizer machine /rubber car mat hot vulcanizing machine

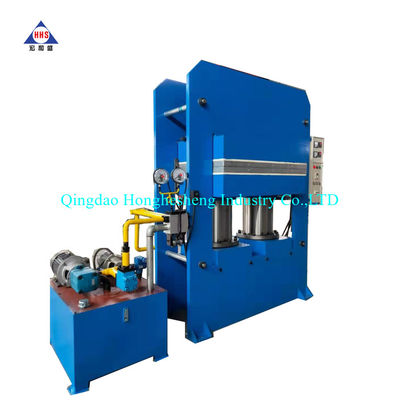

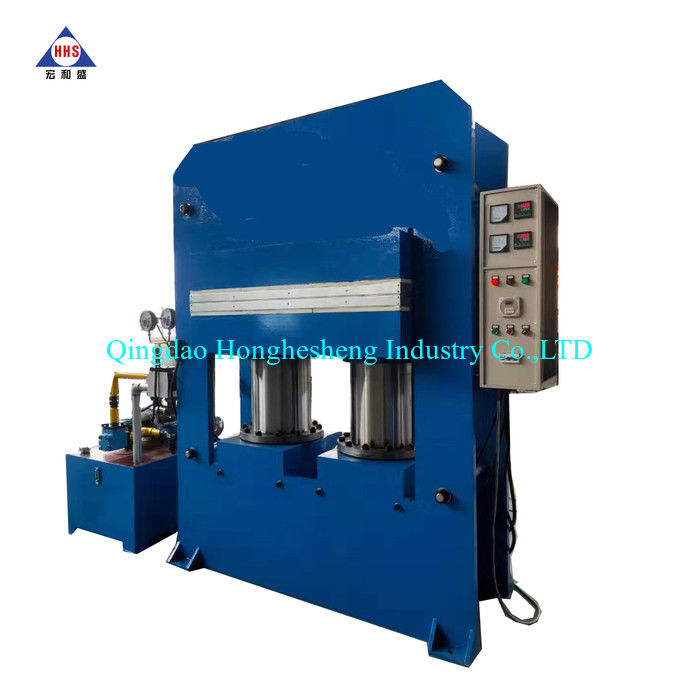

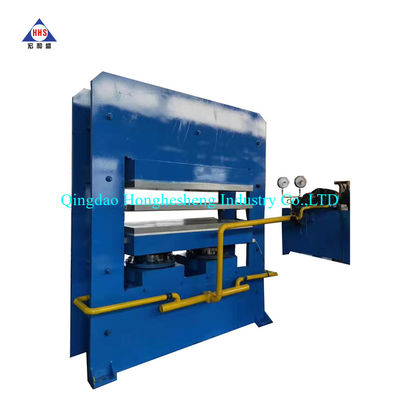

1. Pictures of the rubber frame vulcanizer machine
1. The way of heating the plate adopts electrical heating, steam heating or heat conducting oil heating.
2. Heating Plate Material: used good quality steel-Q235.
3. Adopts automatic PLC touch screen control or electric relay manual control system, can realize the clamping, exhaust, temperature control, curing time, alarm, mold unloading function. Touch screen can display the plate temperature of each heating zone.
4. Hydraulic cylinder made of ZG270-500 material, the plunger adopts hard alloy cast iron dense texture, after casting and finish grinding; sealing hydraulic cylinder used of YX type sealing ring.
5. Hydraulic system: the hydraulic station using the well-known brands at home and abroad, can realize the automatic of mold, exhaust and mold unloading.
All of those all has several type components, like the power of motor, the size of hot plate, our engineer and me will combine your requirement assemble the best equipment, trust us.
Frame type rubber plate vulcanizer machine
| Type | XLB-D780*600 | XLB-D800*1000 | XLB-D900*1100 | XLB-D1000*1200 | XLB-D1350*1500 |
| Total pressure (T) | 160 | 250 | 300 | 500 | 1000 |
| Plate size (mm) | 780*600 | 800*1000 | 900*1100 | 1000*1200 | 1350*1500 |
| Plate clearance (mm) | 200 | 140 | 150 | 150 | 150 |
| Layer number | 2 | 4 | 4 | 4 | 6 |
| Motor power (kw) | 5.5 | 7.5 | 7.5 | 11 | 22 |
