Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
First Introduction

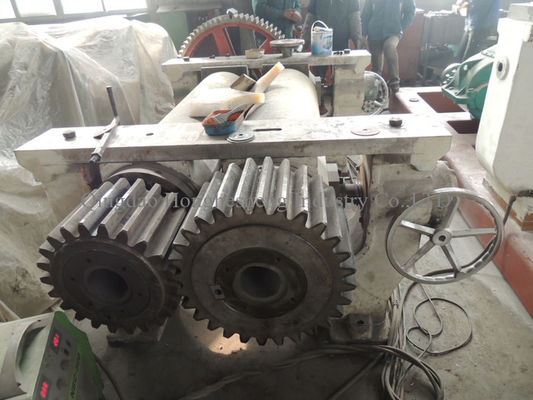

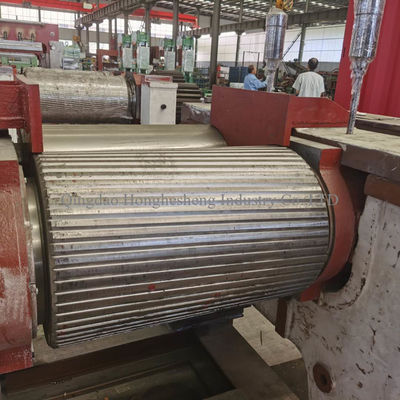

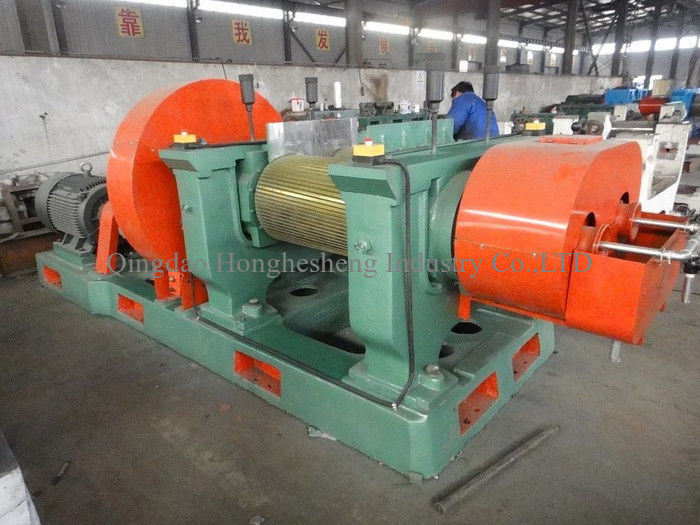

This machine is used for breaking, plasticating and mixing of rubber materials. The rollers are made of chilled cast iron with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.
We promise the good quality and competitive price.
Pls feel free to contact me if you need our cracker mill at any time.
Parameter of the Rubber Cracker mill:
| Parameters/version | XKP-400 | XKP-450 | XKP-560 |
| Front roll diameter | 400 | 450 | 560 |
| Back roll diameter | 400 | 450 | 510 |
| Roll length | 600 | 650 | 800 |
| Front roll surface speed (m/min) | 17.32 | 23.2 | 25.56 |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
| Max. nip | 8 | 8 | 8 |
| Feeding capacity per (kg) |
200-300 |
600-800 |
1500 |
| Power(kw) | 45 | 60 | 75 |
| Size(l*w*h) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
| Weight(kg) | 7000 | 12000 | 19000 |
N
