Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press

Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press
Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press

Large Image :  Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press

Product Details:
Place of Origin: Qingdao Shangdong
Brand Name: HHS
Certification: CE
Model Number: XLB800-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50000
Packaging Details: Wooden cases / Containers, etc
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year
Contact Now

Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press

Description
Type: Vulcanizer Colour: All Colour
Voltage: Customized Power(W): 11KW*2
Temperature: Max 300 Degree Working Layers: 1-4layers
Plates: 300-2100mm Hot Plates Material: Q-235 Material.
Heating: Electricity , Steam Heating , Conduction Oil Heating . Weight: 40000 Kg

1. Product Application

This machine consists of main machine , automatic electrical cabinet , hydraulic station ,automatic adjustable rail device ,.The machine is frame structure and has four working layer .
It is widely used for heating , vulcanizing , and solidifying various kinds of tire tread .

2. Product Paramenters



Model
XLB-800*800
XLB-1000*1000
XLB-1200*1200
mold closing force
160 ton
200 ton
250 ton
plate size
800*800mm
1000*1000mm
1200*1200mm
quantity of cylinder
1 set
1 set
1 set
piston diameter
300mm
380mm
380mm
working layer
1
1
1
daylight
300mm
300mm
300mm
unit area pressure
2.5 Mpa
2.0Mpa
1.8Mpa
Main motor
3 kw
5.5 kw
8 kw
machine weight
about 4000 kg
about 5800kg
about 6800 kg



1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX type polyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant . The Oil seal is NOK brand from Janpan .

2. Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature,
automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc

3.The vulcanizing temperature can be set and showed in the digital displan . For example , if you need 250 C , just set250 C in the digital panel .When it reaches your aimed temperature , the temperature will stop to rise and keep stable.Sensor are installed in the heating plate and connect with the temperature indicator in the heating plate . It will show clear the temperature of every heating plate

4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically

5.frame plate is made of high quality 45 steel . The hardness , wear resistance and abrasive resistance is high improved by
quenching and tempering.The pillar will be plated with chrome

6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation

7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time

8.we will install the IR sensor in both side of press to protect safety of any opeators

9.The hydrualic pupm and valve will be use Yuken Hydraulic pump & valve

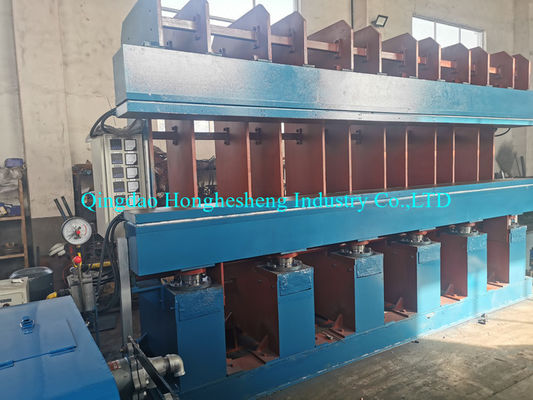

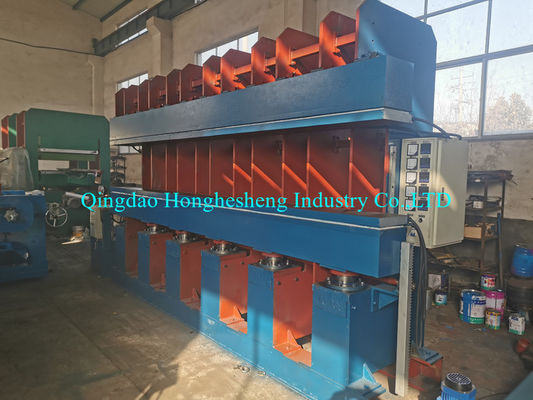

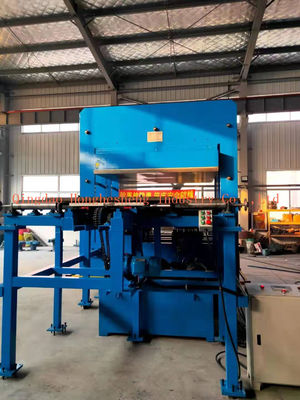

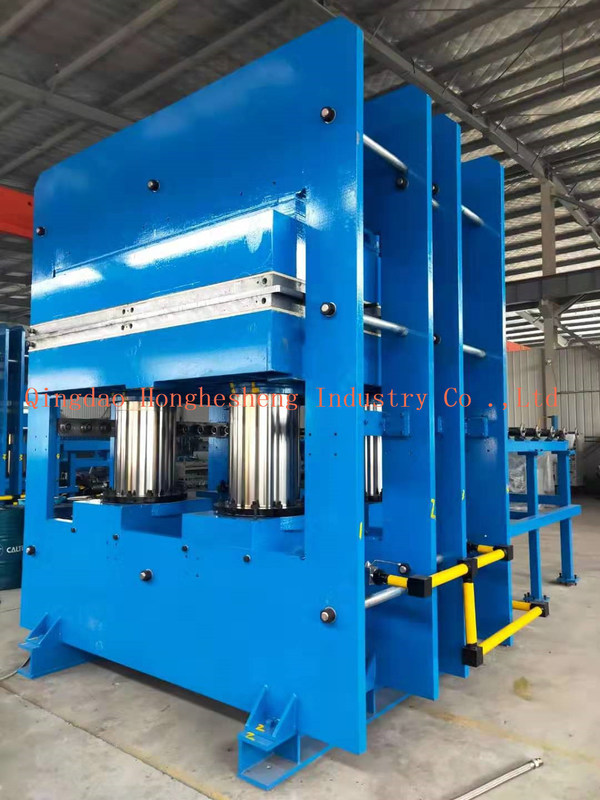

3 product pictures



Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 0Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 1Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 2

Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 3



Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 4Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 5











Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 6



Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 7Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 8Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 9Rubber Tread Making Plant /Tire Tread Making Machine /Plate Vulcanizing Press 10

















Tag:

2100mm Plate Vulcanizing Press,

600*800mm Rubber Vulcanizing Press,

250t Hydraulic Rubber Moulding Machine
