Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 11KW*2 |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 40000 Kg |

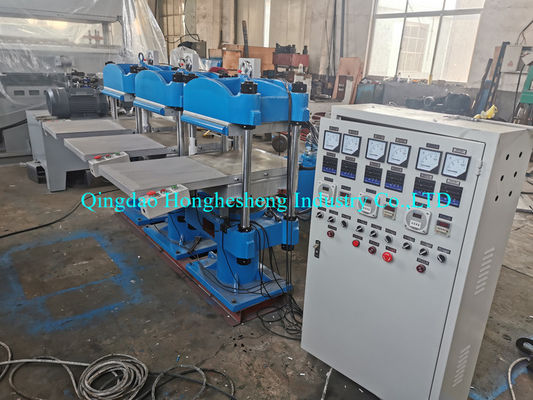

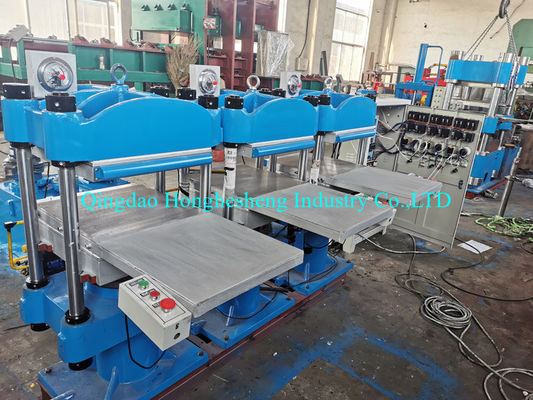

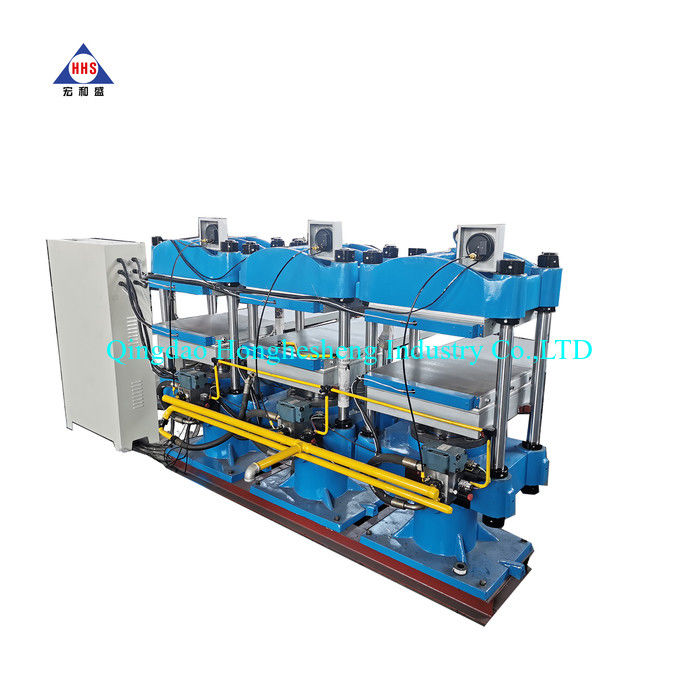

Details of rubber vulcanizing machine:
This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
The electrical control uses the advanced PLC control technology,may realize automati-cally controls when, automatically operates the mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigra-tion type,the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
1.Main uses:
The Curing Press mainly works for the clampdown of rubber, which can be used as normal hydraulic machine.
We have both column and frame structure.
2.Advantages:
1. Simple and convenient structure, flexible operation,commodious space. The cylinder and plunger are made up of high–quality materials.
2. Hydraulic station and electric cabinet are Located in both sides of the main engine.
3. Conveniently operated.
4. Without oil spilling or off pressure.
5. Excellent reputation.
3. Technical Parameter as follows:
| Type | XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 | XLB750*850*2 | XLB1000*1000*2 |
| Total pressure(MN) | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
| Daylight(mm) | 125 | 125 | 125 | 125 | 125 | 200 |
| Working layer number | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Plate size(mm) | 350*350 | 400*400 | 500*500 | 600*600 | 750*850 | 1000*1000 |
| Plunger stroke | 250 | 250 | 250 | 250/500 | 250 | 400 |
| Heating way | Electricity/steam | Electricity/steam | Electricity/steam | Electricity/steam | Electricity/steam | Electricity/steam |
| Main motor power | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Stucture form | Strain rod | Strain rod | Strain rod | Strain rod | Strain rod/strain plate | Strain plate |
We can according to customers request design and produce all kinds of non-standard rubber vulcanizing machinery,
If you are interested in our products contact us freely,
