Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 3kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/220V/450V |
| Year: | New | Product Name: | Tyre Cutting Machine |
| Function: | Tyre Cutting | Raw Material: | Waste Tire ,truck Tire,car Tire |
| Usage: | Used Tire Recyling,Waste Tyre Dispose |
product Introduction
Technical Parameters of Waste tire sidewall cutter tire cutting machine

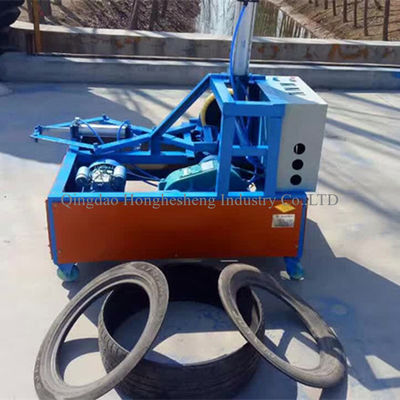

1).model QQJ-20 bead ring cutter machine,
It is used to cut off the bead and steel wall with steel wires from waste tires.
Motor power is 5.5kw,
overall size is 1100x900x1700mm(LXWXH)
output is tire bead and sidewall , tread.
Capacity:45-60 tires/h, be equal to 1500-2250kg/h.
2).model QTJ-380 strip cutter
It is used to cut the body of waste tire into strip type, so the strip can be feed to block cutter.
Motor power is 5.5kw
Overall size is 1290x870x1550
Input : the tire tread and side wall and output of QQJ-20 bead cutter.
Output is 3-5cm width rubber strip
Capacity is 15-20pcs tires per hours, be equal to 500-750kg tires per hour.
3). model QKJ-45 block cutter
It is used to cut the waste tire strip into block with 5cmx5cm size
Motor power:11kw
Overall size is 1130x830x1100mm(LXWXH)
Input is the rubber strips from the model QTJ-380 strip cutter.
Output is 30mmx30mm rubber blocks
Capacity is 30-40pcs waste tires per hours , be equal to 1000-1500kg waste tire per hour
4). model YQJ-285 steel wire separator
It is used to separate the steel wires from the side wall of waste tires.
Motor power: 15kw
Overall size: 1520x1150x1210mm(lxwxh)
Input is bead rings from the QQJ-20 bead cutter.
Output is steel wires and tire rim scraps.
Capacity is 30-40pcs waste tires per hours, be equal to 1000-1500kg tire per hours.
