Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 15kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/220V/450V |
| Year: | New | Dimension(L*W*H): | 1500X900X1300mm |
| Weight (KG): | 1000KG | End Product: | Traveler |
| High Light: | 18.5KW Waste Tyre Recycling Plant,65Pcs/H Waste Tyre Recycling Plant,18.5KW Bead Steel Wire Separator |
||

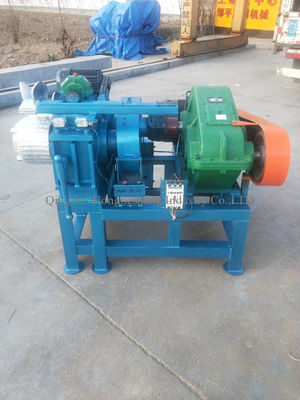

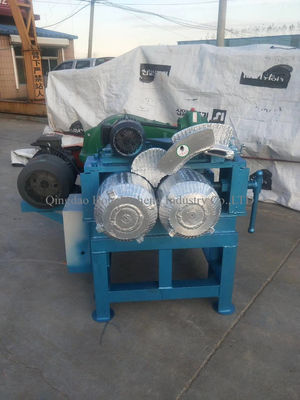

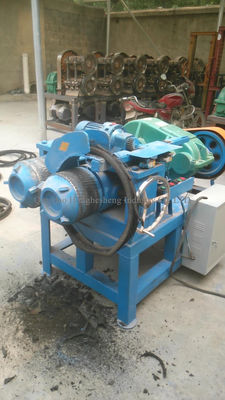

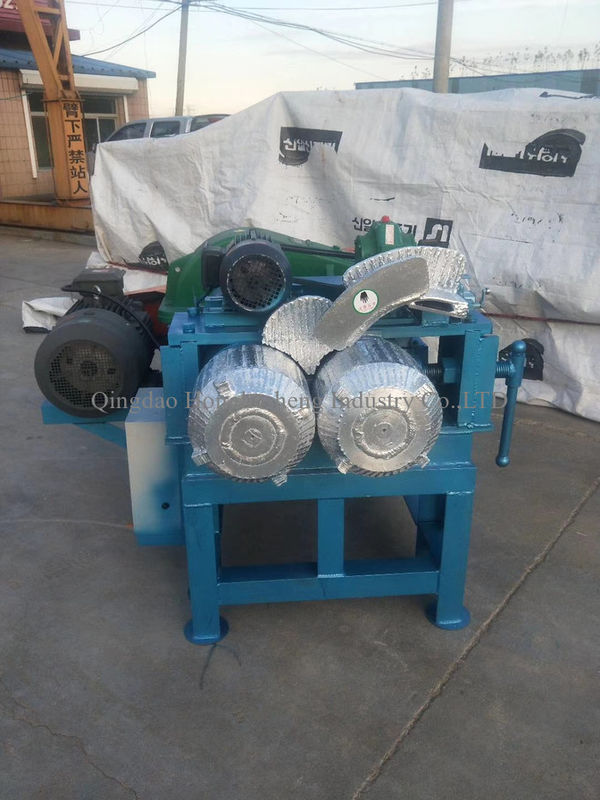

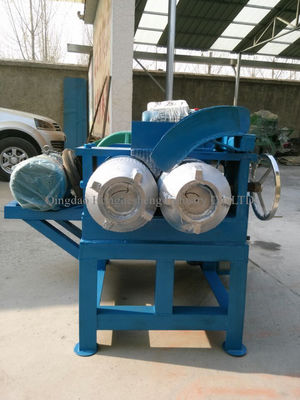

bead steel wire separator/ Rubber recycling machine
1. Applications:

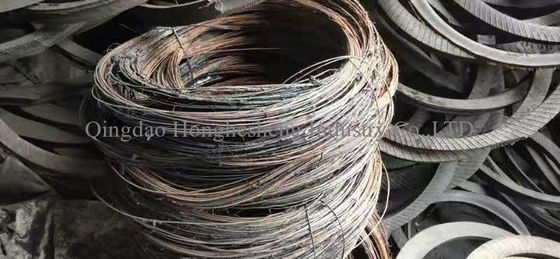

It is utilized to separate rubber and steel wire of bead in order to get whole steel wire.
2. Features:
It is easy operated, easy to be installed and maintained, high efficiency and clean etc.
3. Main technical spec.:
| 1.Production capacity | 65Pcs/h |
| 2.Motor power | 18.5KW |
| 3.Motor rotating speed | 1440R/Min |
| 4.Speed reducer model | 450 |
| 5.Speed ratio | 40.17 |
| 6.Machine weight | 1700kgs |
| 7.Overall dimension | 1800*1500*1200mm |
| 8.Voltage(V) | 380 |
| 9.Frequency(Hz) | 50 |
4.Delivery time: 10 days
packing: suit for long time sea transport.
5. Process:
waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
