Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | 420rpm Waste Tyre Recycling Plant,SGS Waste Tyre Recycling Plant,11kw Used Tire Cutting Machine |
||
Detailed Product Description
1. Mainly used for the cutting of the tyre
2. High Capacity
3. High hardness &abrasion resistance
4. CE/SGS/ISO9001
1. Ring cutter
| Item | Specification |
| motor power | 5.5 |
| Speed of main screw | 46.8 r/min |
| MAX Diameter of tyre | 1200mm |
| Dimension | 1100*900*1700mm |
|
Purpose :To cut the steel ring from the tyre
|
|
2.Strips cutter
| Item | Parameter |
| Motor Power | 5.5kw |
| Disc Diameter | 380mm |
| Rotate Speed | 18.4r/min |
| Dimension | 1290*870*1550mm |
| Purpose: To cut the old tyre intostrip | |

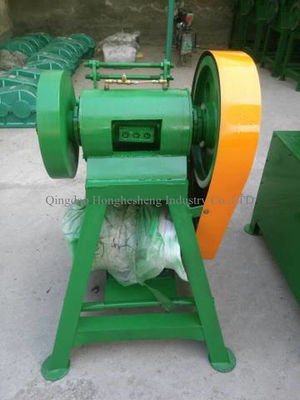

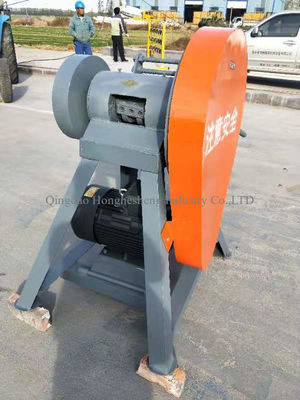

3.Block cutter
| Item | Specification |
| motor power | 11kw |
| Speed of main screw | 420 r/min |
| Out diameter of cutter | 200mm |
| Dimension | 1130*830*1100mm |
| Purpose: To Cut the strip into block | |
4.Bead wire remover
| Item | Specification |
| Motor power | 15 KW |
| Linear speed of front roller | 15.5 m/min |
| Ratio of speed | 1.1 |
| Dimension | 1520*1150*12101mm |
| Purpose:To Separate the steel ring from the rubber after 1 step. | |
