Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | 200mm Used tire cutting machine,420r/ Min Used tire cutting machine,15kw Tyre block cutting machine |
||
New type radial tyre block cutter /tyre cutter for radial tyre

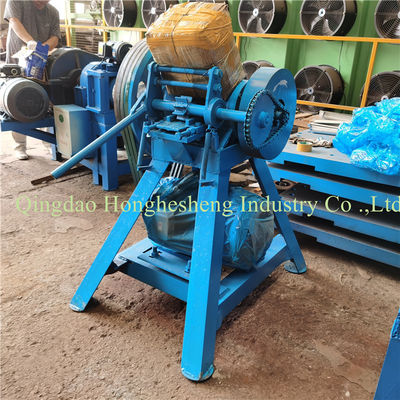

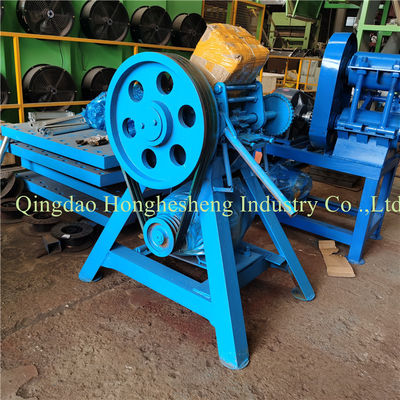

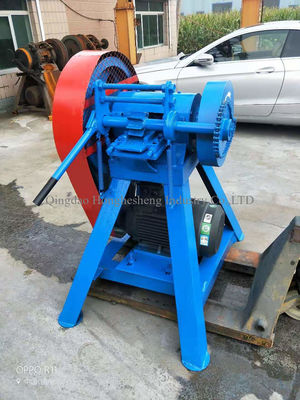

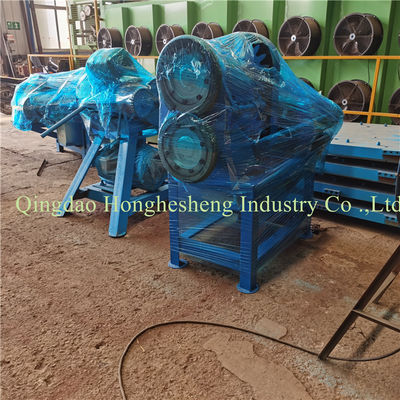

Used tire cutting machine / Tyre block cutting machine / Lump cutter
This machine can cut the strips tire into 25mm- 50mm blocks. And then the crusher machine can shredder them into granules
Paremeter
| Item | Specification |
| motor power | 15kw |
| Speed of main screw | 420 r/min |
| Out diameter of cutter | 200mm |
| Dimension | 850x850x1250 |
| Purpose: To Cut the strip into block 50mm or 25mm by adjusting blade number and belt width | |
Structural principle
1. The device consists of frame, motor, transmission mechanism, balance equipment, two move knives and a fixed knife, and the compression gear etc.
2. Knife is made from alloy, hard wear resistant, can be used after repeatedly grinding.
3. Uniform speed of the device, shear force, low energy consumption, easy operation
and safety.
