Rubber Vulcanizing Press Machine /Rubber Compression Molding Machine/Hydraulic Press Machine For Vulcanization

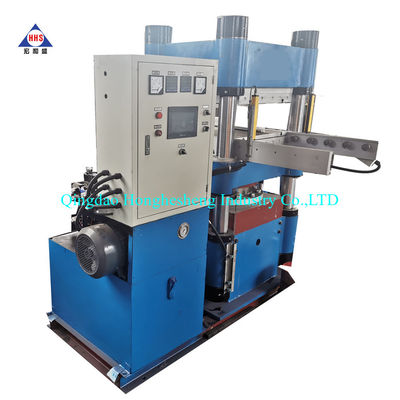

Large Image : Rubber Vulcanizing Press Machine /Rubber Compression Molding Machine/Hydraulic Press Machine For Vulcanization

Product Details:

Place of Origin:	Qingdao Shangdong
Brand Name:	HHS
Certification:	CE
Model Number:	XLB50-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 4000-10000
Packaging Details:	standard wood package or based on clients request
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	60 sets/Year

Contact Now

Rubber Vulcanizing Press Machine /Rubber Compression Molding Machine/Hydraulic Press Machine For Vulcanization

Description

Type:	Vulcanizer	Colour:	Blue White,customized
Voltage:	Customized	Power(W):	5.5KW
Temperature:	300 Degree	Working Layers:	1-4layers
Plates:	300-2100mm	Hot Plates Material:	Q-235 Material.
Heating:	Electricity , Steam Heating , Conduction Oil Heating .	Weight:	3000 Kg
Advantage:	High Production

1. Product Application

This machine consists of main machine , automatic electrical cabinet , hydrualic station ,automatic adjustable rail device ,

automatic ejector system , etc .The machine is pillar structure and has one working layer .
It is widely used for heating , vulcanizing , and solidifying various kinds of rubber molded products , such as seal , o ring ,
gasket and similar products

Main Features

1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX type polyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant . The Oil seal is NOK brand from Janpan .

2. Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature,
automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc

3.The vulcanizing temperature can be set and showed in the digital displan . For example , if you need 250 C , just set250 C in the digital panel .When it reaches your aimed temperature , the temperature will stop to rise and keep stable.Sensor are installed in the heating plate and connect with the temperature indicator in the heating plate . It will show clear the temperature of every heating plate

4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically

5.frame plate is made of high quality 45 steel . The hardness , wear resistance and abrasive resistance is high improved by
quenching and tempering.The pillar will be plated with chrome

6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by
the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation

7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time

8.we will install the IR sensor in both side of press to protect safety of any opeators

9.The hydrualic pupm and valve will be use Yuken Hydraulic pump & valve

2. Product Paramenters

odel	XLB-650X650	XLB-600X600	XLB-700X700	XLB-800X800/1000
Clamping force	250T	300T	350T	500T
Max system pressure	21MPA	21MPA	21MPA	21MPA
Stroke	300mm	300mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	650*650mm	600600mm 700700mm	700*700mm	800800mm 1000850mm
Daylight	300mm	300mm	300mm	300mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	7.5kw	7.5kw	11kw	13kw
Control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

Model	XLB-50T	XLB-100T	XLB-150T	XLB-200T
Clamping force	50t	100T	150T	200T
Max system pressure	21Mpa	21Mpa	21Mpa	21Mpa
Stroke	250mm	250mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	380*380mm 400/400mm	400400mm 450450mm 500*500mm	500*500mm	510540mm 600550mm
Daylight	350mm	350mm	350mm	350mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	3kw	4kw	5kw	7.5 kw
control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

3. Picture

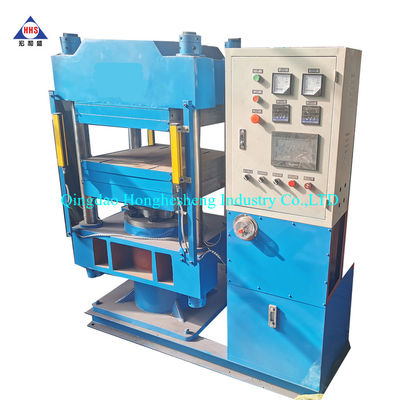

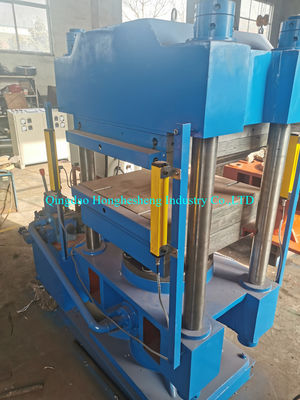

Rubber Vulcanizing Press Machine /Rubber Compression Molding Machine/Hydraulic Press Machine For Vulcanization 0

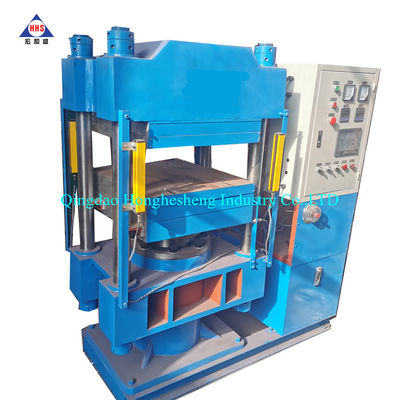

Rubber Vulcanizing Press Machine /Rubber Compression Molding Machine/Hydraulic Press Machine For Vulcanization 2

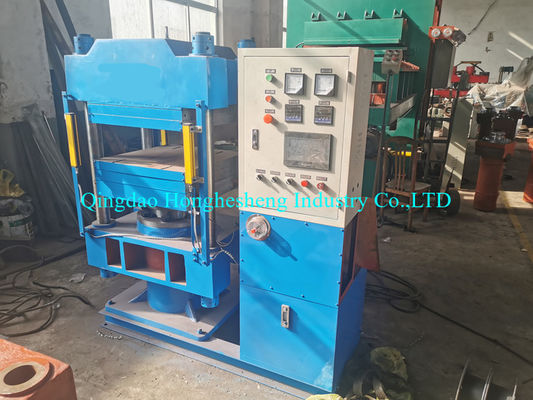

Rubber Vulcanizing Press Machine /Rubber Compression Molding Machine/Hydraulic Press Machine For Vulcanization 4
