Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 3000 Kg |
| Advantage: | High Production |

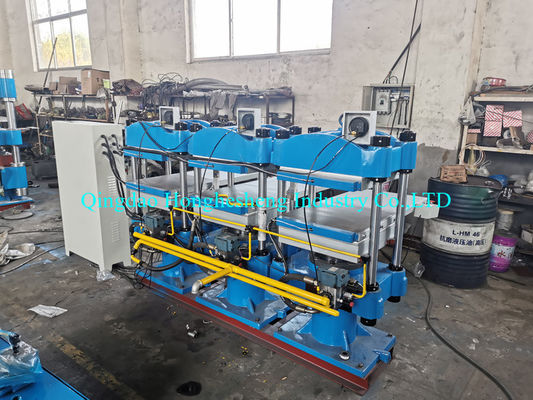

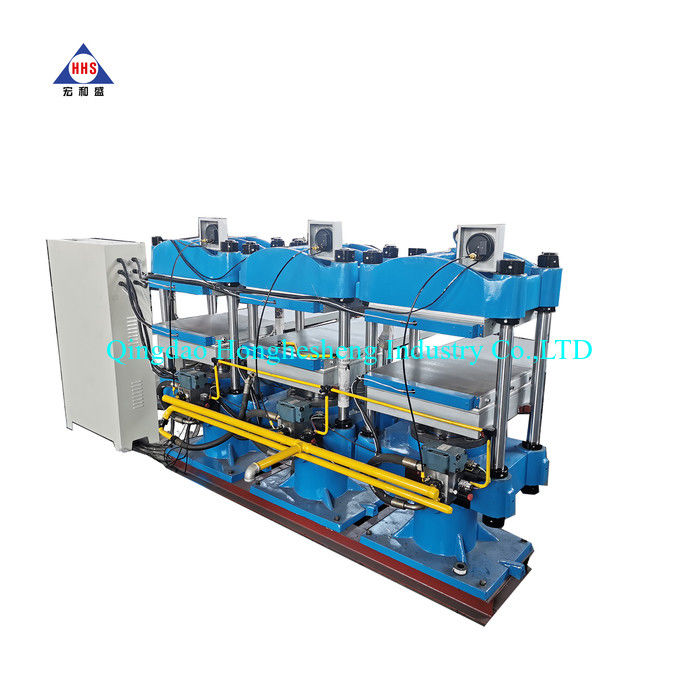

Automatic solid tire vulcanizer is adopt frame structures, the platen and plunger are all made of superior material, they are accuracy processed and have high wear-resistance.
This series of vulcanizing press with high press in unit area, so that could ensure the quality. This machine were equipped with pulling and pushing device to reduce work strength.
Electric system adopts PLC control, convenient and correct.
To produce large rubber board, damping and also to produce solid tire.
This machine could produce rubber watertight strip, rubber tile and other hot-pressed material product.
The main parameter of the machine
| type | XLB-800x800 | XLB-1000x1000 | XLB-1200x1200 | XLB-1500x1500 |
| nominal mold clamping force(MN) | 1.60 | 2.00 | 2.50 | 3.15 |
| plate size(mm) | 800x800 | 1000x1000 | 1200x1200 | 1500x1500 |
| number of cylinder | 1 | 1 | 1 | 1 |
| diameter of piston(mm) | 360 | 400 | 450 | 500 |
| stroke of piston(mm) | 300 | 300 | 300 | 300 |
| plate clearance(mm) | 300 | 300 | 300 | 300 |
| unit area pressure of hot plate(Mpa) | 2.5 | 2.0 | 1.8 | 1.5 |
| main motor power(kw) | 3.0 | 5.5 | 8.0 | 8.0 |
| overall size(mm) | 900x1600x2500 | 1100x1900x3600 | 1300x2100x4000 | 1600x2450x4200 |
| weight(kg) | 4000 | 5800 | 6800 | 8000 |
