Features:

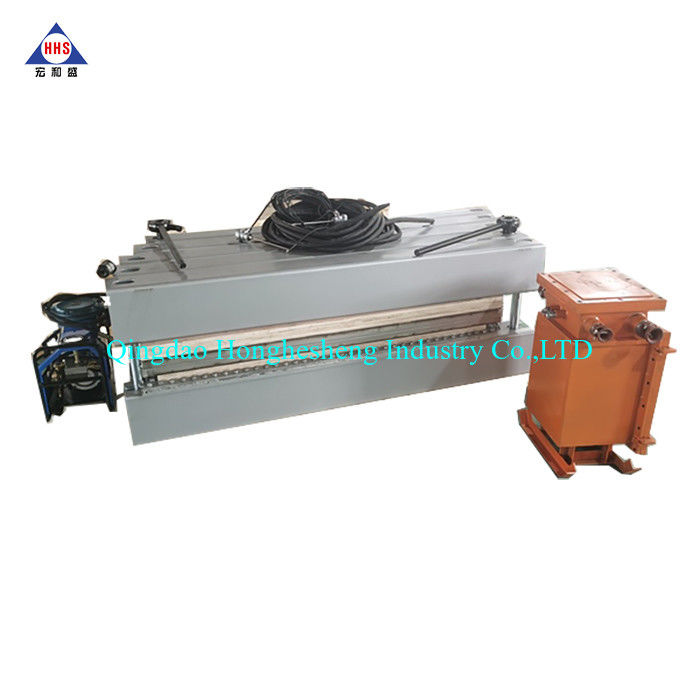

1.The electric control box of hot splicing press is made of industrial grade aluminum alloy,small volume and light weight. Three-phase source of power supply.
2.Water press system can supply stable press.
3.Fast heating, steady heating temperature.
4.Equipped with auto electric control,easy to operate.
5. Degree of the heating platen: 22°/17°/ 20° (rectangle and other degree is optional)
6.High pressure water pump, adopted three cylinder plunger pump driven by single-phase machine,with the characteristics of compact structure, small volume, reliable, maintenance friendly.
7.Sturdy heating plate with hydraulic pressure system ensures temperature unifor-
mity, high pressure can reach Max.2.0 MPa ;Heating plate including air or water cooling.
8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9.Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10.Rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11.Users could order spare electric pumps additionally according to requirements.
Model for Choice( or Just me your belt size, belt type)
12.Customization/OEM:Different heating platen size and combination
Technical Specification:
1. Vulcanization pressure: 1.0-2.0Mpa or customized;
2. Vulcanization temperature: 145 °C;
3. Surface temperature difference of vulcanized plate: ± 3 °C;
4. Heating-up time (145 °C): ≤30 mins;
5. Power supply voltage: 220V to 1140V; 50/60 Hz; 3Ph;
6. Output power of Electronic Control Box: 36 KW;
7. Temperature adjustment range: 0-200 °C;
8. Timing adjustment range: 0-99 min;
9. After the pressurization of 0.8 MPa, the gap between upper and lower heating plate is not more than 0.4 mm.
