Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 11KW*2 |
| Temperature: | Max 300 Degree | Plates: | 300-2100mm |
| Hot Plates Material: | Q-235 Material. | Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
| Weight: | 50000 Kg | ||
| High Light: | 250 Ton Plate Vulcanizing Press,Plate Vulcanizing Press 8KW,1200x1200mm Tire Tread Making Machine |
||

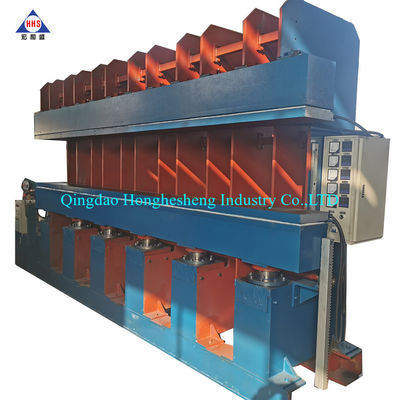

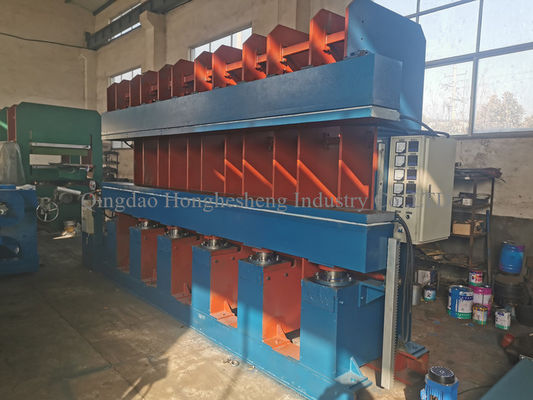

Tire Tread Vulcanizer For Tyre Retreading / Precure Rubber Tread Making Machines
Usage:

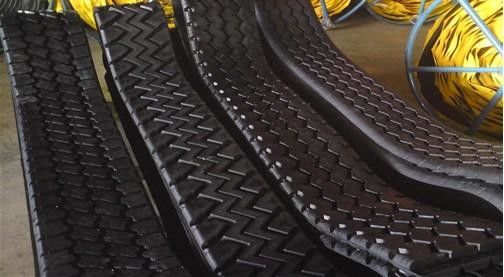

Strip precured tread vulcanizing press is used to produce strip precured tread for renovation of all kinds of tires. And is suitable for cold renovation procedure of tires.
We can supply strip precured tread vulcanizing press with platen size 4100*350, 4600*540, 6600*510, 4000*700, 3800*360
5500*360, 3800*700, total pressure 400t, 650t, 750t, 900t, 1100t, and other models according to the requirements of the buyer. the press can be equpped with mould moving plate per layer hot plate, it is easy to loading and discharge products.
Please contact us if you feel free.
Technical specifications:
| Data/Model |
XLE-Q4100X 360X5 |
XLE-Q550X 360X5 |
XLE-Q4200X 700X4 |
XLE-Q11000X 400X5 |
| Total pressure (MN) | 6.00 | 8.00 | 10.00 | 26.00 |
| Plate size L*W (mm): | 4100X360 | 5500X360 | 4200X700 | 11000X400 |
| Daylight opening (mm): | 200 | 200 | 200 | 200 |
| Working layer: | 5 | 5 | 4 | 5 |
| Diameter of cylinder (mm) | 250 | 250 | 360 | 360 |
| Number of cylinder (sets) | 6 | 8 | 5 | 14 |
| Max. stroke of cylinder (mm) | 800 | 800 | 800 | 800 |
| Max. pressure of hydraulic system (Mpa): | 20.5 | 21.5 | 20 | 20 |
| Motor power (kw): | 7.5 | 21.5 | 22 | 44 |
| Overall size L*W*H (mm): | 5470*2280*3285 | 7600*2700*3100 | 6690*2410*3345 | 15500X3400X4200 |
| Weight (kg) | 26000 | 45000 | 48000 | 132000 |
