Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 3kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/220V/450V |
| Year: | New | Product Name: | Tyre Cutting Machine |
| Function: | Tyre Cutting | Raw Material: | Waste Tire ,truck Tire,car Tire |
| Usage: | Used Tire Recyling,Waste Tyre Dispose | ||
| High Light: | Semi Automatic Tire Ring Cutter,120cm Tire Ring Cutter,Tire Bead Ring Cutting Machine |
||

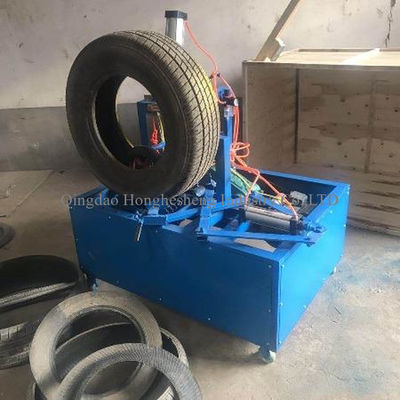

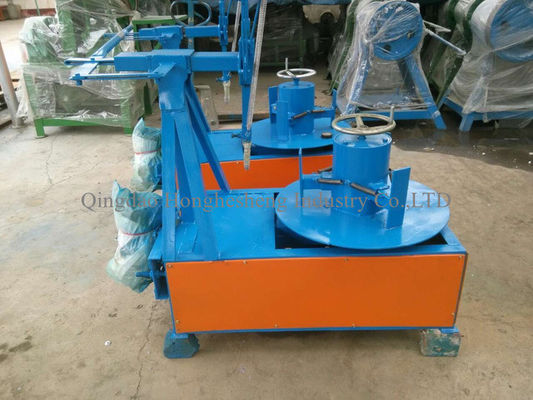

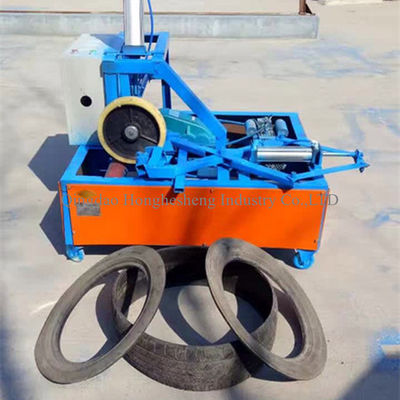

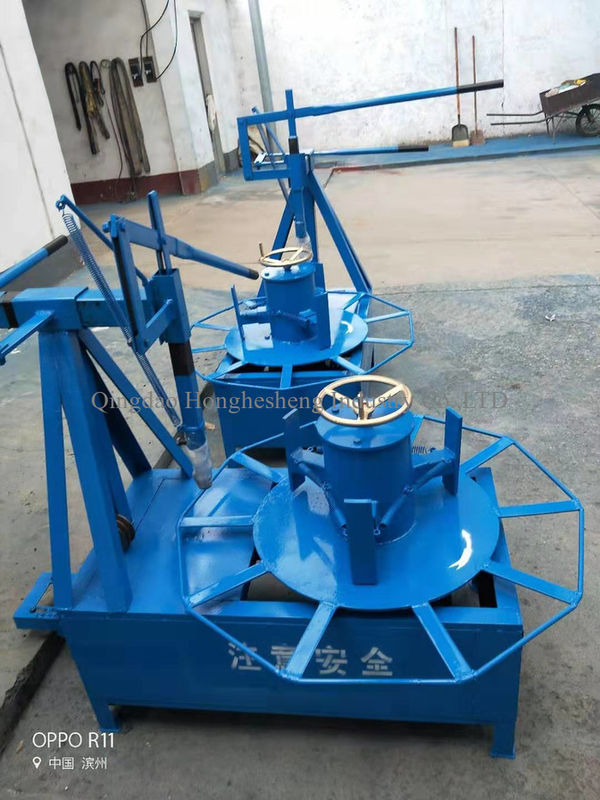

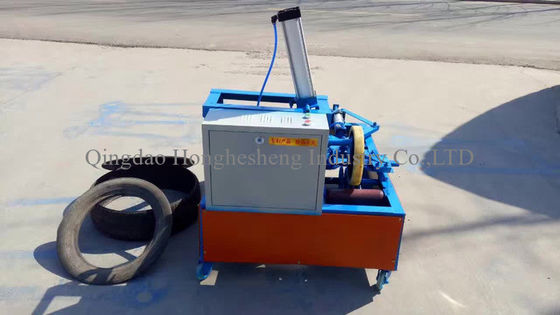

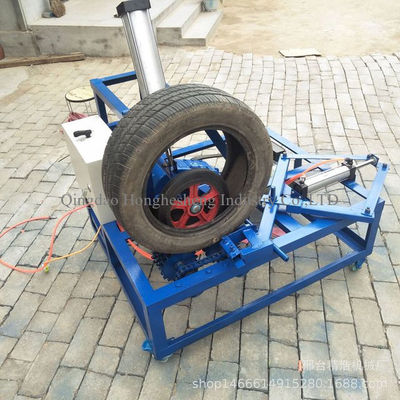

Semi-Automatic Tire Ring Cutter Tyre Bead Cutting Machine/Scrap Tire Bead Ring Sidewall Cutter Machine
product Introduction
This machine is utilized in separation among the tire crown, tire sidewall and bead of waste tire. Which is the first process of reclaiming waste tire.The final product is rubber powder or reclaimed rubber.
The unit consist of frame, rotate mechanism, porp mechanism and knife mechanism. its principle is that select the tire bead as a prop point and place it on porp mechanism, then adjust it to tightly. start the machine in low speed by slow down transmission part; knife is set on the machinery panel and it can be forward and back at ones ease. Meanwhile the tire rotating in low speed, the knife cut into the tire to cut open it successfully. In order to cut the tire even smoothly and cool the knife, you can from complete set the water pump to inject water to the cutting point.
Technical Parameters of Waste tire sidewall cutter tire cutting machine
| Model | Power(kw) | Revolving speed (time/min) | Fitted norm(mm) | Overall size(m) | Weight(kg) |
| 1200 | 2.2 | 15 | 650-1200 | 1*1*1.3 | 200 |
N
